| Aluminum Alloy | 6063-T5 Architectural Grade |
|---|---|
| Thermal Break | 24mm - 34mm PA66 GF25 Polyamide |
| U-Factor (NFRC 100) | 0.26 - 0.32 Btu/h·ft²·°F |
| Wind Load Resistance | DP50 - DP70 (ASTM E330)✓ ASTM E330 Certified (Certificate ID: QTM-2023-42-01 ) |
| Water Penetration | 720 Pa (15 psf) Minimum✓ ASTM E331 Certified (Certificate ID: QTM-2023-42-01 ) |
| Glazing Build-up | 5mm + 12Argon + 5mm + 12Argon + 5mm Low-E |
| Air Infiltration | ≤ 0.06 cfm/ft² @ 1.57 psf✓ ASTM E283 Certified (Certificate ID: QTM-2023-42-01 ) |
| Finish | AAMA 2604 Powder Coating - Black |
| Lead Time | 30 - 45 Days after CAD Approval |
SAINTY™ Aluminum Bi-Fold Doors
0.26 - 0.32 Btu/h·ft²·°F for Texas
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Aluminum Bi-Fold Doors: Architectural Specifications & NFRC & Energy Code Compliance
Aluminum Bi-Fold Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.26 - 0.32 Btu/h·ft²·°F compliance in Texas — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.26 - 0.32 Btu/h·ft²·°F
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft² @ 1.57 psf
- Design pressure (ASTM E330):
- DP50 - DP70 (ASTM E330)
- Water penetration (ASTM E547):
- 720 Pa (15 psf) Minimum
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- Texas
- Lead time:
- 30 - 45 Days after CAD Approval
The SAINTY™ Aluminum Bi-Fold Door system is engineered specifically for high-end residential applications such as Texas villas, where expansive openings must meet rigorous structural demands. These doors integrate heavy-duty 6063-T5 aluminum profiles with high-performance wind pressure resistance, ensuring stability during extreme weather events. With a sleek powder-coated black finish and advanced triple-pane insulated glazing, this system provides the thermal efficiency and architectural elegance required for modern open-concept living in the Southern United States.
100% Tracking — from Drawings to Site
SAINTY ensures unparalleled transparency for North American B2B partners through our proprietary 100% 11-step transparent order tracking system. From the moment CAD drawings are finalized, developers and contractors can access the SAINTY app to view real-time production milestones, QC inspection photos, and GPS-synced shipping logistics, eliminating the uncertainty typically associated with international sourcing.

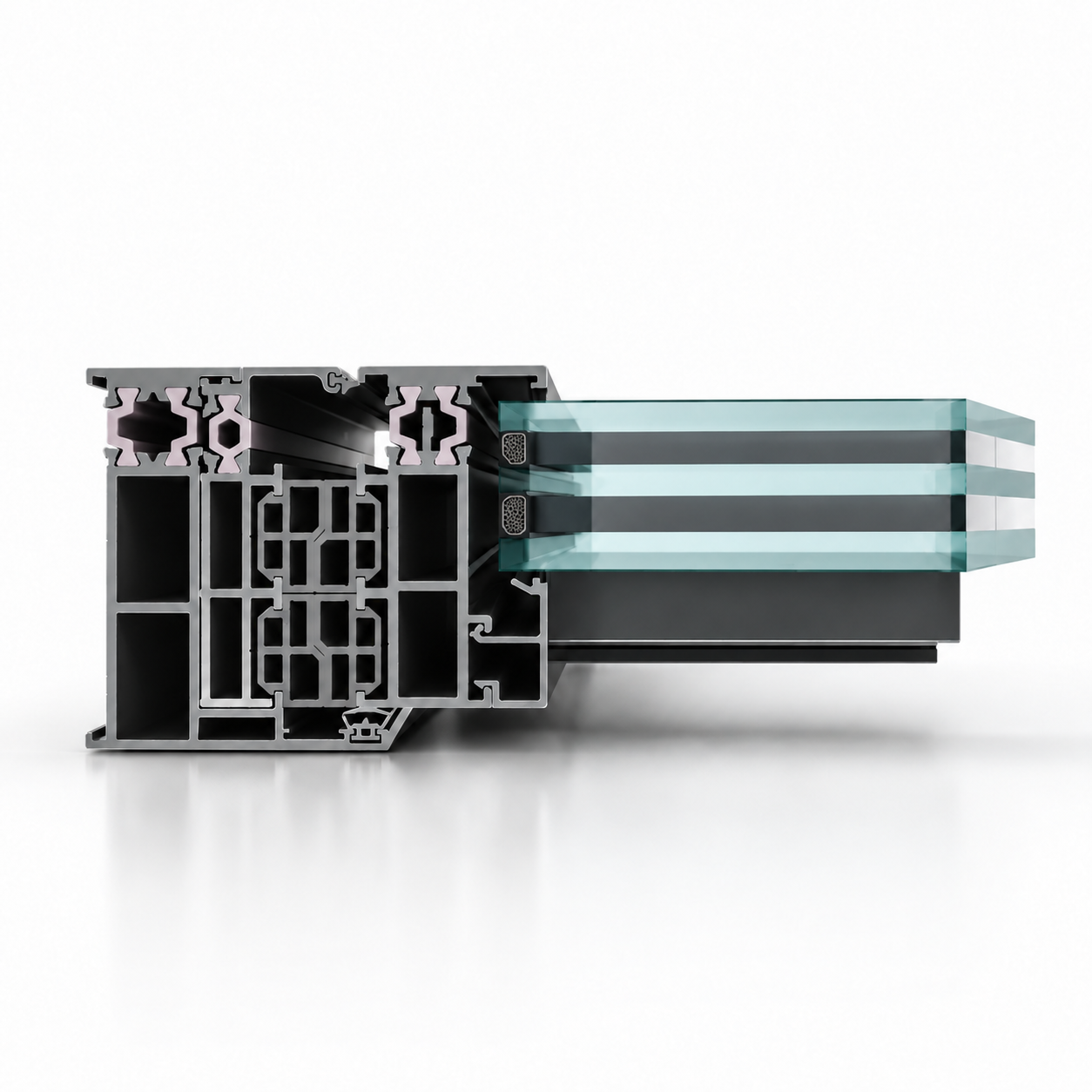

Our architectural-grade build quality is defined by precision-engineered PA66 GF25 thermal breaks and heavy-duty stainless steel hardware. Every unit undergoes rigorous factory testing to ensure long-term structural integrity and smooth operation, providing a reliable factory-direct solution that exceeds standard residential specifications.
10-Year WarrantyASTM
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Aluminum Bi-Fold Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Aluminum Bi-Fold Doors |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.26 - 0.32 Btu/h·ft²·°F |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² @ 1.57 psf |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- ASTM E283 Certified (Certificate ID: QTM-2023-42-01 )Download report (PDF)
- ASTM E331 Certified (Certificate ID: QTM-2023-42-01 )Download report (PDF)
- ASTM E330 Certified (Certificate ID: QTM-2023-42-01 )Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08

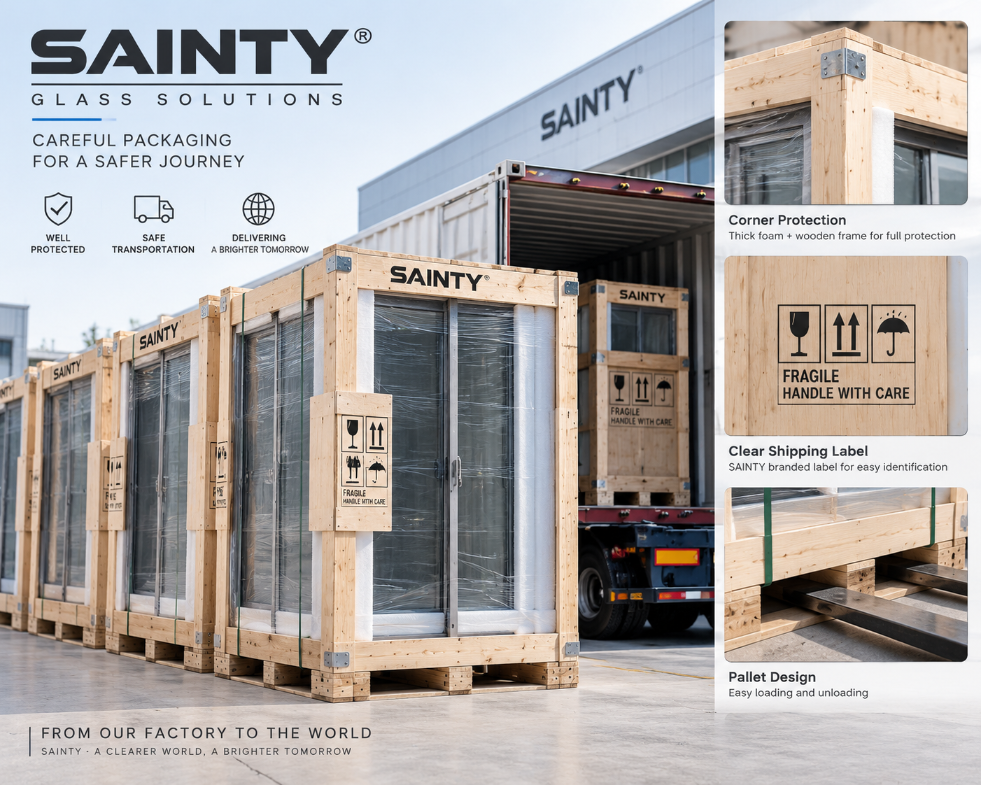

Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

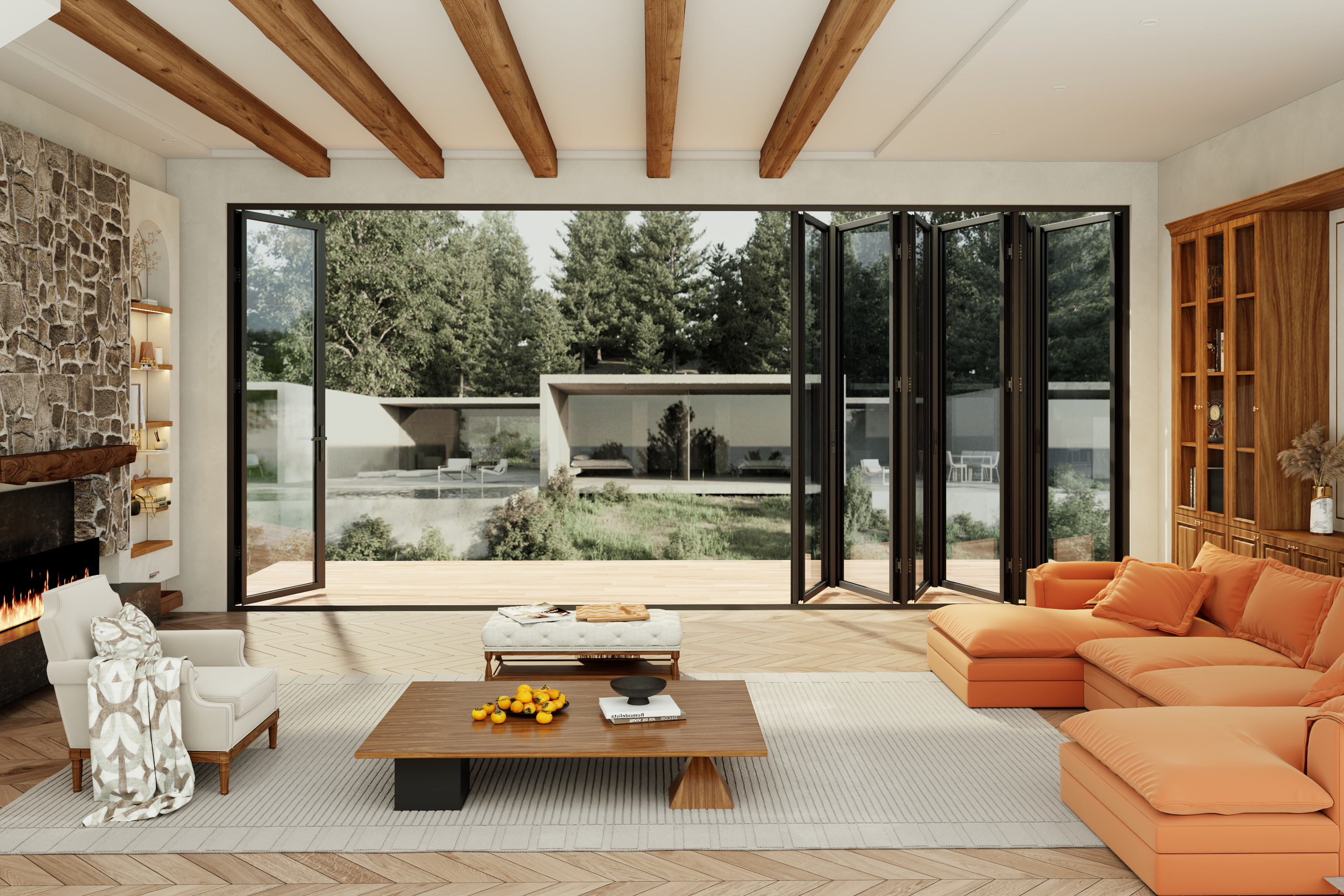

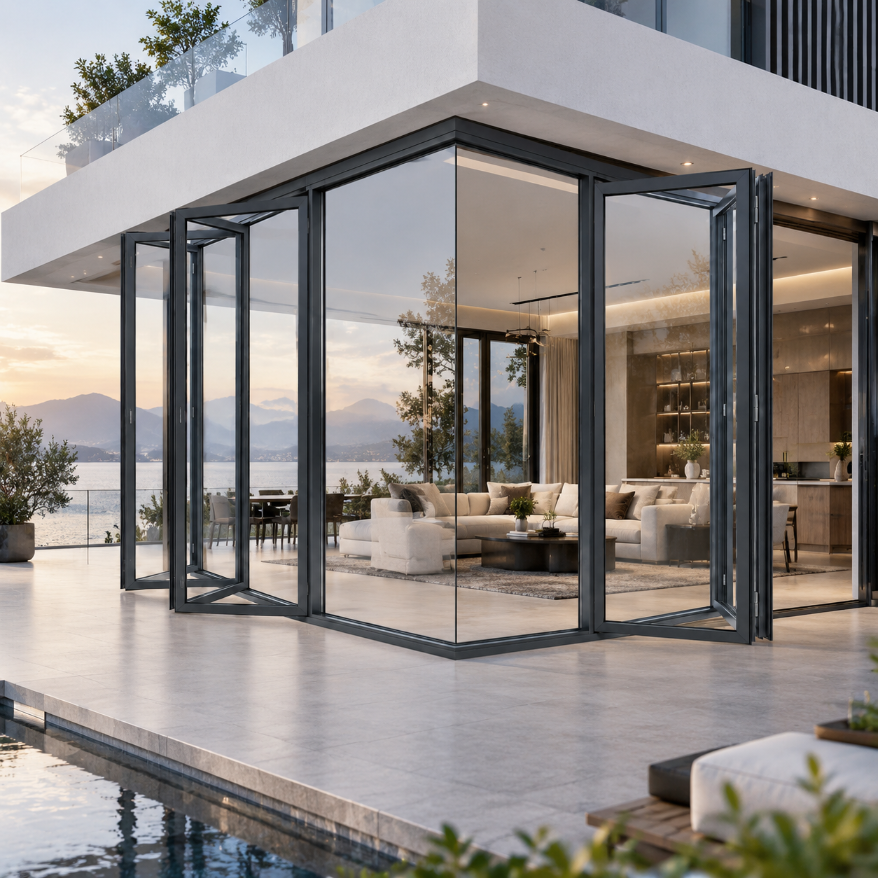

This gallery showcases real home installed project photos of SAINTY™ Aluminum Bi-Fold Doors, highlighting a specialized L-shaped configuration designed for modern villa applications in Texas. These units feature high-performance triple-pane insulated glass and a black powder coating finish to ensure superior wind pressure resistance and thermal efficiency. The corner-folding system creates a seamless transition between indoor and outdoor spaces, providing a panoramic view while maintaining structural integrity and meeting strict building energy standards.

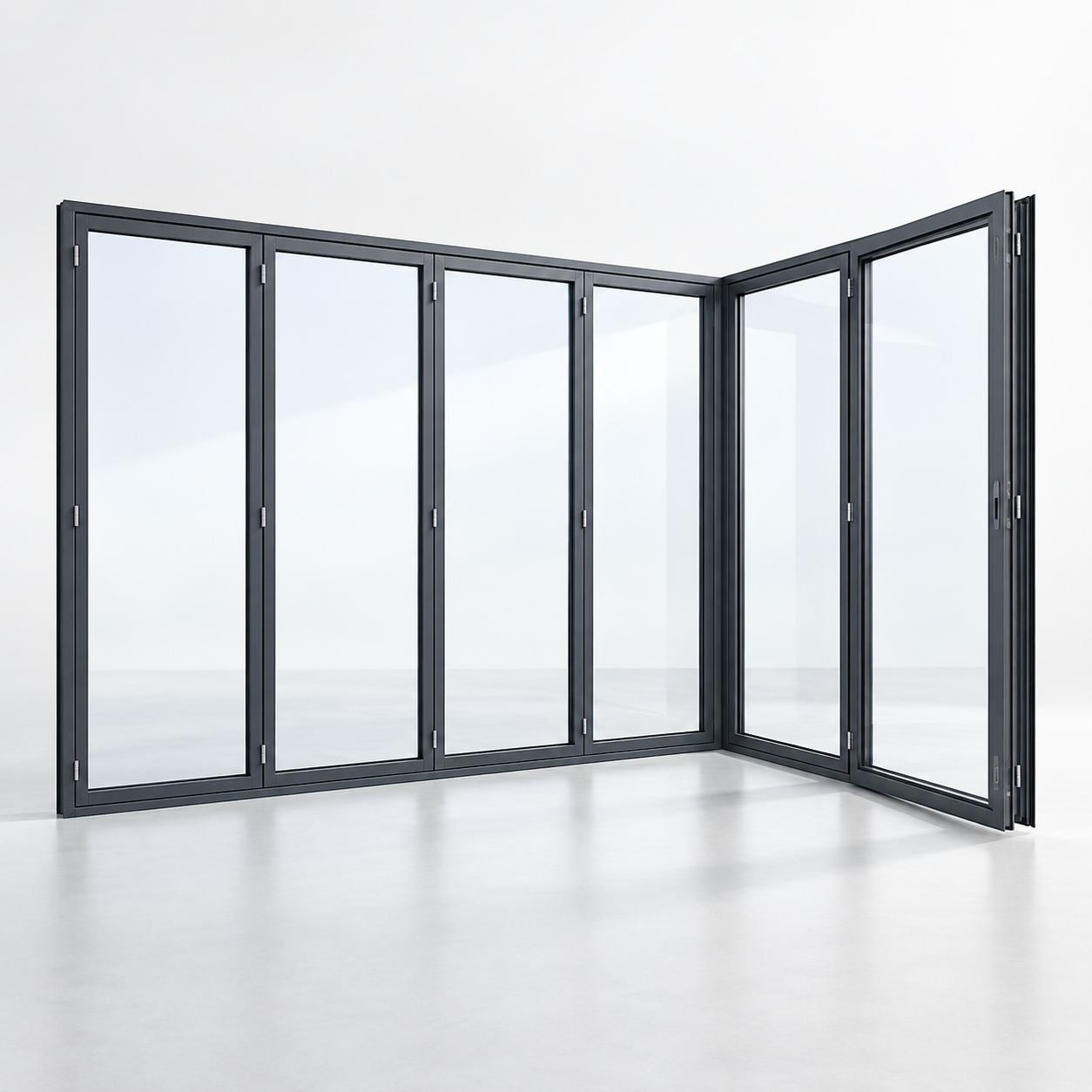

3D Design Renders
Live Test On Site
This gallery showcases live test footage and photos of SAINTY Aluminum Bi-Fold Doors filmed directly on the jobsite during the installation and commissioning process. These black powder-coated doors, featuring triple-pane insulated glass, are undergoing rigorous onsite water penetration and hardware functionality testing to ensure wind pressure resistance for villa applications in Texas. The clips demonstrate the smooth operation of the folding panels alongside integrated retractable flyscreens, verifying hardware adjustments and threshold sealing performance prior to final project completion.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Aluminum Bi-Fold Doors
SAINTY ASTM-Certified Aluminum Bi-Fold Doors are engineered for high-performance residential envelopes requiring superior wind pressure resistance and thermal isolation. These technical guidelines cover California Title 24 and Texas building code scenarios, including AAMA Standard Sill Flashing practices and Water Penetration Prevention testing up to 720 Pa. Critical steps detailed include Rough Opening Measurements, Shim Placement at load-bearing hinges, EPDM Gasket Sealing, and Multi-Point Lock Alignment. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY™ Aluminum Bi-Fold Doors Precision Installation and Wind Pressure Resistance
- Step-by-step assembly featuring frame positioning and track fixing to ensure DP70 wind load stability for Texas villa applications.

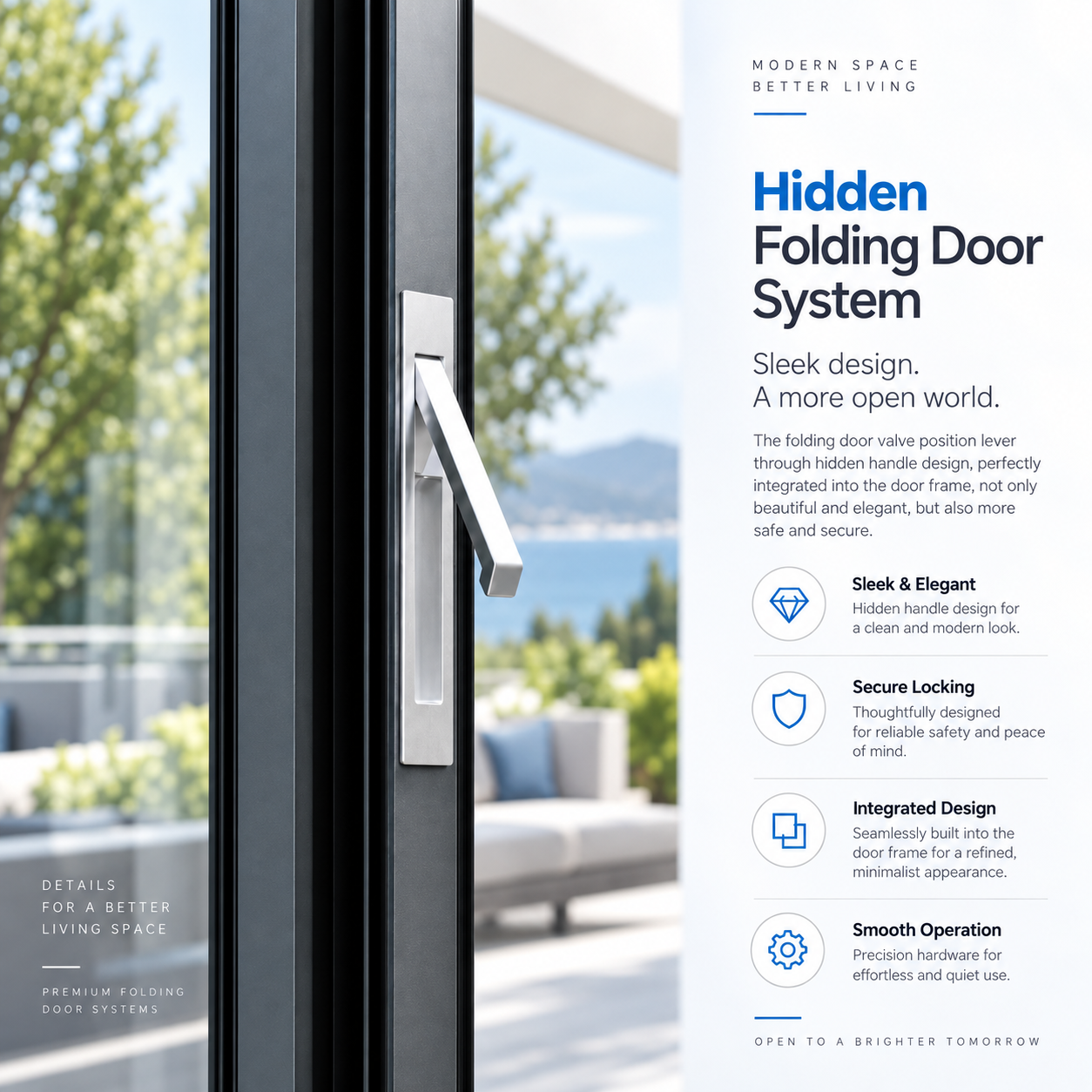

- Precision hardware adjustment of stainless steel grade 304 pulleys to guarantee smooth operation and a tight ASTM E283 compliant air seal.
- Final verification of triple-pane insulated glass alignment to achieve a U-Factor of 0.30 and maximum energy efficiency.
Key Moments: 00:00 – Measuring and Frame Positioning|00:45 – Track Installation and Door Leaf Mounting|01:20 – Hardware Adjustment and EPDM Gasket Sealing|02:10 – Final Operability and Performance Check
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
Successful installation of SAINTY Bi-Fold Doors requires precise rough opening measurements and a perfectly level structural header to support the heavy-duty track system. We recommend the ProSill™ integrated sill flashing method to ensure watertight integrity at the threshold, especially in slab-on-grade Texas villa constructions.
Installers must focus on shim placement at each hinge point and the primary locking jamb to prevent frame deflection. EPDM gasket sealing must be continuous at all panel intersections to meet the tested air infiltration rating of 0.06 cfm/ft².
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY provides a 10-Year Structural Warranty on all aluminum extrusions and a 5-Year Warranty on stainless steel hardware and EPDM seals. This coverage ensures compliance with ASTM performance standards and protects your investment against material defects or structural failure when installed according to SAINTY™ technical guidelines.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Are these bi-fold doors rated for high wind loads in Texas?
Yes, SAINTY Bi-Fold Doors are tested to ASTM E330 standards, achieving a Design Pressure rating of DP50 to DP70. This structural performance is critical for Texas coastal and inland regions prone to high wind pressure, ensuring the 6063-T5 aluminum frames and multi-point locking systems remain secure under extreme environmental stress.
What thermal performance can be expected with the triple-pane glazing?
SAINTY Bi-Fold Doors achieve a U-Factor as low as 0.28 Btu/h·ft²·°F when configured with our triple-pane insulated glass units (5mm+12A+5mm+12A+5mm). This configuration, rated per NFRC 100-2020, significantly reduces heat gain in the Texas climate while maintaining a Visible Transmittance (VT) between 0.40 and 0.55 for optimal natural lighting.
What type of threshold and hardware is used for large villa openings?
We utilize heavy-duty 304 stainless steel bottom-rolling hardware and specialized drainage thresholds to support the weight of wide-span panels. The hardware is tested to AAMA standards for cycle life, ensuring the multi-panel system operates smoothly without sagging, even at maximum opening widths typical of luxury villa designs.
Do SAINTY aluminum bi-fold doors comply with Texas energy code requirements?
Yes. SAINTY Aluminum Bi-Fold Doors units are fully compliant with Texas energy code requirements, achieving a certified U-Factor of 0.26 - 0.32 Btu/h·ft²·°F when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
How do SAINTY thermal break aluminum bi-fold doors compare to standard non-thermal aluminium windows in Texas?
Unlike non-thermal aluminium frames, which typically show U-factors above 0.50 Btu/h·ft²·°F, SAINTY uses a 24mm - 34mm PA66 GF25 Polyamide thermal break and Low-E insulated glazing to reach a certified U-Factor of 0.26 - 0.32 Btu/h·ft²·°F. That reduces conductive heat transfer and HVAC loads substantially while meeting NFRC 100-2020 and, where applicable, California Title 24 Part 6 requirements.
