| Thermal Insulation | U-Factor 0.28 (NFRC 100) |
|---|---|
| Solar Heat Gain | SHGC 0.22 |
| Acoustic Rating | STC 38 dB |
| Air Infiltration | 0.05 cfm/ft² (@ 1.57 psf) |
| Wind Load Resistance | DP50 (ASTM E330) |
| Aluminium Alloy | 6063-T5, 2.0mm thickness |

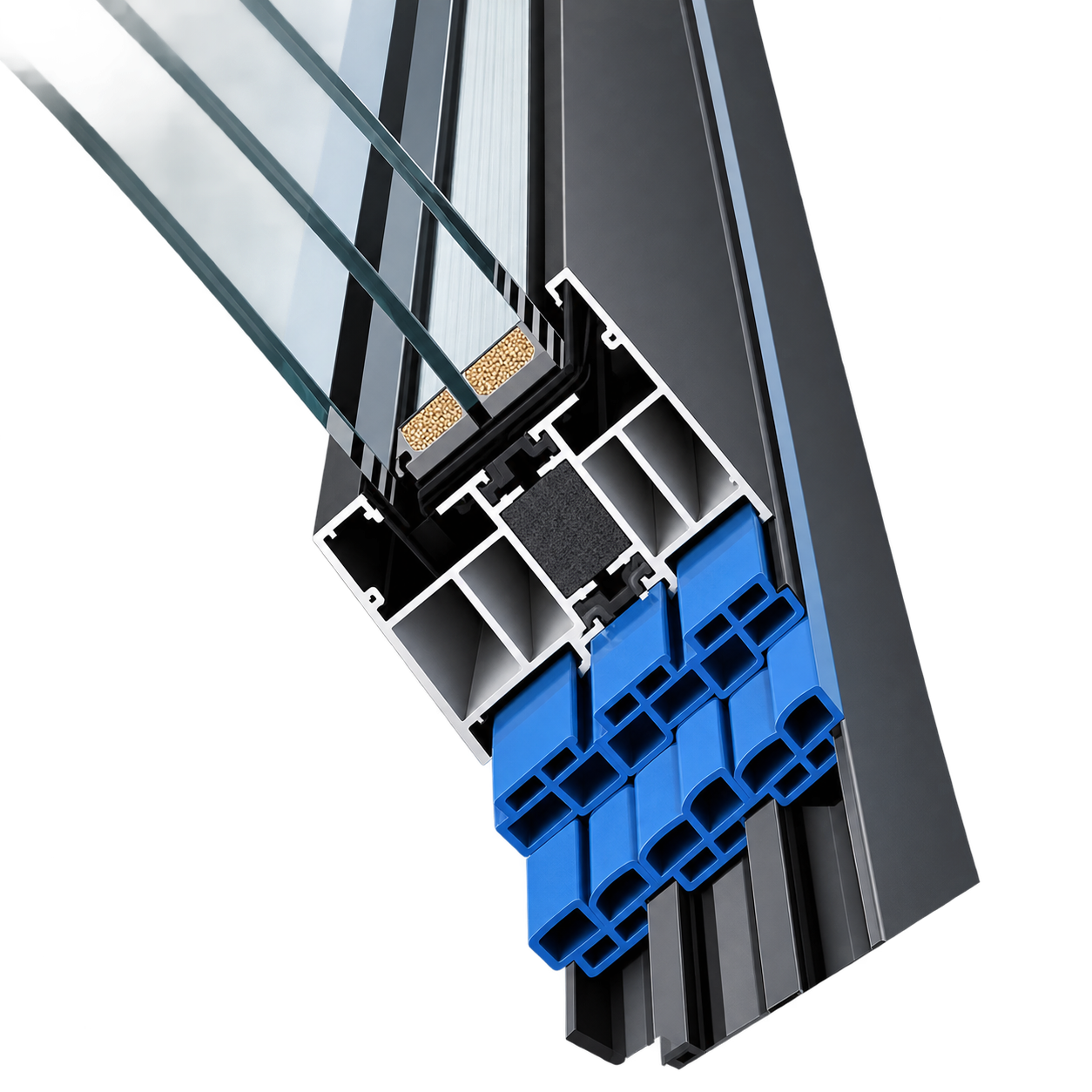

| Thermal Break | 24mm PA66 GF25 Polyamide |

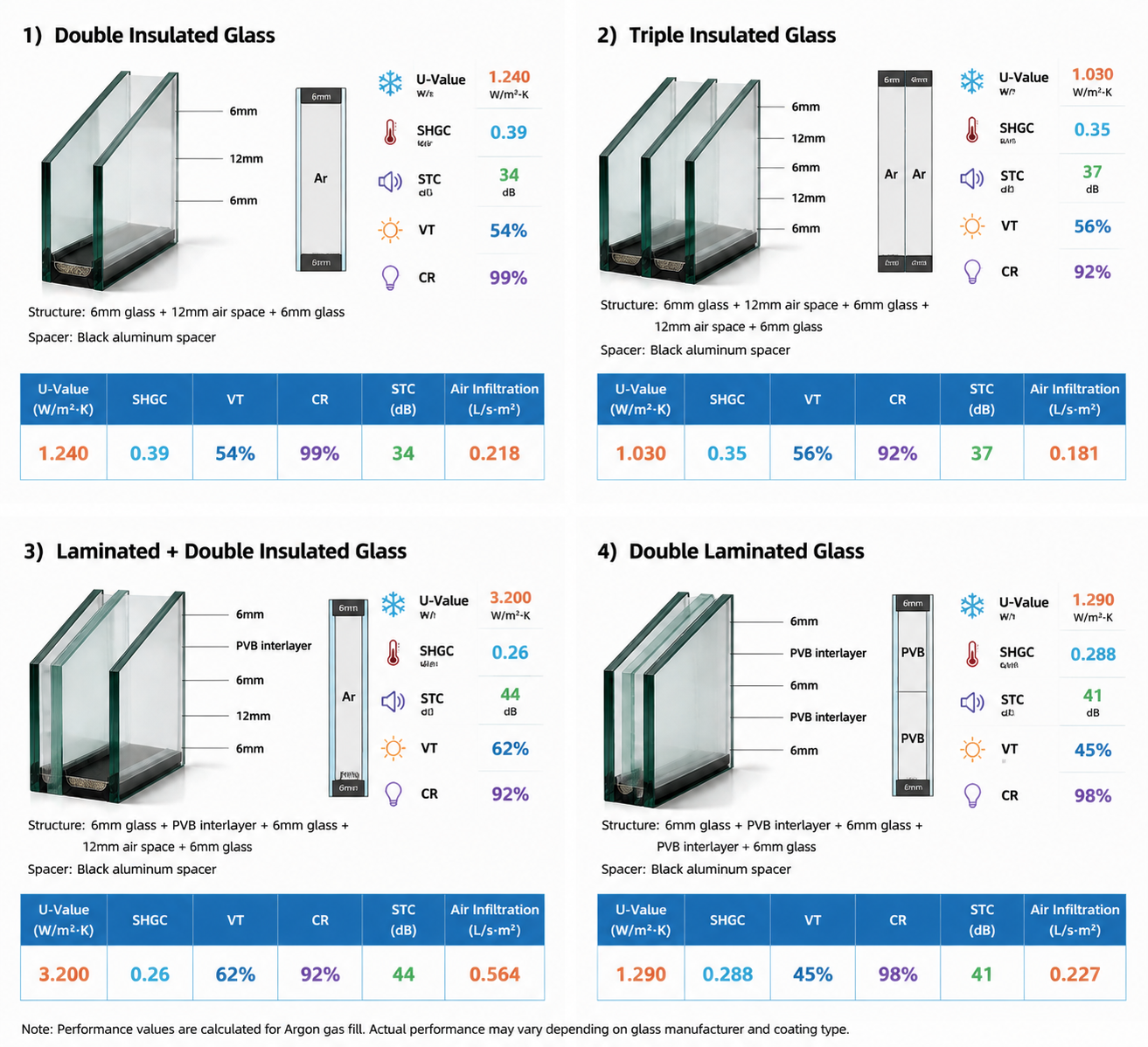

| Glazing Spec | 5mm Low-E + 12A + 5mm Clear (Argon Filled) |
| Lead Time | 35 Days (After CAD Approval) |
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
NFRC-rated performance data for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Energy Efficient Aluminum Bi-Fold Door: Architectural Specifications & NFRC & Energy Code Compliance
Energy Efficient Aluminum Bi-Fold Door is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- SHGC (NFRC 200):
- SHGC 0.22
- Air infiltration (ASTM E283):
- 0.05 cfm/ft² (@ 1.57 psf)
- Acoustic rating (ASTM E90):
- STC 38 dB
- Design pressure (ASTM E330):
- DP50 (ASTM E330)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- United States
- Lead time:
- 35 Days (After CAD Approval)

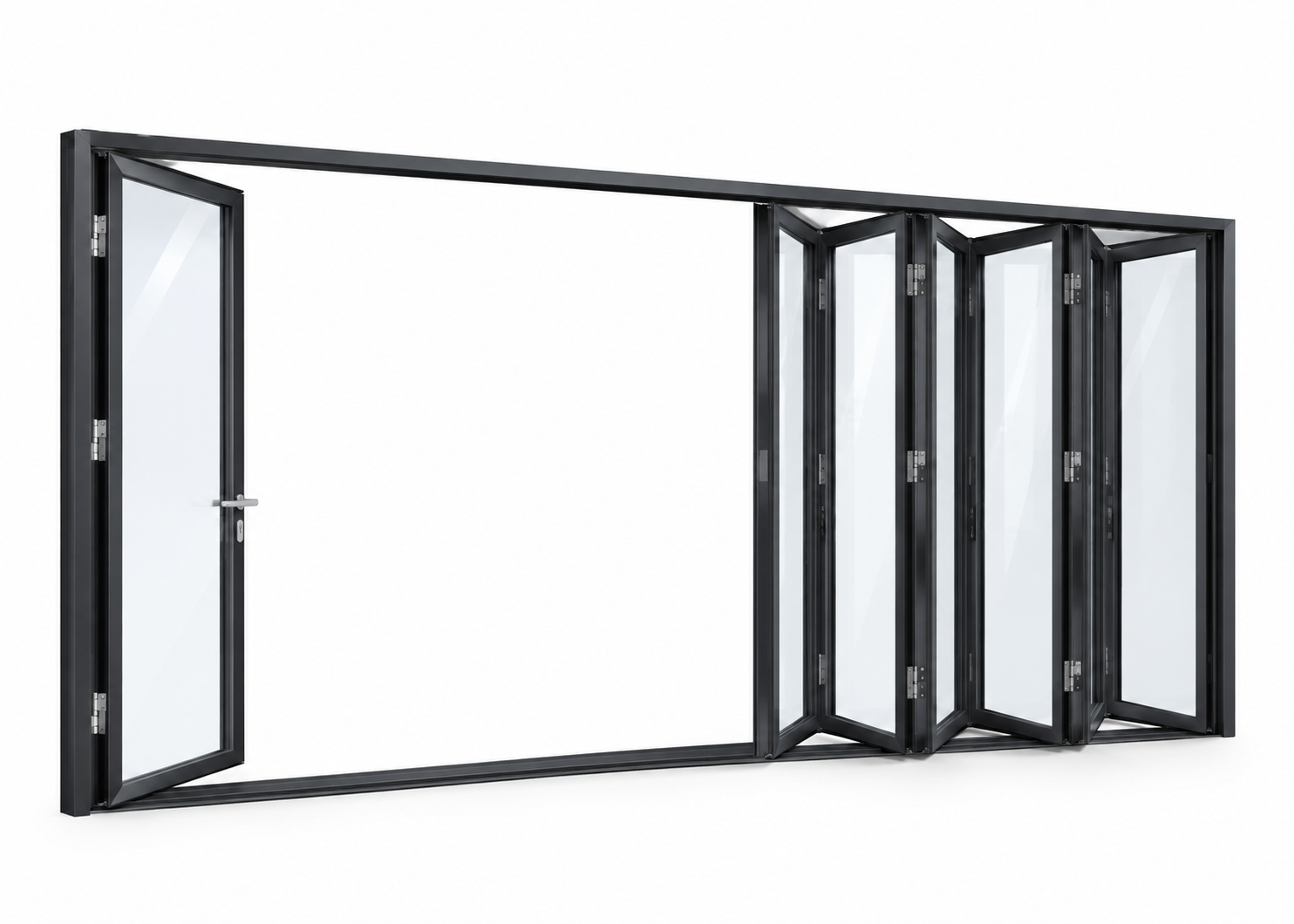

The SAINTY™ Energy Efficient Aluminum Bi-Fold Door offers a seamless transition between indoor and outdoor spaces for premium residential houses across the United States. Engineered with a 24mm PA66 GF25 thermal break and high-performance double-pane insulated glass, these doors meet rigorous energy codes while providing expansive views and structural integrity tested to DP50 standards. Our powder-coated black finish provides a modern aesthetic combined with architectural-grade durability for any US climate.
100% Tracking — from Drawings to Site

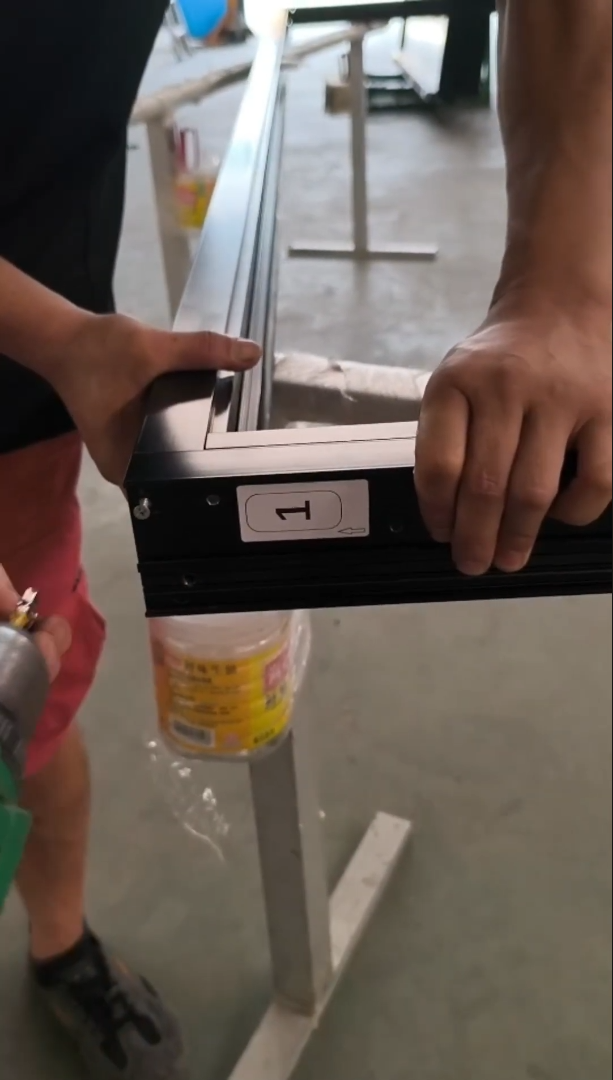

SAINTY™ ensures complete procurement confidence through our 100% 11-step transparent order tracking system. From the moment your CAD drawings are approved, you can utilize the SAINTY™ app to monitor every phase of production, including raw material sourcing, CNC precision cutting, and final assembly, with real-time visual updates and shipping status directly to your job site.
Our architectural-grade build quality utilizes 6063-T5 aluminum alloy, ensuring that every panel maintains structural rigidity over time. By eliminating the middleman, we provide factory-direct technical support and high-performance specifications typically reserved for custom luxury builds, now accessible for standard residential applications.
10-Year WarrantyNFRC
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Energy Efficient Aluminum Bi-Fold Door
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Energy Efficient Aluminum Bi-Fold Door |
|---|---|---|
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | SHGC 0.22 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.05 cfm/ft² (@ 1.57 psf) |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | STC 38 dB |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases

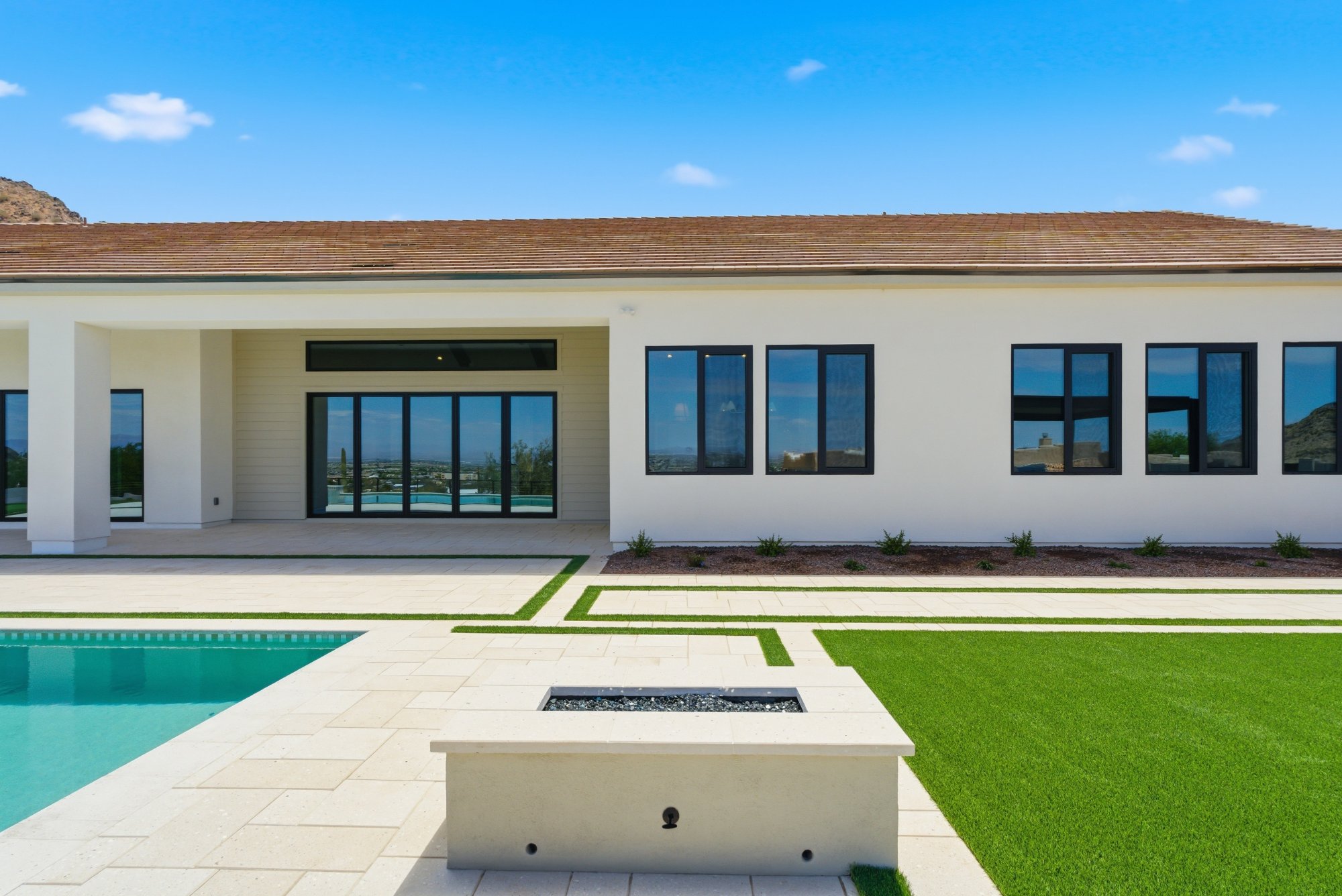

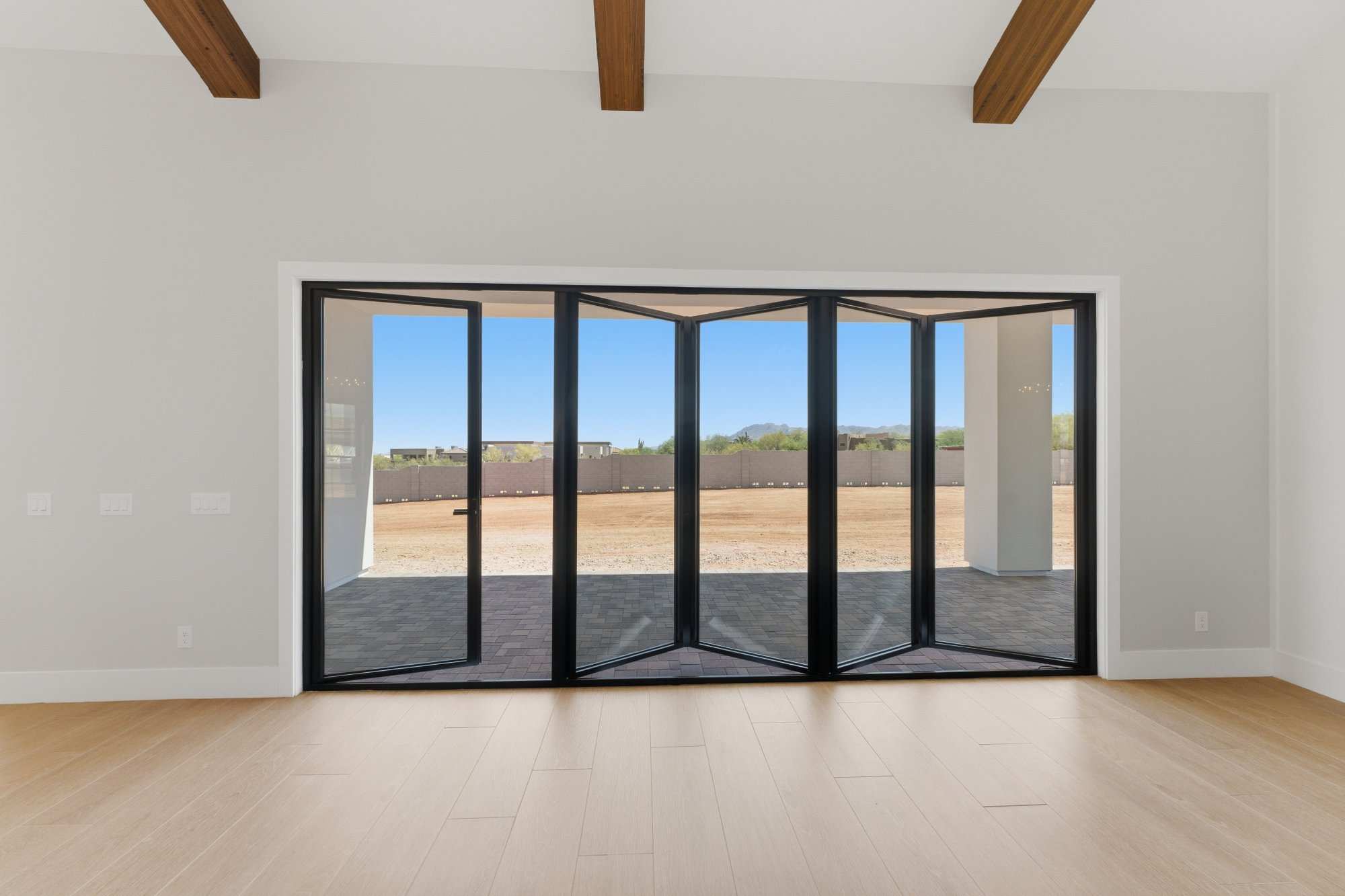

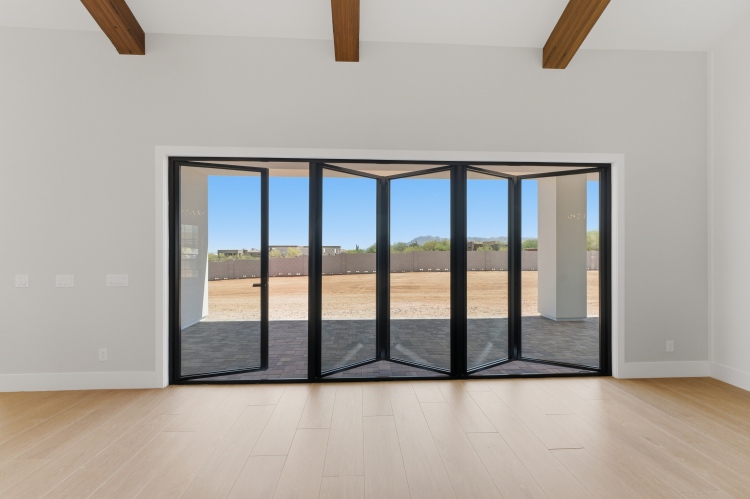

Real Home Projects
3D Design Renders
Drawings & Installation Manuals
Installation Manual — SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY NFRC-Certified Aluminum Bi-Fold Doors are designed to meet United States residential energy codes, including Title 24, with water penetration resistance tested to 720 Pa. The technical installation sequence requires precise Rough Opening Measurements, sill leveling, Shim Placement at hinge and jamb locations, EPDM Gasket Sealing, and final Multi-Point Lock Calibration to ensure airtight performance. This documentation provides full structural anchoring layouts and flashing details required for building inspections. Download the full PDF manual below before rough-in.
Installation Videos

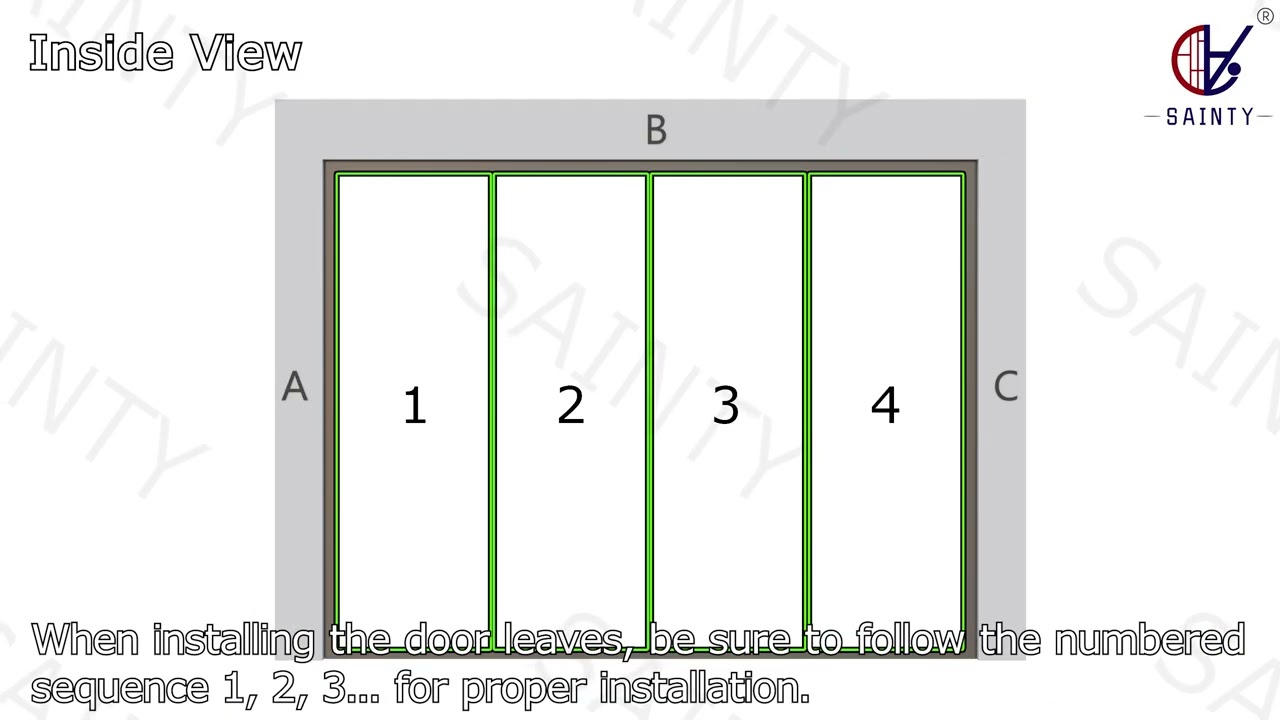

Watch: SAINTY™ Energy Efficient Aluminum Bi-Fold Door Precision Installation Guide
- Step-by-step assembly featuring NFRC-certified frame leveling and secure track mounting for DP70-rated wind resistance.

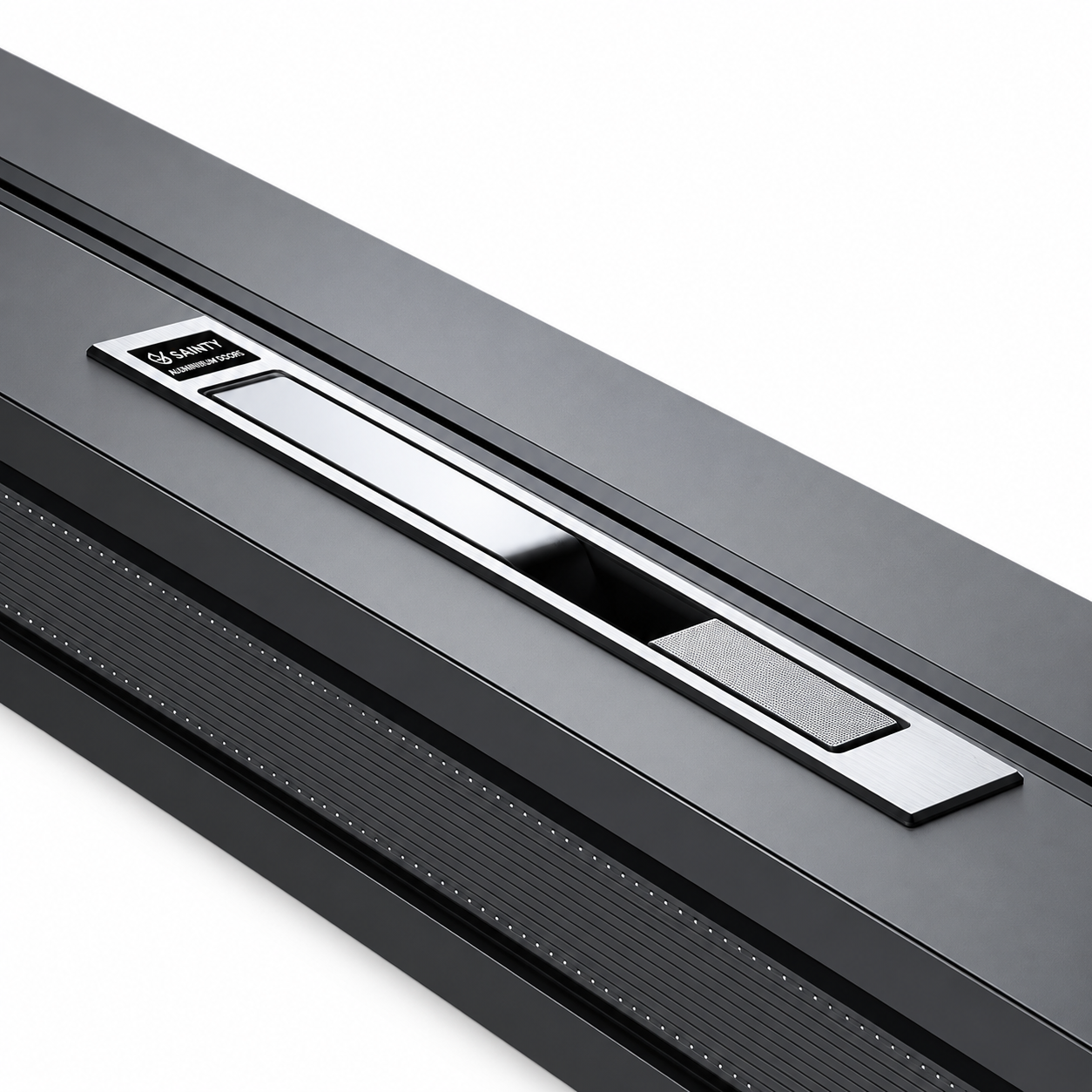

- Demonstration of 304 stainless steel hardware adjustment to ensure smooth operation and an airtight 0.06 cfm/ft² seal.
- Final quality inspection of the double-pane insulated glass and EPDM gaskets for maximum thermal performance in residential houses.
Key Moments: 00:00 – Measuring and Positioning the Sub-Frame|00:45 – Track Installation and Frame Securing|01:30 – Bi-Fold Panel Mounting and Hardware Tuning|02:15 – Final Seal Integrity and Operation Check
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
Installation of the SAINTY™ Bi-Fold Door requires precise leveling of the head track and sill to ensure smooth panel glide. We recommend following ProSill™ flashing standards to provide a continuous water barrier. The bottom-rolling system must be set on a perfectly flat substrate; use load-bearing shims at all hinge points and jamb fixings to prevent frame deflection.
Final calibration of the multi-point lock and handle interface should be performed after the EPDM gaskets have fully seated. Ensure that the weep holes in the sill remain unobstructed during the perimeter sealing process to maintain the 720 Pa water penetration rating.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
- NFRC
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-year structural warranty on all 6063-T5 aluminum extrusions and a 5-year warranty on all SS304 stainless steel hardware components. This coverage is backed by our NFRC certification and AAMA 2604 powder coating standards, ensuring long-term performance in residential environments throughout the United States.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What thermal performance ratings does this bi-fold door achieve for US building codes?
This system achieves a U-Factor of 0.28 Btu/h·ft²·°F and an SHGC of 0.22, as rated per NFRC 100-2020. These metrics ensure compliance with the most stringent energy efficiency requirements in the United States, utilizing double-pane 5mm+12A+5mm Low-E insulated glass units to minimize thermal transfer and reduce HVAC loads.
How does the door perform against high winds and water penetration?
The SAINTY™ Bi-Fold Door is tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards, achieving a Design Pressure rating of DP50 and water penetration resistance of 720 Pa (15 psf). The heavy-duty 6063-T5 aluminum frames and multi-point locking hardware ensure the system remains air-tight and structurally sound during severe weather events.
What type of maintenance is required for the track and hardware system?
Maintenance is minimal due to the use of SS304 stainless steel grade hardware and a precision-engineered bottom-rolling track. We recommend a semi-annual inspection of the EPDM gaskets and cleaning the bottom track of debris to ensure the smooth operation of the multi-panel folding mechanism and to maintain the 5-year hardware warranty coverage.
Do SAINTY energy efficient aluminum bi-fold doors comply with United States energy code requirements?
Yes. SAINTY Energy Efficient Aluminum Bi-Fold Door units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.30 and an SHGC of SHGC 0.22 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
