| U-Factor | 0.20 – 0.32 Btu/h·ft²·°F (NFRC 100) |
|---|---|
| Solar Heat Gain Coefficient (SHGC) | ≤ 0.23 |
| Design Pressure (Wind Load) | DP30 – DP70 (ASTM E330)✓ TAS 202(Structural only) Certified (Certificate ID: FL48013) |
| Water Resistance | 720 Pa / 15 psf (ASTM E331) |
| Air Infiltration | ≤ 0.06 cfm/ft² (@ 1.57 psf) |
| Acoustic Rating | 32 – 42 STC |

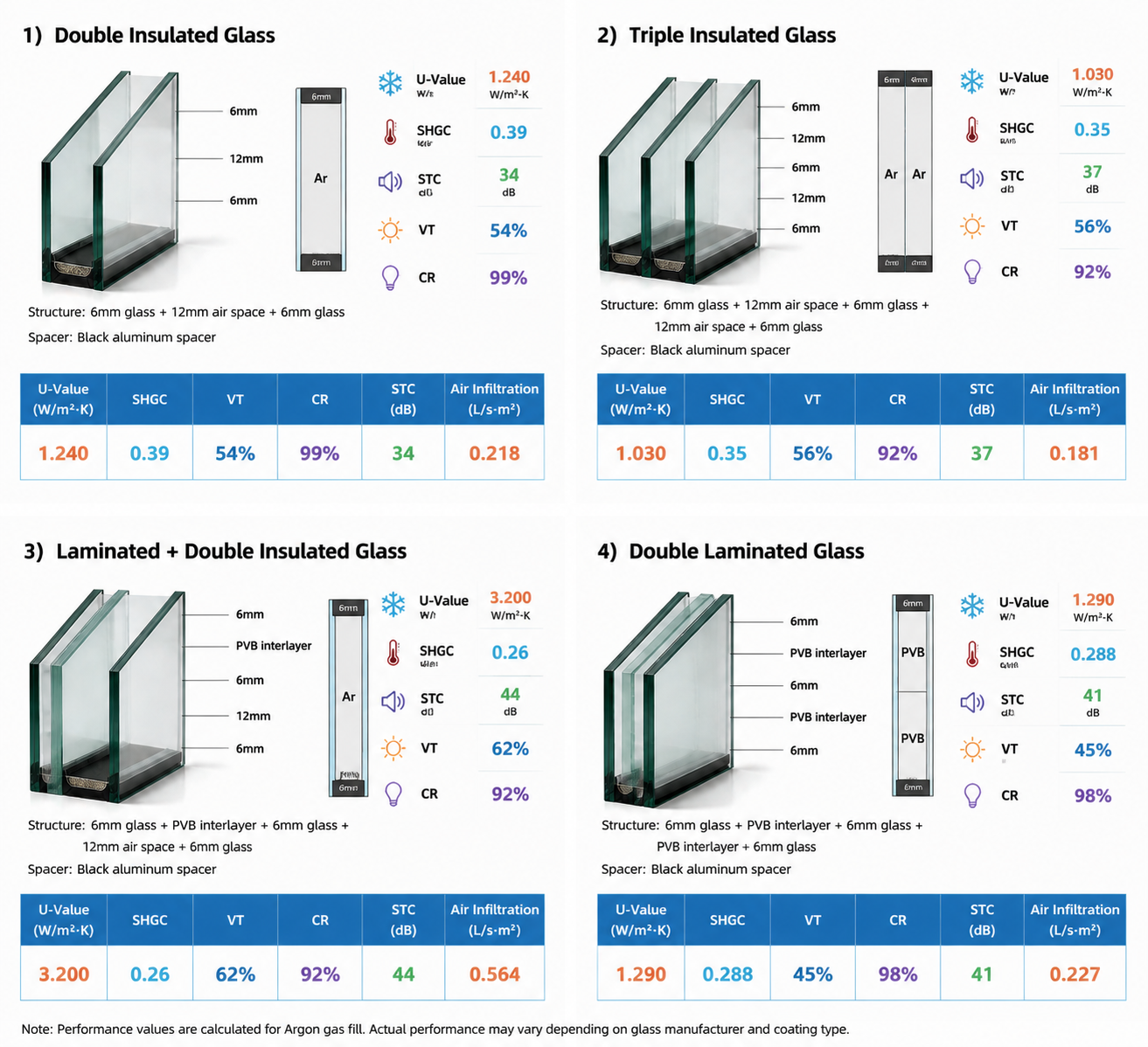

| Glazing Build-up | 6mm Low-E + 12A + 6mm Tempered (Argon Filled) |
| Alloy & Thermal Break | 6063-T5 / 24-34mm PA66 GF25 |
| Lead Time | 25–45 Days (Post-CAD Approval) |
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
NFRC-rated performance data for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Hurricane-Rated Aluminum Bi-Fold Door: Architectural Specifications & NFRC & Energy Code Compliance
Hurricane-Rated Aluminum Bi-Fold Door is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.20 – 0.32 Btu/h·ft²·°F (NFRC 100)
- SHGC (NFRC 200):
- ≤ 0.23
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft² (@ 1.57 psf)
- Acoustic rating (ASTM E90):
- 32 – 42 STC
- Design pressure (ASTM E330):
- DP30 – DP70 (ASTM E330)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- United States

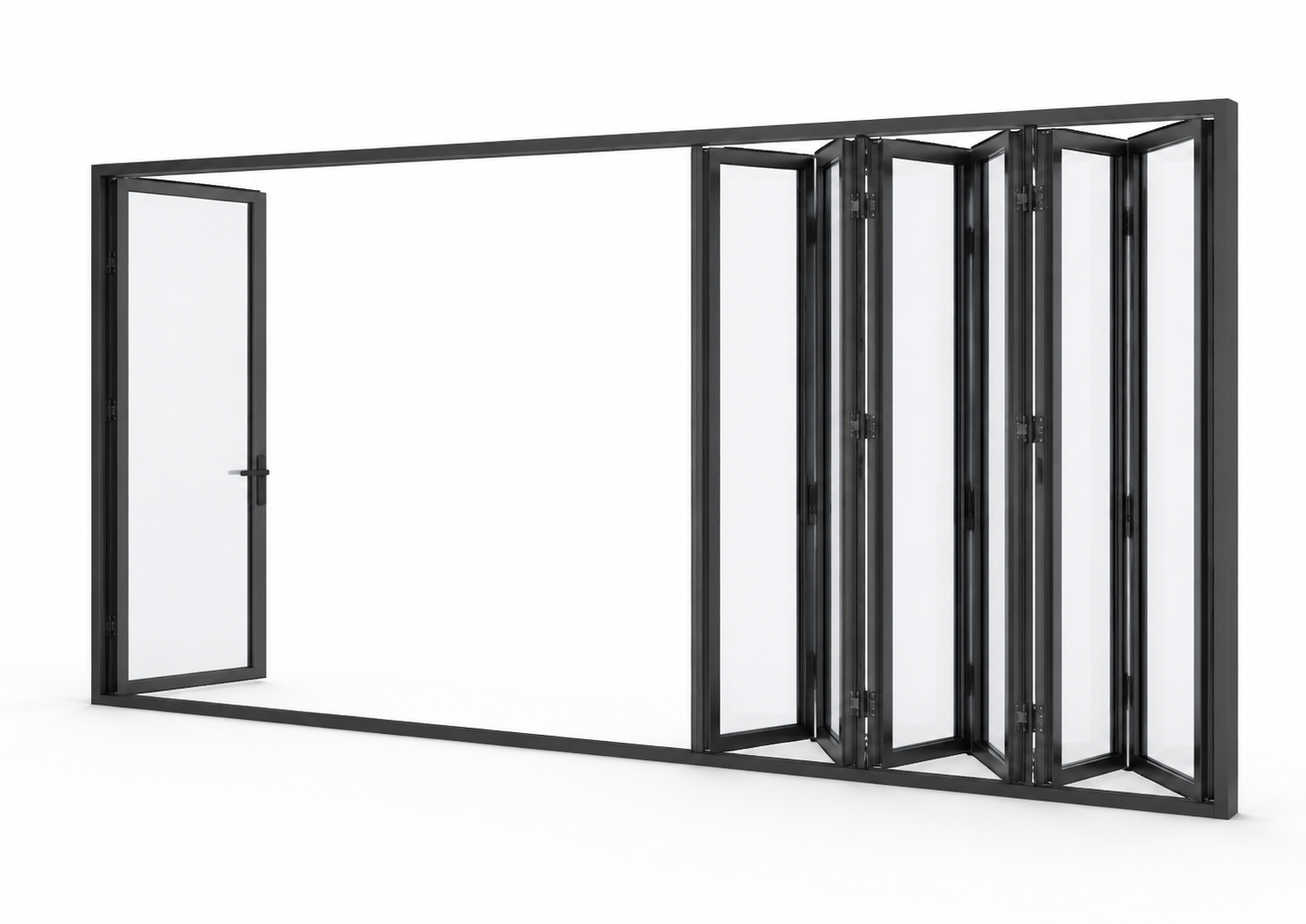

The SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door offers a seamless transition between indoor and outdoor spaces while providing robust protection for residential houses throughout the United States. Engineered for high-velocity hurricane zones, this system combines a heavy-duty 6063-T5 aluminum frame with high-performance double-pane insulated glass. Designed to meet stringent AAMA standards, these doors provide superior structural integrity, energy efficiency, and thermal insulation for modern American architectural projects.
100% Tracking — from Drawings to Site
SAINTY ensures complete peace of mind through our 100% 11-step transparent order tracking system. From the moment CAD shop drawings are approved, clients can utilize the SAINTY app to access real-time visual tracking of their production pipeline, including live factory photos of frame extrusion, powder coating, and assembly.

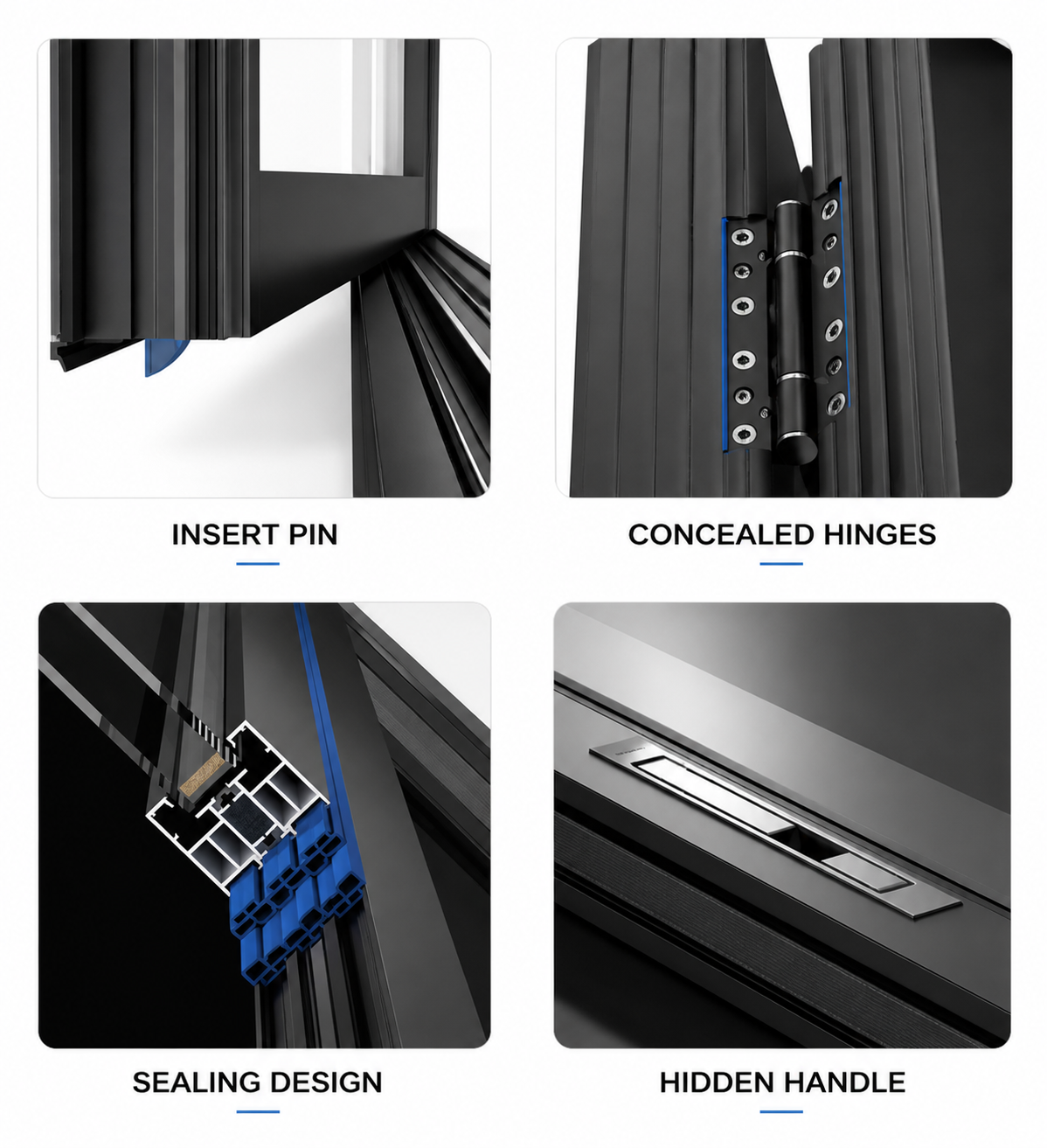

Our architectural-grade build quality is defined by precision engineering. Each bi-fold unit features heavy-duty PA66 GF25 thermal breaks and high-grade SS304 hardware, ensuring long-term operational reliability. This commitment to transparency and technical excellence guarantees that every door arrives at your jobsite meeting the exact performance specifications required for your US-based project.
10-Year WarrantyAAMA
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Door
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Doors
SAINTY™ Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Sliding Doors
SAINTY™ Powder Coated Aluminum Casement Windows
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Hurricane-Rated Aluminum Bi-Fold Door
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Hurricane-Rated Aluminum Bi-Fold Door |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.20 – 0.32 Btu/h·ft²·°F (NFRC 100) |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | ≤ 0.23 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² (@ 1.57 psf) |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | 32 – 42 STC |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases

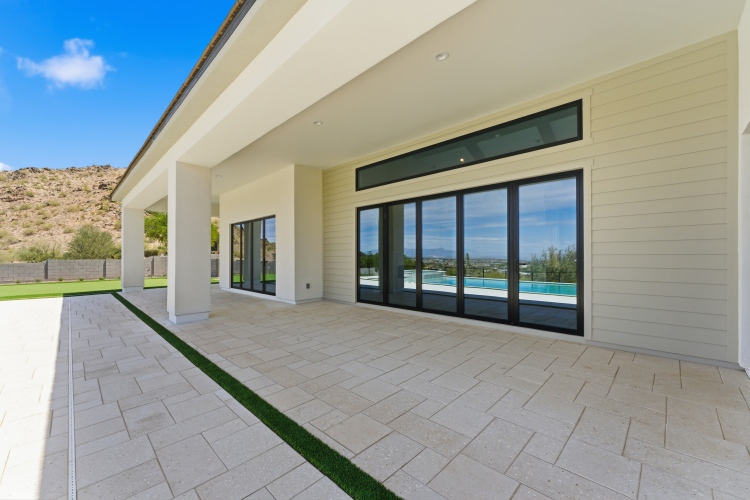

Real Home Projects
3D Design Renders
Drawings & Installation Manuals
Installation Manual — SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
SAINTY Hurricane-Rated Aluminum Bi-Fold Doors are engineered to meet strict AAMA structural standards and United States residential building codes, including high-velocity wind load requirements. This technical guide covers Rough Opening Measurements, Shim Placement at head track and jambs, EPDM Gasket Sealing, and Multi-Point Lock Calibration to ensure water penetration resistance at 720 Pa. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door Precision Installation Guide
- Step-by-step assembly featuring frame positioning and heavy-duty track mounting for DP70-rated stability.

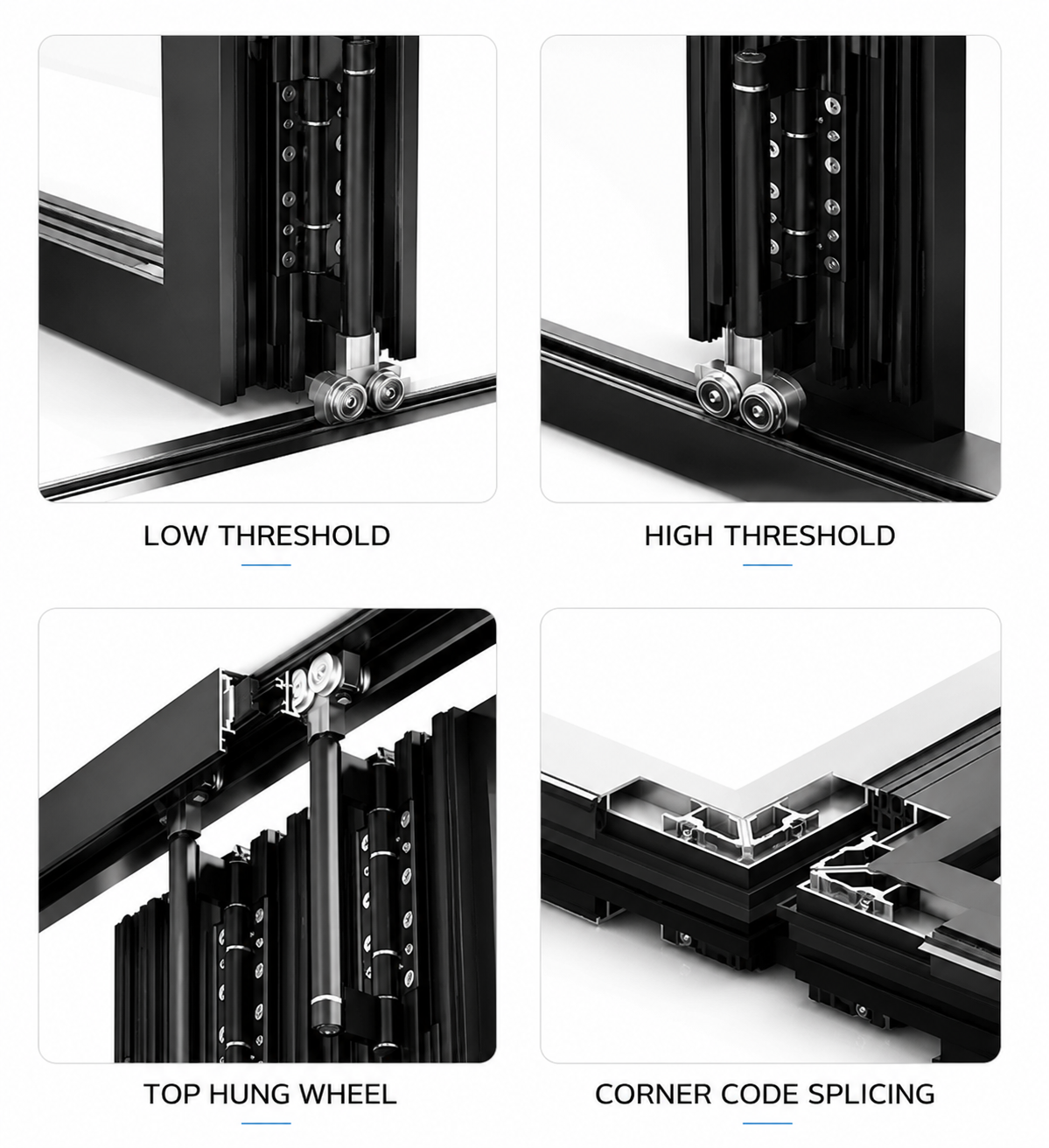

- Detailed adjustment of grade 304 stainless steel hardware and rollers to ensure smooth operation for high-traffic residential use.
- Final inspection of EPDM gasket compression and weather-stripping to meet strict 720 Pa water penetration standards.
Key Moments: 00:00 – Frame Measurement and Positioning|00:45 – Track and Panel Assembly|01:30 – Hardware and Roller Calibration|02:15 – Seal Integrity and Performance Test
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
The ProSill™ installation method for SAINTY bi-fold doors requires precise rough opening measurements and a perfectly level sill substrate to ensure smooth folding operation. Installers must prioritize the placement of shims at both the jambs and the head track to maintain a square frame, preventing binding of the heavy-duty rollers over time.
Critical waterproofing involves the application of AAMA-compliant sill flashing and continuous beads of high-performance sealant at all frame joints. We recommend a multi-point lock calibration after the final glazing installation to account for structural settling and to ensure the EPDM gaskets achieve a full airtight seal against the frame.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY provides a 10-Year Structural Warranty on all hurricane-rated aluminum frames and a 5-year warranty on SS304 hardware components, covering defects in materials and workmanship when installed according to AAMA 2604/2605 standards.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What wind load and structural ratings do these bi-fold doors achieve?
SAINTY Hurricane-Rated Bi-Fold Doors are tested to achieve a Design Pressure (DP) rating of up to DP70 in accordance with ASTM E330 standards. This high-strength performance is achieved through 6063-T5 aluminum profiles and reinforced stainless steel multi-point locking systems, making them suitable for coastal regions where high-velocity wind loads and debris impact protection are critical requirements.
Are these doors compliant with US energy codes and NFRC standards?
Yes, our bi-fold doors are rated per NFRC 100-2020 and achieve U-Factors between 0.20 and 0.32 Btu/h·ft²·°F. By utilizing a 24mm to 34mm PA66 GF25 polyamide thermal break and double-pane insulated glass with Low-E coatings, these units maintain a SHGC of 0.23 or lower, ensuring compliance with most residential energy codes across the United States.
How is water penetration prevented in heavy storm conditions?
SAINTY bi-fold systems are engineered to resist water penetration at a minimum test pressure of 720 Pa (15 psf). The design incorporates multi-layered EPDM gaskets and a specialized sill drainage system that channels water away from the interior, preventing leaks even during the sustained wind-driven rain typical of North American hurricane seasons.
Do SAINTY hurricane-rated aluminum bi-fold doors comply with United States energy code requirements?
Yes. SAINTY Hurricane-Rated Aluminum Bi-Fold Door units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.20 – 0.32 Btu/h·ft²·°F (NFRC 100) and an SHGC of ≤ 0.23 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
