| U-Factor (NFRC 100) | 0.28 Btu/h·ft²·°F |
|---|---|
| Solar Heat Gain Coefficient (SHGC) | 0.21 |
| Design Pressure (ASTM E330) | DP50 - DP70 |
| Air Infiltration (ASTM E283) | ≤ 0.06 cfm/ft²✓ ASTM E283 Certified (Certificate ID: QTM-2023-42-01) |
| Water Penetration Resistance | 720 Pa (15 psf)✓ ASTM E331 Certified (Certificate ID: QTM-2023-42-01) |
| Aluminium Alloy & Thermal Break | 6063-T5 / 34mm PA66 GF25 |
| Glazing Build-up | 6mm Low-E + 12A + 6mm Tempered |
| Finish | Black Powder Coating (AAMA 2605) |
| Lead Time | 25-45 Days |
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
0.28 Btu/h·ft²·°F for Arizona
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Solar Heat Control Aluminum Bi-Fold Doors: Architectural Specifications & NFRC & Energy Code Compliance
Solar Heat Control Aluminum Bi-Fold Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.28 Btu/h·ft²·°F compliance in Arizona — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.28 Btu/h·ft²·°F
- SHGC (NFRC 200):
- 0.21
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft²
- Design pressure (ASTM E330):
- DP50 - DP70
- Water penetration (ASTM E547):
- 720 Pa (15 psf)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- Arizona
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors are engineered for the extreme thermal demands of tropical and desert regions in Arizona. These high-performance folding systems combine 6063-T5 architectural aluminum with advanced Low-E insulated glazing to mitigate intense solar gain while providing expansive indoor-outdoor transitions for residential and commercial applications.
100% Tracking — from Drawings to Site
SAINTY ensures total project accountability through our 100% 11-step transparent order tracking system. From the moment CAD shop drawings are finalized, B2B buyers can access the SAINTY app to view real-time visual progress of extrusion, powder coating, and assembly, eliminating the traditional blind spots of international procurement.
Our architectural-grade build quality utilizes PA66 GF25 thermal breaks and AAMA 2605 compliant powder coating. This ensures that every unit shipped to Arizona maintains its structural integrity and finish against high UV exposure, backed by a manufacturing pipeline that emphasizes precision and visual verification at every stage.
10-Year WarrantyASTM
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Solar Heat Control Aluminum Bi-Fold Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Solar Heat Control Aluminum Bi-Fold Doors |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.28 Btu/h·ft²·°F |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.21 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- ASTM E283 Certified (Certificate ID: QTM-2023-42-01)Download report (PDF)
- ASTM E300 Certified (Certificate ID: QTM-2023-42-01)Download report (PDF)
- ASTM E331 Certified (Certificate ID: QTM-2023-42-01)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

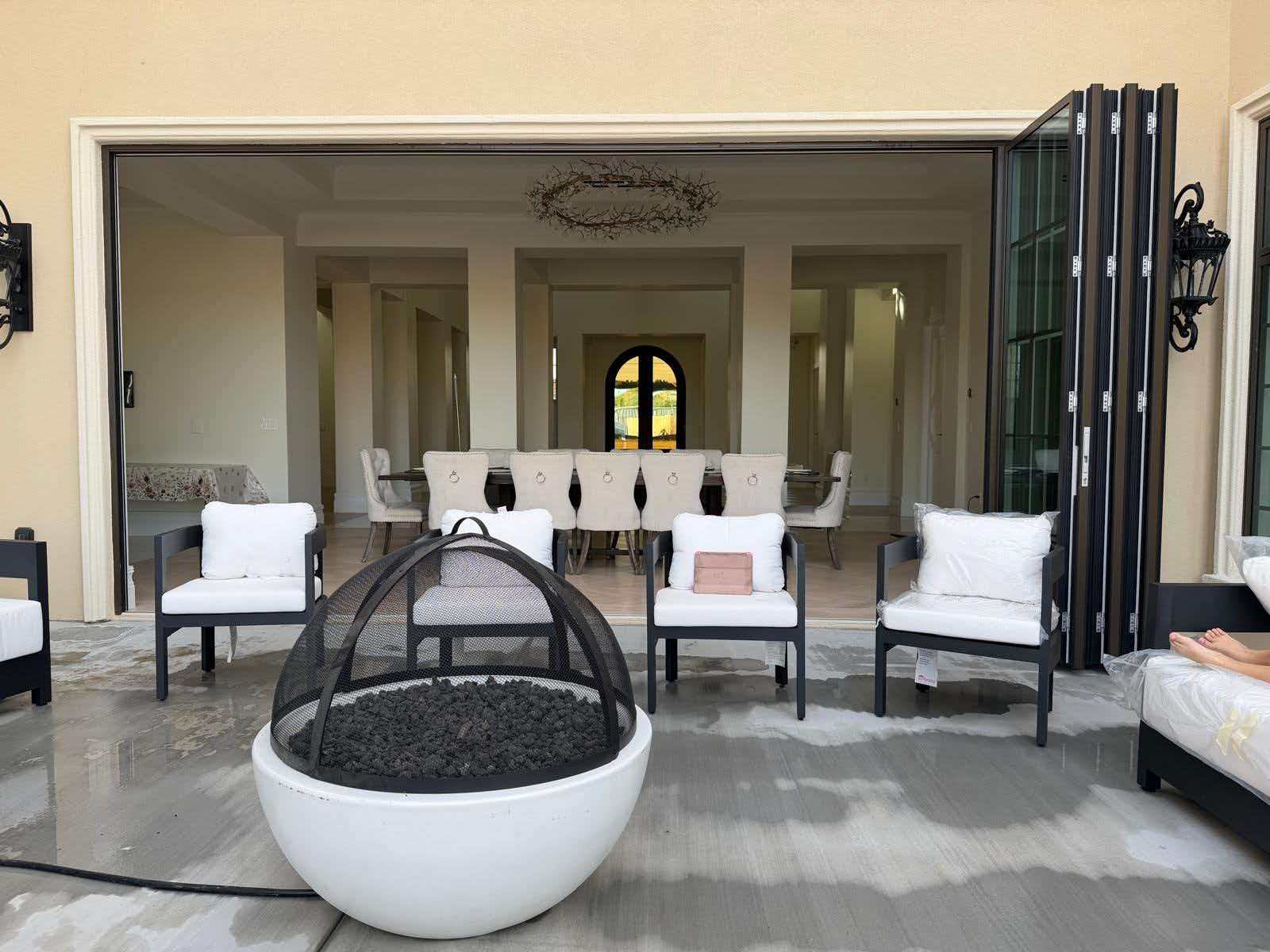

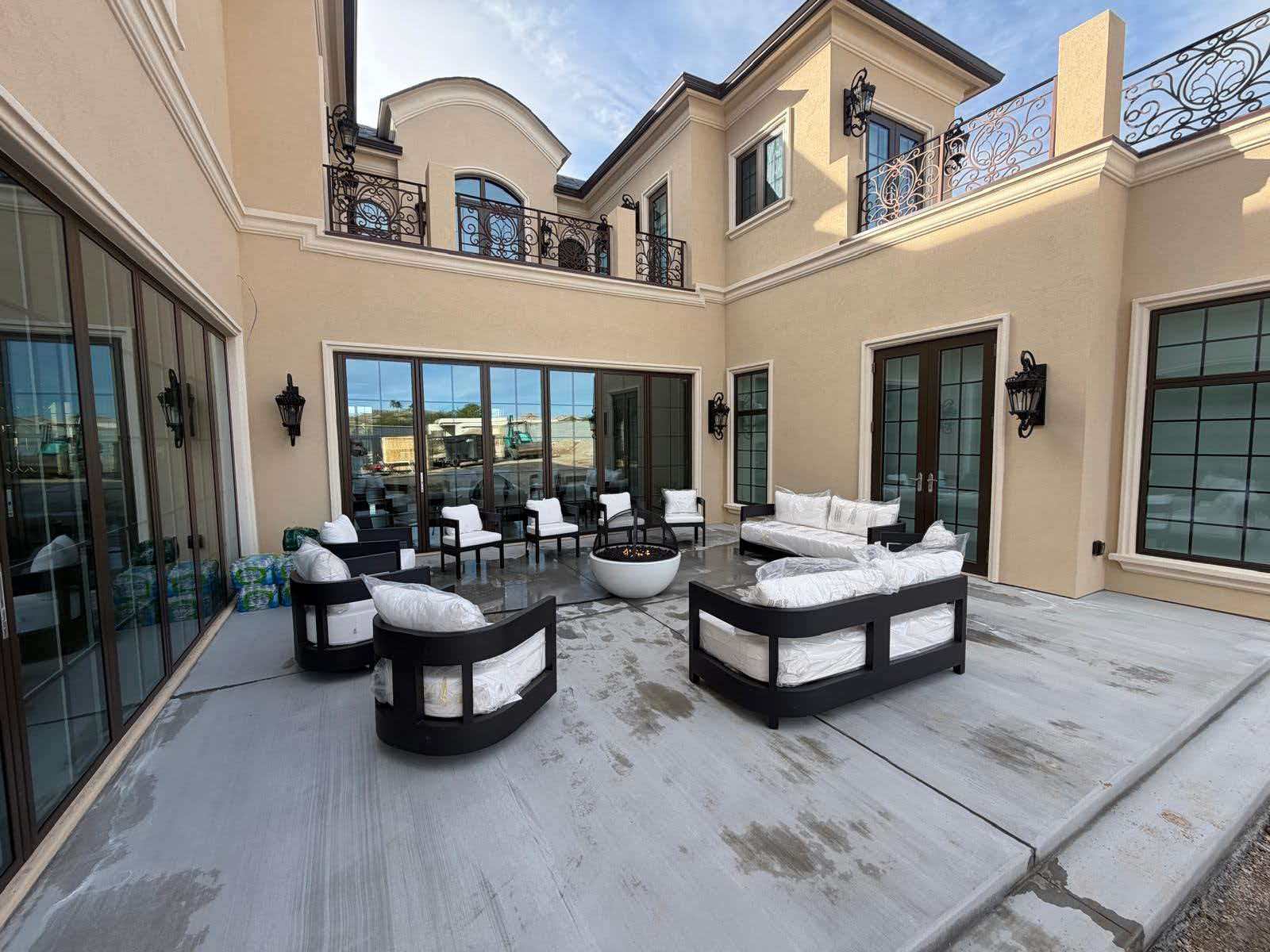

This gallery showcases real home installed project photos of SAINTY Solar Heat Control Aluminum Bi-Fold Doors, highlighting their premium performance in the demanding climate of Arizona. Featuring powder-coated black frames and Low-E insulated glass, these folding doors achieve a perfect balance between thermal insulation and panoramic ventilation for tropical region applications. The installation demonstrates the iron-look aesthetic and seamless functionality of our high-performance thermally broken aluminum systems designed for modern residential job sites.
3D Design Renders

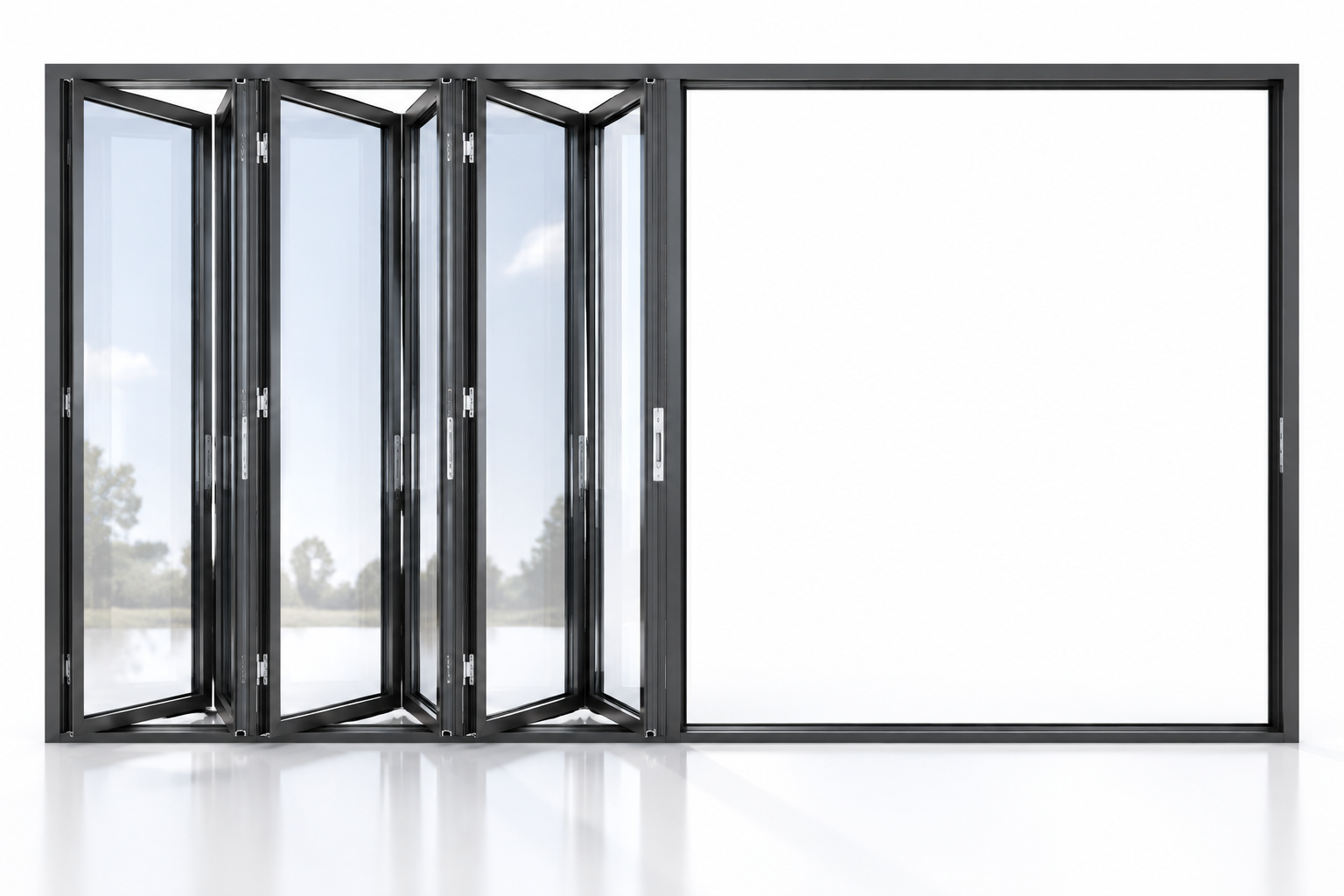

These 3D design renders showcase the SAINTY Solar Heat Control Aluminum Bi-Fold Doors, specifically engineered for optimal performance in the tropical climate of Arizona. The visualization highlights a 3+1 opening configuration featuring 6063-T5 thermally broken frames finished in black powder coating. These units incorporate Low-E insulated glass to meet solar heat control requirements, ensuring thermal efficiency and weather resistance through high-grade hardware and weatherstripping designed for demanding ASTM-standard testing environments prior to manufacturing.
Live Test On Site
This gallery showcases live test clips and on-site commissioning footage of SAINTY solar heat control aluminum bi-fold doors installed in a high-temperature Arizona environment. The 6+1 configuration features Low-E insulated glass and black powder coating, engineered for tropical regions requiring high thermal efficiency. These field recordings document the hardware adjustments and smooth operation of the ultra-tall panels, ensuring the weatherstripping and stainless steel components meet strict performance standards for air infiltration and solar heat gain.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
The SAINTY Solar Heat Control Aluminum Bi-Fold Door installation guide provides critical specifications for ensuring ASTM-rated performance in Arizona tropical applications. The manual details Rough Opening Measurements, Head Track Leveling, Shim Placement at hinge pivot points, and Multi-Point Lock Calibration. It includes specific EPDM Gasket Sealing procedures to maintain the 720 Pa water penetration resistance class. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY Solar Heat Control Aluminum Bi-Fold Doors Precision Installation Guide
- Step-by-step assembly demonstrating professional frame positioning, track anchoring, and panel mounting to ensure DP70 wind load resistance.
- Detailed hardware calibration and EPDM weatherstripping alignment to maintain a 0.06 cfm/ft² air infiltration rating and optimal solar heat control.
- Final performance verification of the 6063-T5 aluminum structure, ensuring smooth multi-panel operation for high-traffic tropical applications.
Key Moments: 00:00 – Frame Measurement and Positioning|01:15 – Track Installation and Anchoring|02:45 – Panel Glazing and Sash Mounting|04:10 – Hardware Calibration and Seal Testing
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
ProSill™ installation guidance for these bi-fold systems focuses on sill pan integration and precise leveling of the head track. Given the weight of wide-span folding panels, installers must ensure that the structural header deflection is less than 1/8 inch under full load to prevent operational binding.
For tropical Arizona applications, we recommend the use of high-movement EPDM backer rods and non-hardening sealants at the frame-to-wall interface. This accommodates the thermal expansion of the 6063-T5 aluminum frames during peak summer temperatures without compromising the water penetration resistance of 720 Pa.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-Year Structural Warranty on the aluminum extrusion and frame integrity, along with a 5-year warranty on all SS304 stainless steel hardware components and weatherstripping, ensuring long-term performance under ASTM and NFRC certified standards.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Are these bi-fold doors tested for the high wind loads and heat of Arizona?
Yes, our bi-fold doors are tested to ASTM E330 standards, achieving a Design Pressure (DP) rating of up to DP70. This structural performance is paired with a SHGC of 0.23 or lower, specifically designed to meet the energy demands of Arizona's tropical and desert microclimates by blocking significant infrared heat transfer.
What weatherstripping and sealing technology is used for air infiltration?
We utilize high-grade EPDM gasket systems and multi-point sealing to achieve an air infiltration rating not higher than 0.06 cfm/ft² per ASTM E283. This dual-layer weatherstripping ensures that even during monsoon conditions or dust storms, the building envelope remains airtight and protected against moisture and particulate matter.
What is the lead time for custom-sized architectural bi-fold doors?
The standard lead time is 25–45 days after CAD approval and finalization of technical specifications. This window includes the precision extrusion of 6063-T5 aluminum, application of the AAMA 2605 powder coating, and rigorous factory QC testing to ensure compliance with NFRC 100-2020 standards.
Do SAINTY solar heat control aluminum bi-fold doors comply with Arizona energy code requirements?
Yes. SAINTY Solar Heat Control Aluminum Bi-Fold Doors units are fully compliant with Arizona energy code requirements, achieving a certified U-Factor of 0.28 Btu/h·ft²·°F and an SHGC of 0.21 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
Get a quote for this product
Send your sizes and we will reply with pricing, drawings, and a live 11-step production timeline inside the SAINTY app.
Request a quote
