| U-Factor (NFRC 100) | 0.28 Btu/h·ft²·°F |
|---|---|
| SHGC | 0.22 |
| Design Pressure | DP70 (ASTM E330) |
| Water Penetration | 720 Pa (15 psf) |
| Alloy & Thermal Break | 6063-T5 / 24mm PA66 GF25 |
| Glazing Build-up | 6mm Low-E + 12A + 6mm Laminated |
| Air Infiltration | 0.05 cfm/ft² |
| Hardware Material | SS304 Stainless Steel |
| Lead Time | 35-45 Days |
SAINTY™ Impact Resistant Aluminum Bi-Fold Door
0.28 Btu/h·ft²·°F for Florida
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Impact Resistant Aluminum Bi-Fold Door: Architectural Specifications & NFRC & Energy Code Compliance
Impact Resistant Aluminum Bi-Fold Door is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.28 Btu/h·ft²·°F compliance in Florida — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.28 Btu/h·ft²·°F
- SHGC (NFRC 200):
- 0.22
- Air infiltration (ASTM E283):
- 0.05 cfm/ft²
- Design pressure (ASTM E330):
- DP70 (ASTM E330)
- Water penetration (ASTM E547):
- 720 Pa (15 psf)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- Florida
The SAINTY™ Impact Resistant Aluminum Bi-Fold Door is engineered to meet the rigorous structural demands of Florida coastal villas. Combining high-performance thermal breaks with impact-rated glazing, these doors provide seamless transitions between indoor and outdoor spaces without compromising on safety or energy efficiency. Each unit is designed to withstand extreme wind loads while maintaining a sleek, architectural profile finished in high-durability black powder coating.
100% Tracking — from Drawings to Site
SAINTY ensures total project transparency through our proprietary 100% 11-step transparent order tracking system. From the moment your CAD drawings are finalized, you can access the SAINTY app to view real-time visual updates of your doors through every stage of manufacturing, including extrusion, assembly, and final QC, ensuring your Florida villa schedule remains on track.
Built with 6063-T5 architectural-grade aluminum and 24mm PA66 GF25 thermal breaks, our bi-fold doors offer superior structural integrity. We utilize precision-engineered SS304 stainless steel hardware to ensure smooth operation of large-scale panels, even in salt-air environments, backed by rigorous factory testing to ASTM standards.
10-Year WarrantyFlorida Product Approval
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Impact Resistant Aluminum Bi-Fold Door
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Impact Resistant Aluminum Bi-Fold Door |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.28 Btu/h·ft²·°F |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.22 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.05 cfm/ft² |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FL48013 Certified (Certificate ID: STY-2023-01)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects
3D Design Renders

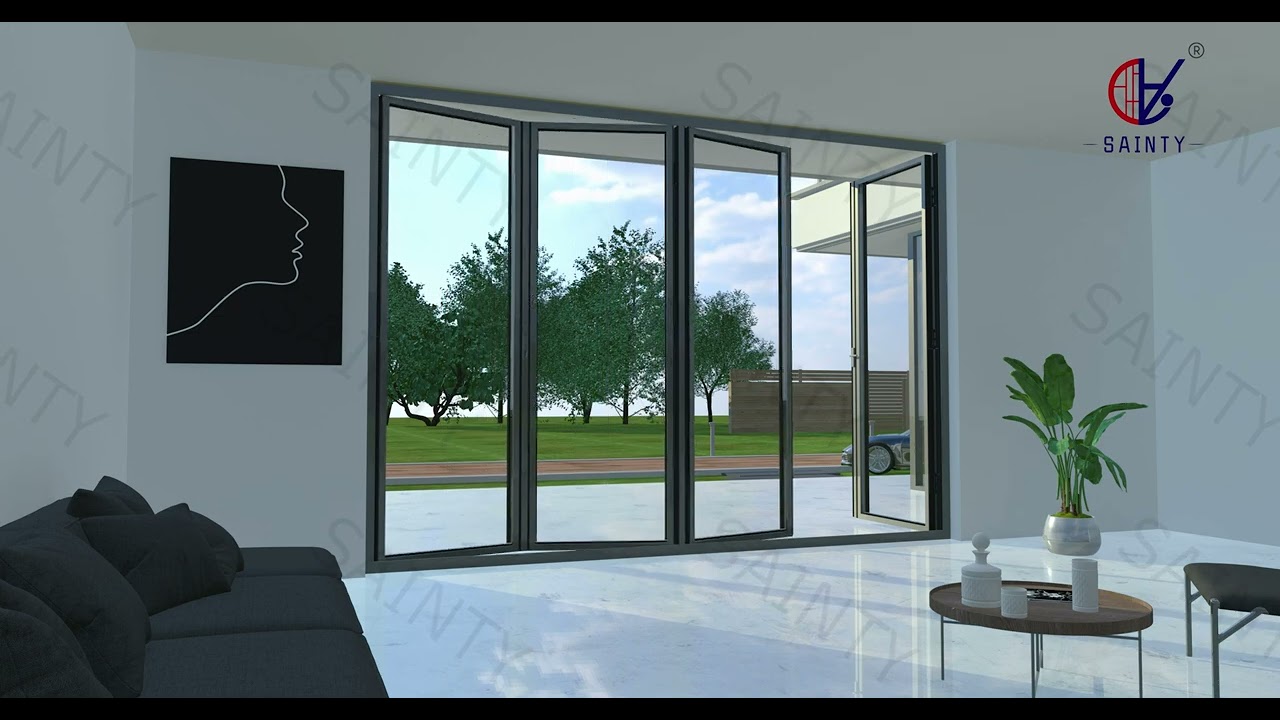

These 3D design renders produced before manufacturing showcase the SAINTY™ Impact Resistant Aluminum Bi-Fold Door tailored for high-end Florida villa applications. The project features a black powder-coated 6063-T5 aluminum frame with a 4+1 folding configuration and double-pane insulated Low-E glass to meet Florida Product Approval standards. Designed for luxury residential aesthetics, these renders illustrate the seamless panoramic transition and structural durability required for impact-resistant performance in coastal environments.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Impact Resistant Aluminum Bi-Fold Door
SAINTY Impact Resistant Aluminum Bi-Fold Doors manual covers Florida Product Approval specifications and high-velocity hurricane zone requirements. This document details AAMA Standard Sill Flashing practice and Water Penetration Prevention tested to 720 Pa. Users will find comprehensive guides for Rough Opening Measurements, Shim Placement at pivot points, EPDM Gasket Sealing, and Multi-Point Lock Calibration. Download the full PDF manual below before rough-in.
Installation Videos

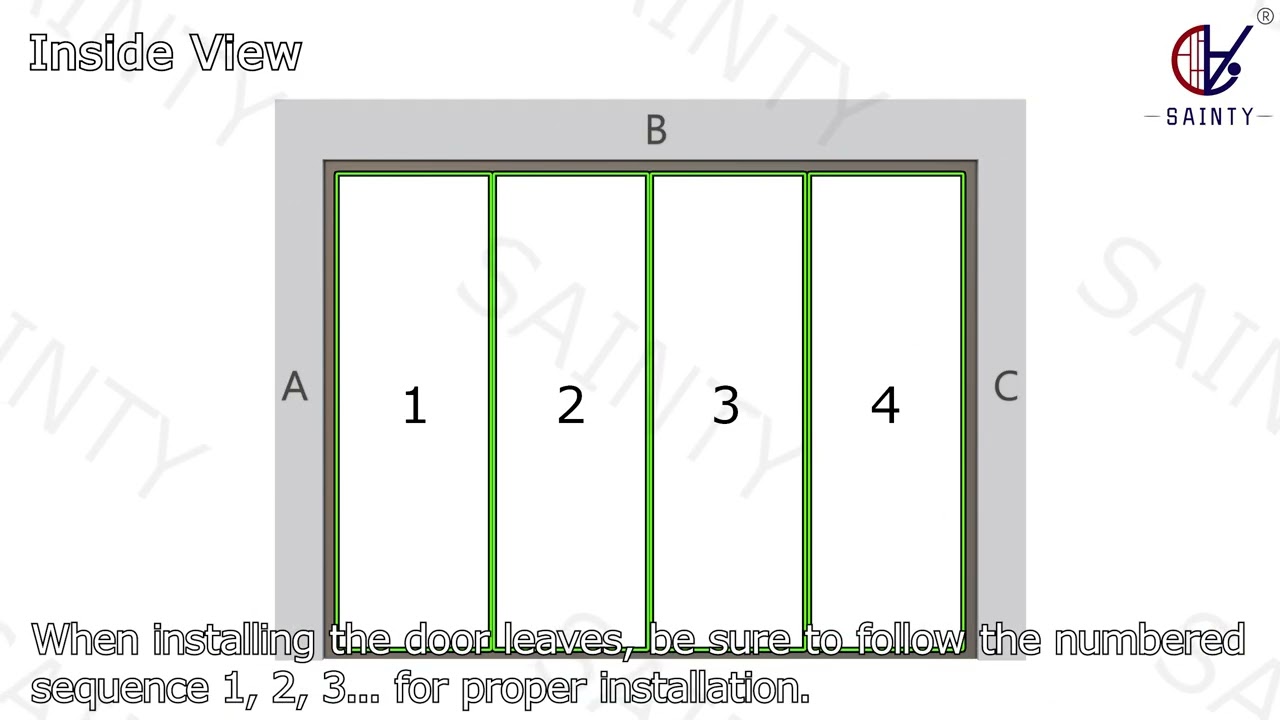

Watch: SAINTY™ Impact Resistant Aluminum Bi-Fold Door Installation and Sealing
- Professional installation workflow showcasing frame mounting and precision track alignment for Florida DP70 wind load compliance.
- Detailed hardware adjustment of stainless steel 304 hinges and rollers to ensure a smooth, airtight seal that meets ASTM E283 standards.
- Final inspection of the EPDM gasket compression to verify water penetration resistance of 720 Pa.
Key Moments: 00:00 – Frame Measurement and Positioning|00:45 – Track and Threshold Installation|01:30 – Door Leaf and SS304 Hardware Assembly|02:15 – Seal Integrity and Operation Test
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
ProSill™ installation for bi-fold systems requires precise leveling of the recessed sub-sill to ensure smooth track operation. Installers must ensure the rough opening is square within 1/8 inch and utilize high-density shims at every hinge pivot point to support the weight of the active leaves.
For Florida villa applications, ensure the perimeter is sealed using a three-stage waterproofing method, including EPDM gasket integration and high-performance silicone sealant, to maintain the 720 Pa water penetration resistance rating.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
- Florida Product Approval
10-Year Warranty
Structural Warranty
SAINTY provides a 10-Year Structural Warranty and a 5-year hardware warranty on all impact-resistant bi-fold doors, ensuring compliance with Florida building codes and long-term mechanical reliability in residential environments.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Do these bi-fold doors meet Florida Product Approval requirements?
Yes, our impact-resistant bi-fold doors are tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards and carry specific Florida Product Approval documentation for high-velocity hurricane zones. These units are rated for a design pressure of DP70 (ASTM E330) and feature laminated impact glass capable of withstanding large missile impacts typical of tropical storm conditions.
What is the thermal performance rating for this bi-fold system?
The SAINTY bi-fold system achieves a U-Factor of 0.28 Btu/h·ft²·°F when rated per NFRC 100-2020. By utilizing double-pane insulated glass with a low-E coating and argon fill, the system maintains a Solar Heat Gain Coefficient (SHGC) of 0.22, effectively reducing cooling loads for Florida residential applications while providing clear visible transmittance.
What hardware is used to prevent corrosion in coastal Florida environments?
We exclusively use SS304 or SS316 stainless steel for all hinges, rollers, and multi-point locking mechanisms to prevent salt-air corrosion. The frames are finished with AAMA 2605 compliant powder coating, which is the highest industry standard for color retention and chemical resistance in high-exposure coastal sites.
Do SAINTY impact resistant aluminum bi-fold doors comply with Florida energy code requirements?
Yes. SAINTY Impact Resistant Aluminum Bi-Fold Door units are fully compliant with Florida energy code requirements, achieving a certified U-Factor of 0.28 Btu/h·ft²·°F and an SHGC of 0.22 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
