| U-Factor (NFRC 100) | 0.28 Btu/h·ft²·°F |
|---|---|
| Wind Load / Design Pressure | DP70 (ASTM E330)✓ TAS 202(Structural only) Certified (Certificate ID: FL48013) |
| Water Penetration Resistance | 720 Pa (15 psf) |
| Glazing Configuration | 5mm + 12A + 5mm + 12A + 5mm Triple-Pane Low-E |
| Aluminum Alloy | 6063-T5 with 34mm PA66 GF25 Thermal Break |
| Finish | AAMA 2605 Powder Coating - Black |
| Air Infiltration | 0.05 cfm/ft² (@1.57 psf) |
| Lead Time | 35-45 Days after CAD Approval |
| Acoustic Rating | STC 38 |
SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
0.28 Btu/h·ft²·°F for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Thermally Broken Aluminum Bi-Fold Doors: Architectural Specifications & NFRC & Energy Code Compliance
Thermally Broken Aluminum Bi-Fold Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.28 Btu/h·ft²·°F compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.28 Btu/h·ft²·°F
- Air infiltration (ASTM E283):
- 0.05 cfm/ft² (@1.57 psf)
- Acoustic rating (ASTM E90):
- STC 38
- Design pressure (ASTM E330):
- DP70 (ASTM E330)
- Water penetration (ASTM E547):
- 720 Pa (15 psf)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- United States
The SAINTY™ Thermally Broken Aluminum Bi-Fold Door system is engineered to provide expansive, unobstructed views for premium villa applications across the United States. Featuring high-strength 6063-T5 aluminum alloy and advanced triple-pane insulated glass, these doors deliver exceptional wind pressure resistance and thermal insulation. Each unit is customized to meet the rigorous Florida Product Approval standards, ensuring durability and safety in coastal and high-wind environments.
100% Tracking — from Drawings to Site
SAINTY ensures complete project certainty through our 100% 11-step transparent order tracking system. From the moment CAD shop drawings are approved, U.S. B2B buyers can access the SAINTY app to view real-time visual progress of their order, including extrusions, powder coating, and glazing phases, all the way to final crating and export shipping.
Our architectural-grade build quality is defined by precision-engineered PA66 GF25 thermal breaks and heavy-duty stainless steel hardware. We utilize a dedicated 11-step manufacturing pipeline that guarantees consistency in every profile, ensuring that your villa project meets both aesthetic and structural requirements with documented factory-direct quality.
10-Year WarrantyFlorida Product Approval
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Door
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Doors
SAINTY™ Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Sliding Doors
SAINTY™ Powder Coated Aluminum Casement Windows
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Bi-Fold Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Bi-Fold Doors |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.28 Btu/h·ft²·°F |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.05 cfm/ft² (@1.57 psf) |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | STC 38 |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

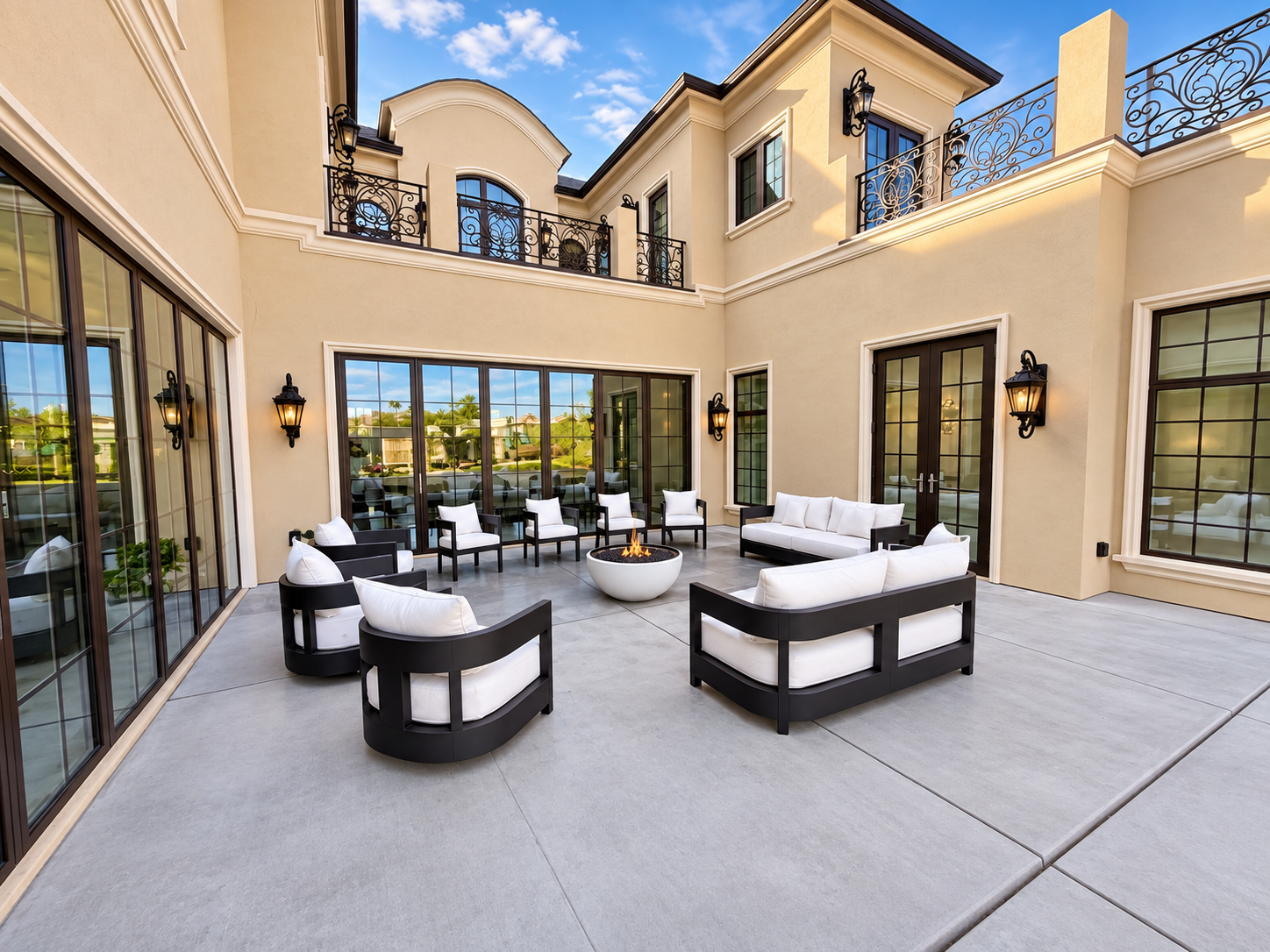

This gallery showcases real installed project photos of SAINTY™ Thermally Broken Aluminum Bi-Fold Doors, featuring a black powder-coated finish for a luxury Arizona villa. These triple-pane insulated glass systems provide exceptional wind pressure resistance and high thermal efficiency for backyard applications. Designed for seamless indoor-outdoor transitions, these folding doors combine durable 6063-T5 aluminum frames with high-performance hardware to meet rigorous residential standards in the United States.
3D Design Renders
These 3D design renders showcase the SAINTY™ Thermally Broken Aluminum Bi-Fold Doors configured for high-end villa applications throughout the United States. Featuring a 3+1 opening scheme and a durable black finish, these doors utilize triple-pane insulated glass and a robust thermal break to maximize wind pressure resistance. The detailed visualizations reflect the Florida Product Approval standards, ensuring that the final manufactured door maintains superior structural integrity and airtightness for modern residential architecture.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
This technical manual covers the SAINTY Florida-Approved Aluminum Bi-Fold Door system, specifically designed for high-wind residential zones in the United States. It details compliance with ASTM E330 for DP70 wind loads and provides specific guidance for water penetration prevention at 720 Pa. The document outlines essential steps including Rough Opening Measurements, Shim Placement at jambs, EPDM Gasket Sealing, and Multi-Point Lock Calibration to ensure thermal and structural integrity. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY™ Thermally Broken Aluminum Bi-Fold Doors Precision Installation Guide
- Step-by-step assembly of the PA66 GF25 thermal break frame and heavy-duty tracks designed for DP70 wind pressure resistance.
- Expert alignment of stainless steel grade 304 hardware and pulleys to ensure smooth operation of triple-pane insulated glass panels.
- Final sealing and EPDM gasket inspection to guarantee an air infiltration rate below 0.06 cfm/ft² for villa applications.
Key Moments: 00:00 – Frame Positioning and Track Anchoring|00:45 – Sash Installation and Hardware Calibration|01:30 – Seal Integrity and Performance Testing
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
For successful ProSill™ integration, ensure the floor track is recessed according to the detail drawings to maintain a flush transition while ensuring proper drainage. The bottom track must be set level within 1/16 inch across the entire opening to prevent binding of the rollers and to maintain the integrity of the EPDM weatherstripping seals.
During installation, pay close attention to the vertical plumb of the side jambs. Even minor deviations can impact the multi-point locking alignment. We recommend using high-quality flashing membranes around the rough opening before securing the frame to prevent water ingress behind the thermal break system.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
- Florida Product Approval
10-Year Warranty
Structural Warranty
SAINTY provides a 10-year structural warranty and a 5-year hardware warranty on all Bi-Fold Doors, backed by Florida Product Approval and AAMA 2604/2605 coating standards to ensure long-term performance in United States residential applications.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Are SAINTY Bi-Fold Doors suitable for hurricane-prone regions in the U.S.?
Yes, these doors are engineered to achieve Florida Product Approval and are tested to ASTM E330 standards for wind pressure resistance up to DP70. The system features reinforced 6063-T5 aluminum frames and multi-point locking mechanisms to maintain structural integrity under extreme wind loads, ensuring compliance with stringent building codes in coastal zones.
What is the thermal performance rating for this triple-pane bi-fold system?
SAINTY Bi-Fold Doors achieve a U-Factor between 0.20 and 0.32 Btu/h·ft²·°F when tested according to NFRC 100-2020 protocols. By utilizing 34mm PA66 GF25 thermal breaks and triple-pane insulated glass with Low-E coatings, the system effectively minimizes heat transfer, making it ideal for villa projects requiring high energy efficiency.
Do SAINTY thermally broken aluminum bi-fold doors comply with United States energy code requirements?
Yes. SAINTY Thermally Broken Aluminum Bi-Fold Doors units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.28 Btu/h·ft²·°F when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
Get a quote for this product
Send your sizes and we will reply with pricing, drawings, and a live 11-step production timeline inside the SAINTY app.
Request a quote
