| Thermal Insulation | U-Factor 0.20 – 0.32 (NFRC 100) |
|---|---|
| Solar Heat Gain | SHGC ≤ 0.23 |
| Acoustic Rating | STC 32 – 42 dB |
| Air Infiltration | ≤ 0.06 cfm/ft² (ASTM E283)✓ ASTM E283 Certified (Certificate ID: QTM-2023-42-01 ) |
| Design Pressure | DP30 – DP70 (ASTM E330)✓ ASTM E330 Certified (Certificate ID: QTM-2023-42-01 ) |
| Glazing Build-up | 5mm+12A+5mm+12A+5mm Triple-Pane |
| Aluminum Alloy | 6063-T5 / 34mm PA66 GF25 Break |
| Water Resistance | 720 Pa (15 psf) minimum✓ ASTM E331 Certified (Certificate ID: QTM-2023-42-01 ) |
| Production Lead Time | 25–45 Days (Post-CAD) |

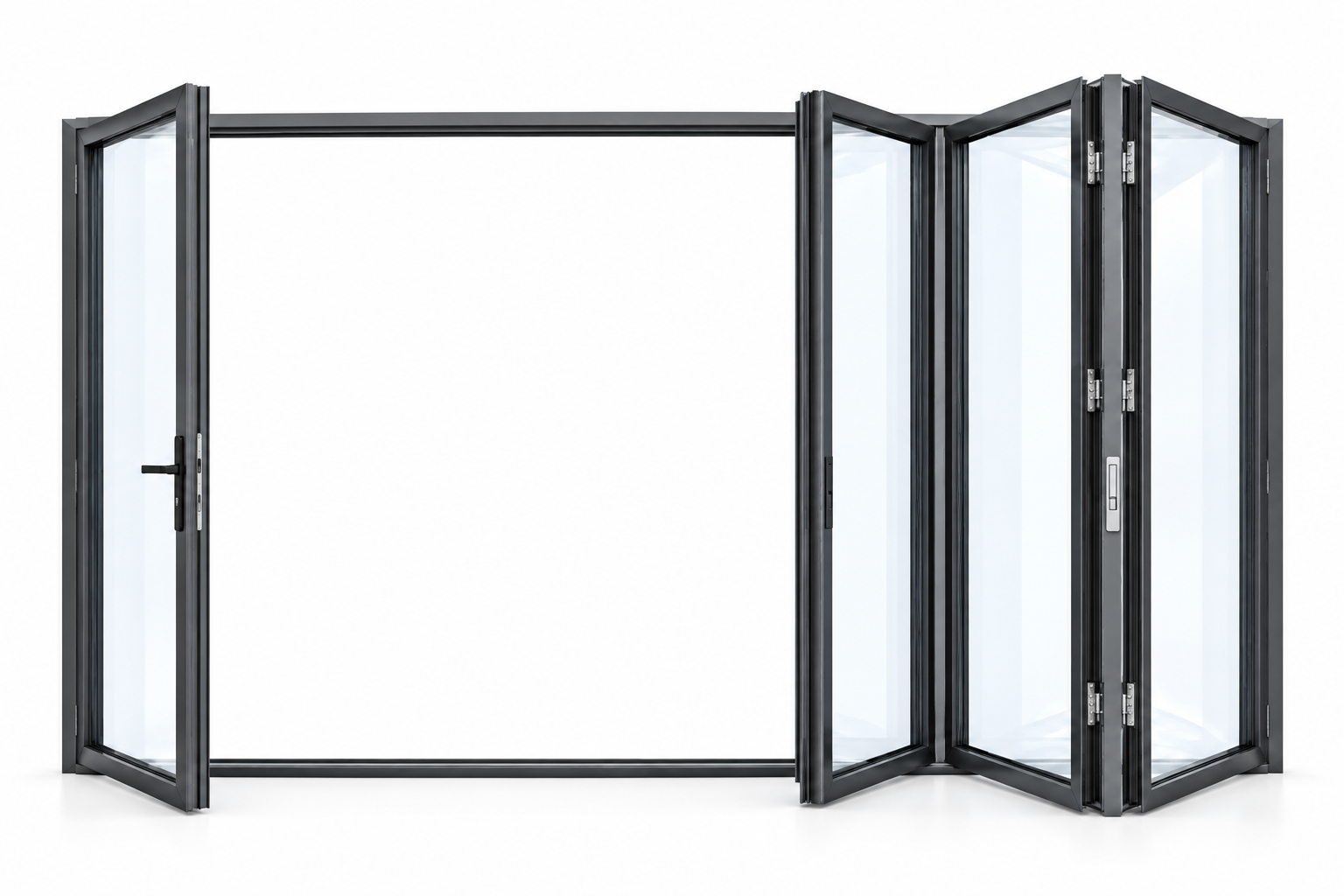

SAINTY™ Fire Rated Aluminum Bi-Fold Doors
NFRC-rated performance data for New York
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Fire Rated Aluminum Bi-Fold Doors: Architectural Specifications & NFRC & Energy Code Compliance
Fire Rated Aluminum Bi-Fold Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in New York — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- SHGC (NFRC 200):
- SHGC ≤ 0.23
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft² (ASTM E283)
- Acoustic rating (ASTM E90):
- STC 32 – 42 dB
- Design pressure (ASTM E330):
- DP30 – DP70 (ASTM E330)
- Frame material:
- 6063-T5 thermal break aluminum
- Markets served:
- New York
- Lead time:
- 25–45 Days (Post-CAD)
- Warranty:
- 10-year structural warranty
SAINTY™ Fire Rated Aluminum Bi-Fold Doors deliver an architectural-grade solution for multi-family apartment developments in New York requiring strict ASTM compliance. Engineered with Triple-Pane Insulated Glass and a robust thermal break system, these folding systems provide expansive openings without compromising the safety or energy efficiency standards demanded by modern urban environments.
100% Tracking — from Drawings to Site
SAINTY provides unparalleled supply chain visibility through our 100% 11-step transparent order tracking system. B2B buyers can monitor their project through the dedicated SAINTY app, viewing real-time visual updates from extrusion and CNC machining to final assembly and ASTM-compliant fire safety testing.

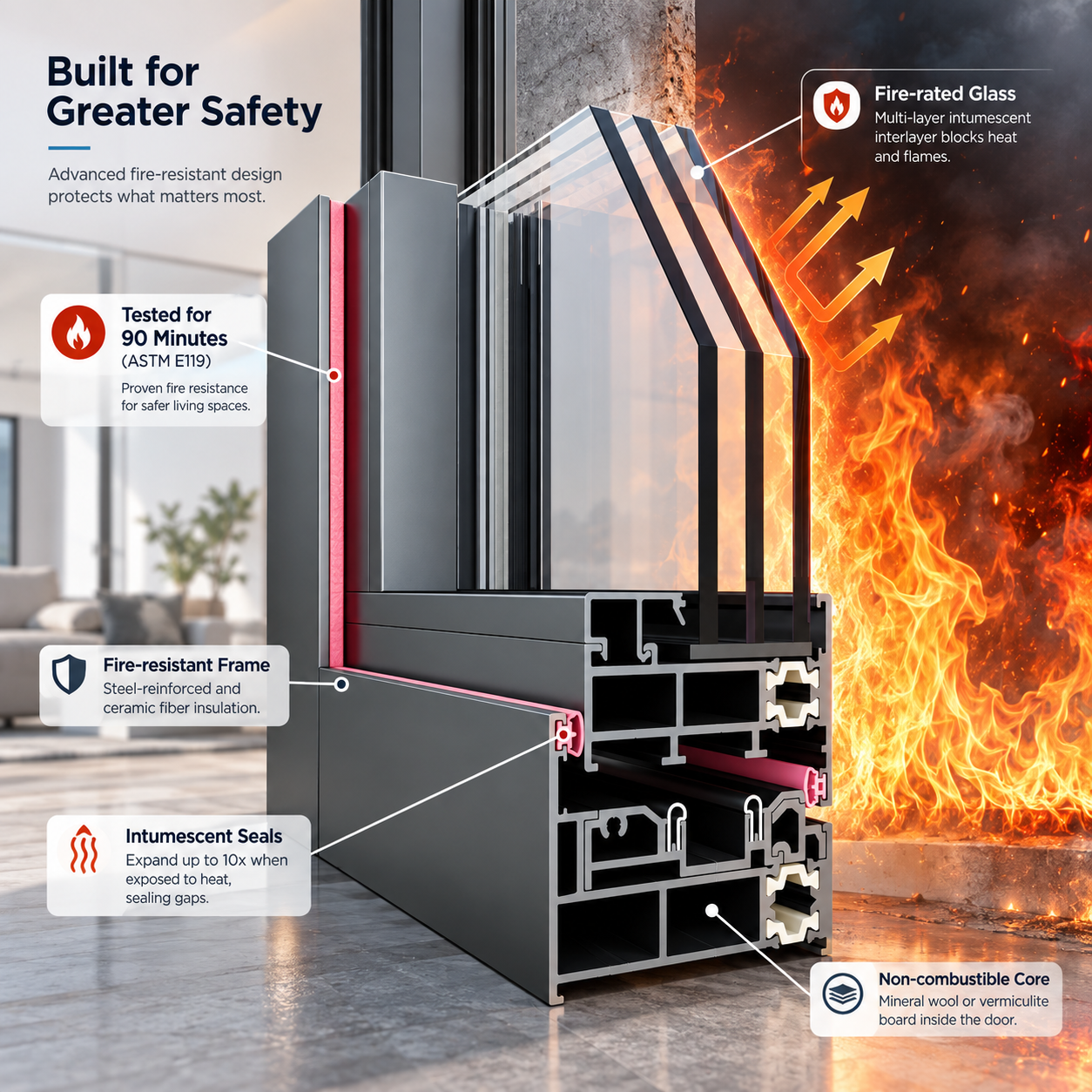

Our architectural-grade build quality utilizes 6063-T5 aluminum and PA66 GF25 thermal breaks. This ensures high-cycle durability for high-density residential applications while maintaining a design pressure rating of up to DP70 to withstand New York's coastal wind loads.
10-Year WarrantyASTM
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Impact Resistant Aluminum Bi-Fold Door
SAINTY™ Soundproof Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Door
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Doors
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Fire Rated Aluminum Bi-Fold Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Fire Rated Aluminum Bi-Fold Doors |
|---|---|---|
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | SHGC ≤ 0.23 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² (ASTM E283) |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | STC 32 – 42 dB |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- ASTM E283 Certified (Certificate ID: QTM-2023-42-01 )Download report (PDF)
- ASTM E331 Certified (Certificate ID: QTM-2023-42-01 )Download report (PDF)
- ASTM E330 Certified (Certificate ID: QTM-2023-42-01 )Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

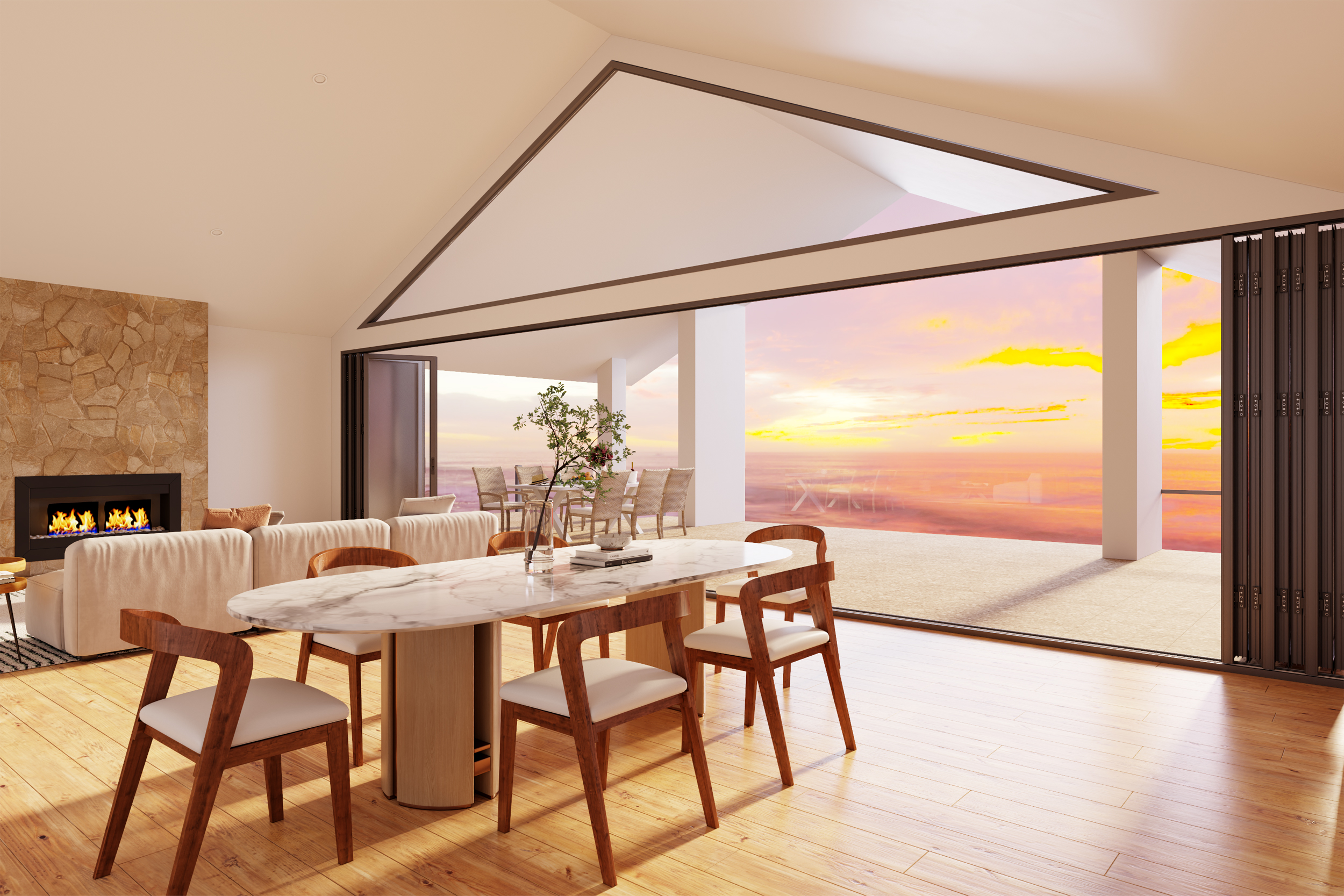

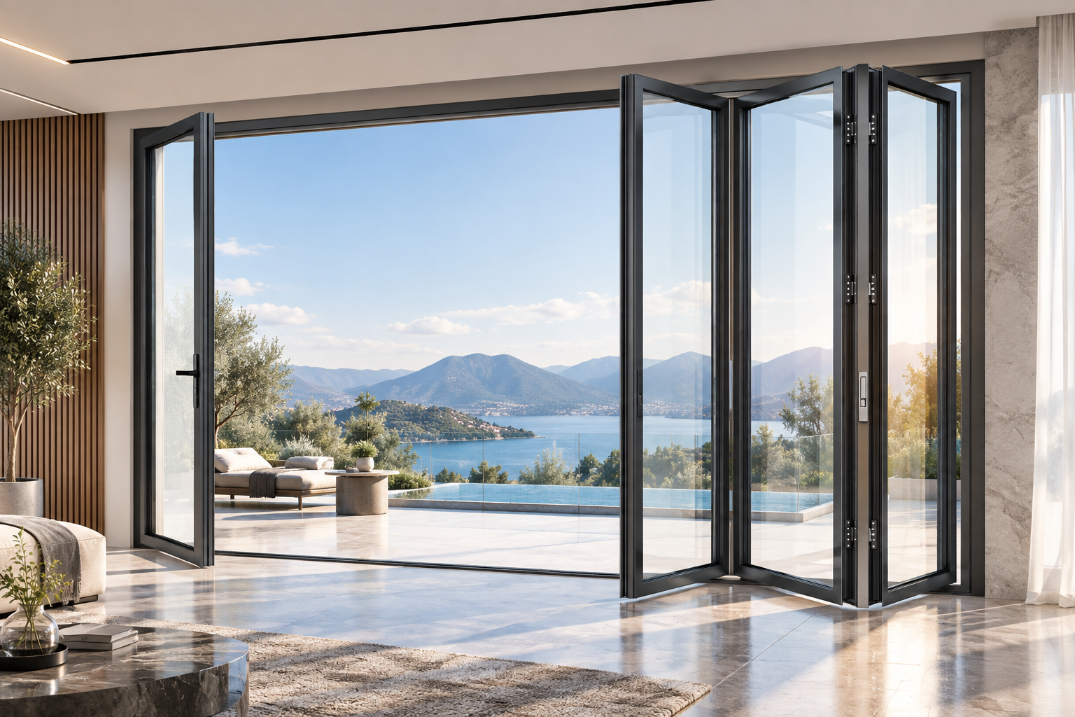

These real jobsite installed project photos showcase the SAINTY Fire Rated Aluminum Bi-Fold Doors integrated into a premium New York apartment. Featuring an L-shaped corner configuration with triple-pane insulated glass, this system maximizes space and provides a 270-degree panoramic view. The design utilizes thermally broken 6063-T5 aluminum profiles and stainless steel hardware to meet strict energy efficiency standards while ensuring seamless indoor-outdoor connectivity through a high-performance folding mechanism.
3D Design Renders
Live Test On Site
Drawings & Installation Manuals
Installation Manual — SAINTY™ Fire Rated Aluminum Bi-Fold Doors
SAINTY Fire Rated Aluminum Bi-Fold Doors manual covers the installation of ASTM-certified folding systems in high-density New York residential scenarios. The document details AAMA Standard Sill Flashing practices and Water Penetration Prevention steps tested to 720 Pa. Key technical sections include Rough Opening Measurements, Shim Placement at jambs and sill, EPDM Gasket Sealing, and Multi-Point Lock Calibration. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY™ Fire Rated Aluminum Bi-Fold Doors Precision Installation and Field Adjustment
- Step-by-step frame mounting and track alignment for seamless multi-panel operation.
- Precision hardware and roller calibration to ensure ASTM E283 air infiltration compliance.
- Final sealing inspection of EPDM gaskets to maintain fire-rated thermal performance.
Key Moments: 00:00 – Frame Measurement and Positioning|00:45 – Track Installation and Secure Mounting|01:30 – Panel Assembly and Hardware Adjustment|02:15 – Operation Check and Sealing Test
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.

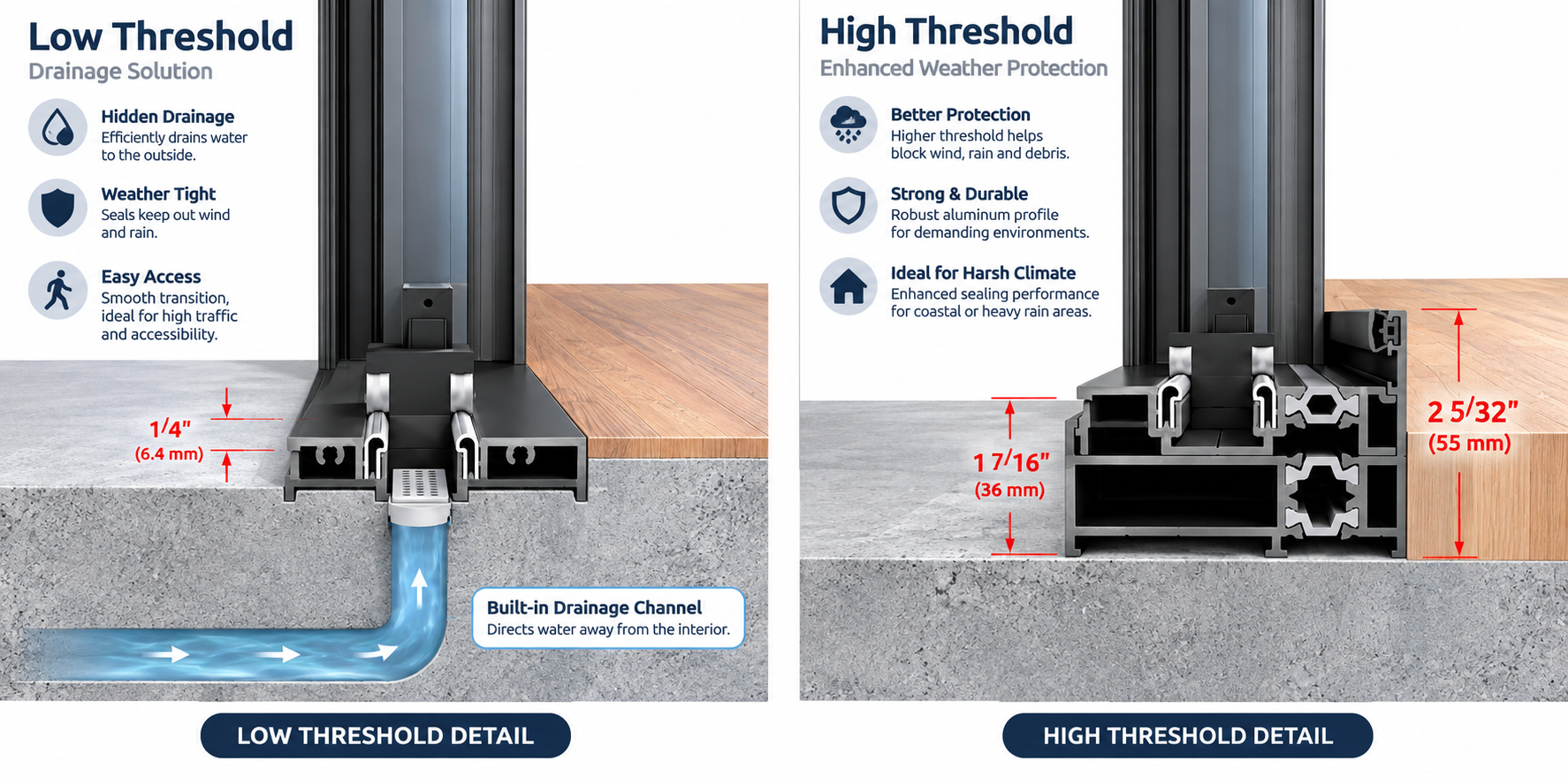

ProSill™ installation for SAINTY bi-fold doors requires precise leveling of the head track and sill to ensure even weight distribution across the folding panels. We recommend utilizing a recessed drainage sill for New York apartment balconies to maintain ADA compliance while providing a 720 Pa water barrier.
Installers must ensure shim placement at every hinge point and head track mounting location to prevent sagging. EPDM gasket sealing must be continuous at all corner joints to maintain the air infiltration rating of 0.06 cfm/ft².
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY provides a 10-Year Structural Warranty and a 5-Year Hardware Warranty on all ASTM-certified Bi-Fold Door systems, covering frame integrity and mechanical components when installed per AAMA standards.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Are these bi-fold doors tested for fire resistance in multi-story buildings?
Yes, our fire-rated aluminum systems are tested to ASTM standards to ensure they meet the specific safety requirements for high-density residential developments. The combination of fire-rated glazing and reinforced aluminum profiles provides the necessary protection levels while maintaining the aesthetic appeal of a modern folding door system.
What is the thermal performance rating for these doors in cold climates?
SAINTY bi-fold doors achieve a U-Factor between 0.20 and 0.32 Btu/h·ft²·°F as rated per NFRC 100-2020. This performance level, achieved through triple-pane glazing and 34mm thermal breaks, makes them highly effective at reducing heat loss during New York winters while meeting strict local energy codes.
What type of sill and hardware configuration is used for water resistance?

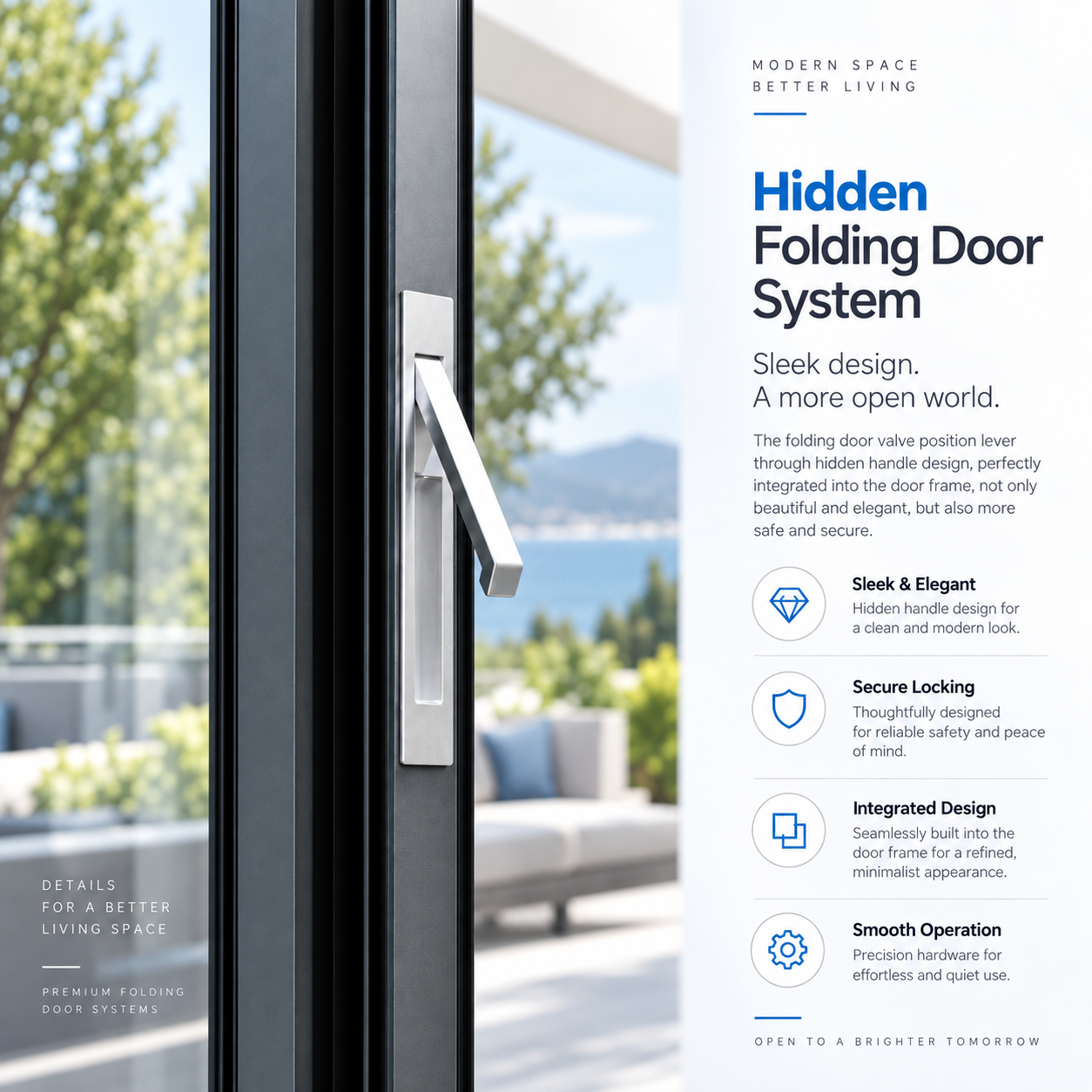

These doors utilize a high-performance sill tested to a water penetration resistance of 720 Pa (15 psf) per ASTM E331. The hardware includes Grade 304 stainless steel multi-point locking systems and heavy-duty rollers to ensure a weather-tight seal and smooth operation under high wind load conditions.
Do SAINTY fire rated aluminum bi-fold doors comply with New York energy code requirements?
Yes. SAINTY Fire Rated Aluminum Bi-Fold Doors units are fully compliant with New York energy code requirements, achieving a certified U-Factor of 0.30 and an SHGC of SHGC ≤ 0.23 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
