| U-Factor (NFRC 100) | 0.22 Btu/h·ft²·°F |
|---|---|
| Solar Heat Gain Coefficient (SHGC) | 0.21 |
| Air Infiltration (ASTM E283) | ≤ 0.06 cfm/ft²✓ ASTM E283 Certified (Certificate ID: QTM-2023-42-01) |
| Design Pressure (ASTM E330) | DP50 (2400 Pa)✓ ASTM E330 Certified (Certificate ID: QTM-2023-42-01) |
| Water Resistance (ASTM E331) | 720 Pa (15 psf)✓ ASTM E331 Certified (Certificate ID: QTM-2023-42-01) |
| Thermal Break Width | 34mm PA66 GF25 |
| Glazing Build-up | 5mm + 12A + 5mm + 12A + 5mm Low-E |
| Aluminum Alloy | 6063-T5 Architectural Grade |
| Acoustic Rating (STC) | 38 dB |
SAINTY™ Thermally Broken Aluminum Bi-Fold Door
0.22 Btu/h·ft²·°F for Colorado
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Thermally Broken Aluminum Bi-Fold Door: Architectural Specifications & NFRC & Energy Code Compliance
Thermally Broken Aluminum Bi-Fold Door is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.22 Btu/h·ft²·°F compliance in Colorado — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.22 Btu/h·ft²·°F
- SHGC (NFRC 200):
- 0.21
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft²
- Acoustic rating (ASTM E90):
- 38 dB
- Design pressure (ASTM E330):
- DP50 (2400 Pa)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- Colorado

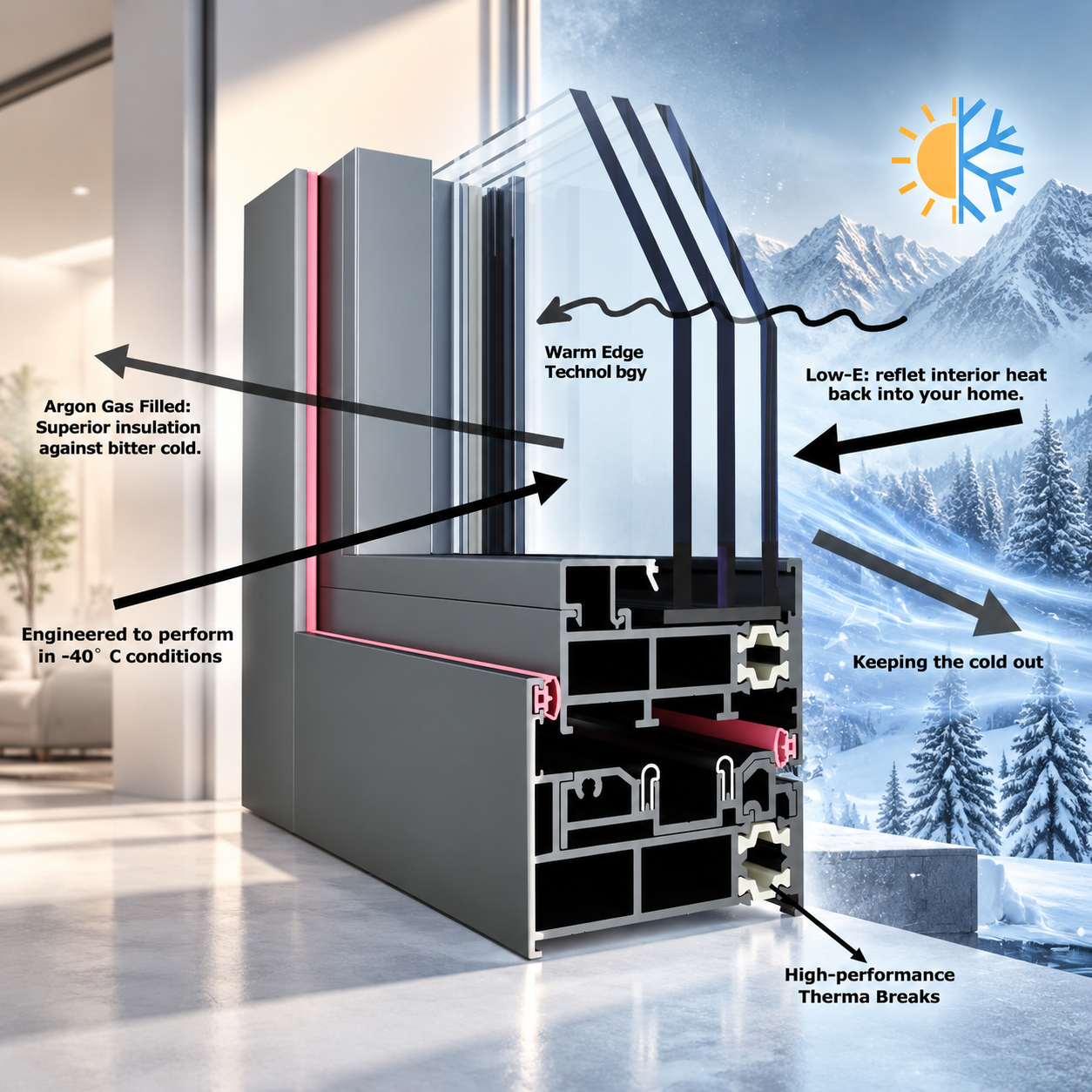

The SAINTY™ Thermally Broken Aluminum Bi-Fold Door is engineered specifically for the extreme temperature fluctuations of Colorado and similar cold climate regions. Utilizing advanced 34mm PA66 GF25 thermal breaks and triple-pane insulated glazing, these doors provide superior thermal resistance while maintaining the structural integrity required for high-altitude wind loads. Designed for seamless indoor-outdoor living, this system meets rigorous ASTM E330 standards for design pressure and provides an airtight seal against sub-zero temperatures.
100% Tracking — from Drawings to Site
SAINTY ensures complete project certainty through our proprietary 100% 11-step transparent order tracking system. From the moment CAD drawings are finalized, B2B buyers can access the SAINTY app to view real-time visual progress of their Bi-Fold Door fabrication, including glass tempering, frame assembly, and final ASTM testing, ensuring no blind spots in your supply chain.

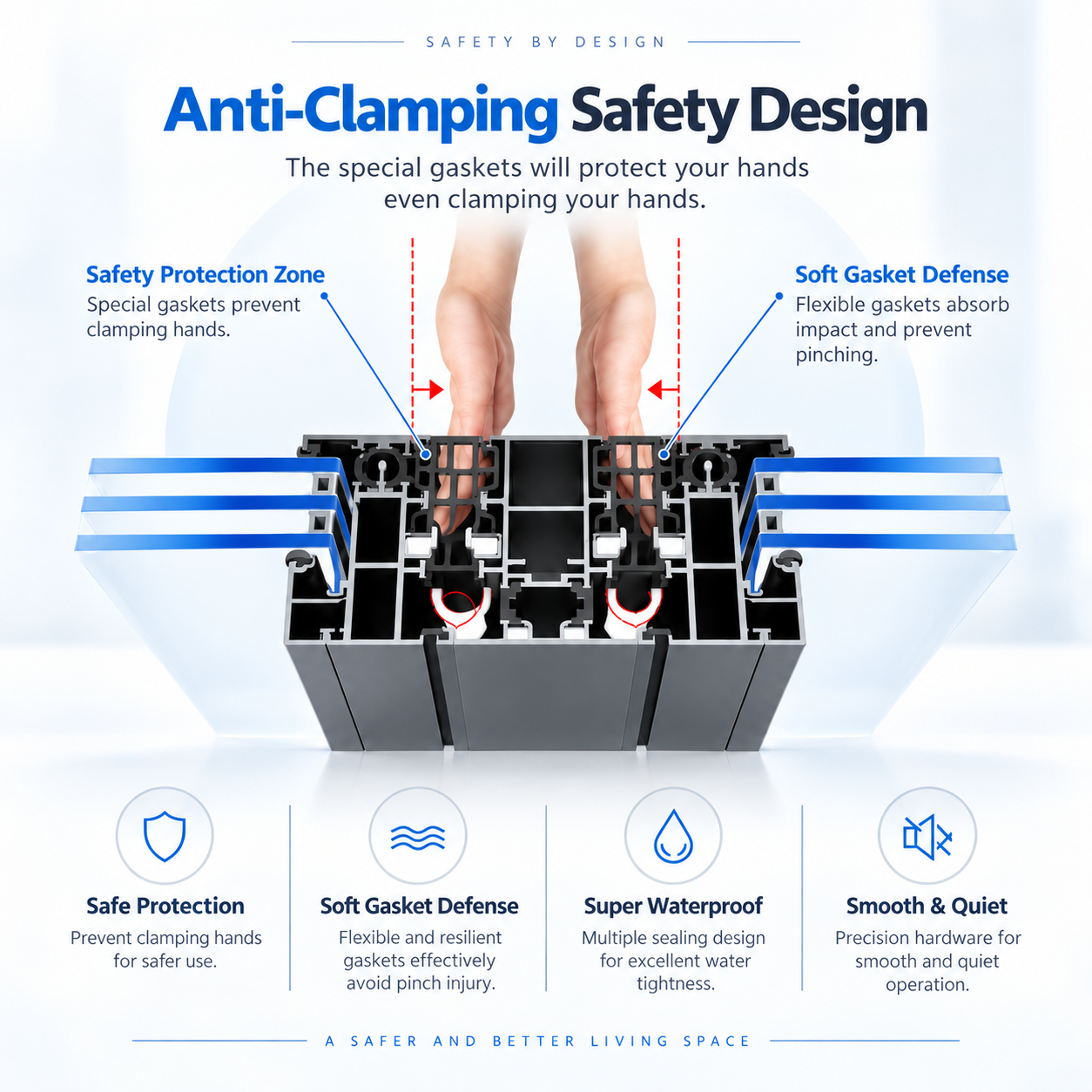

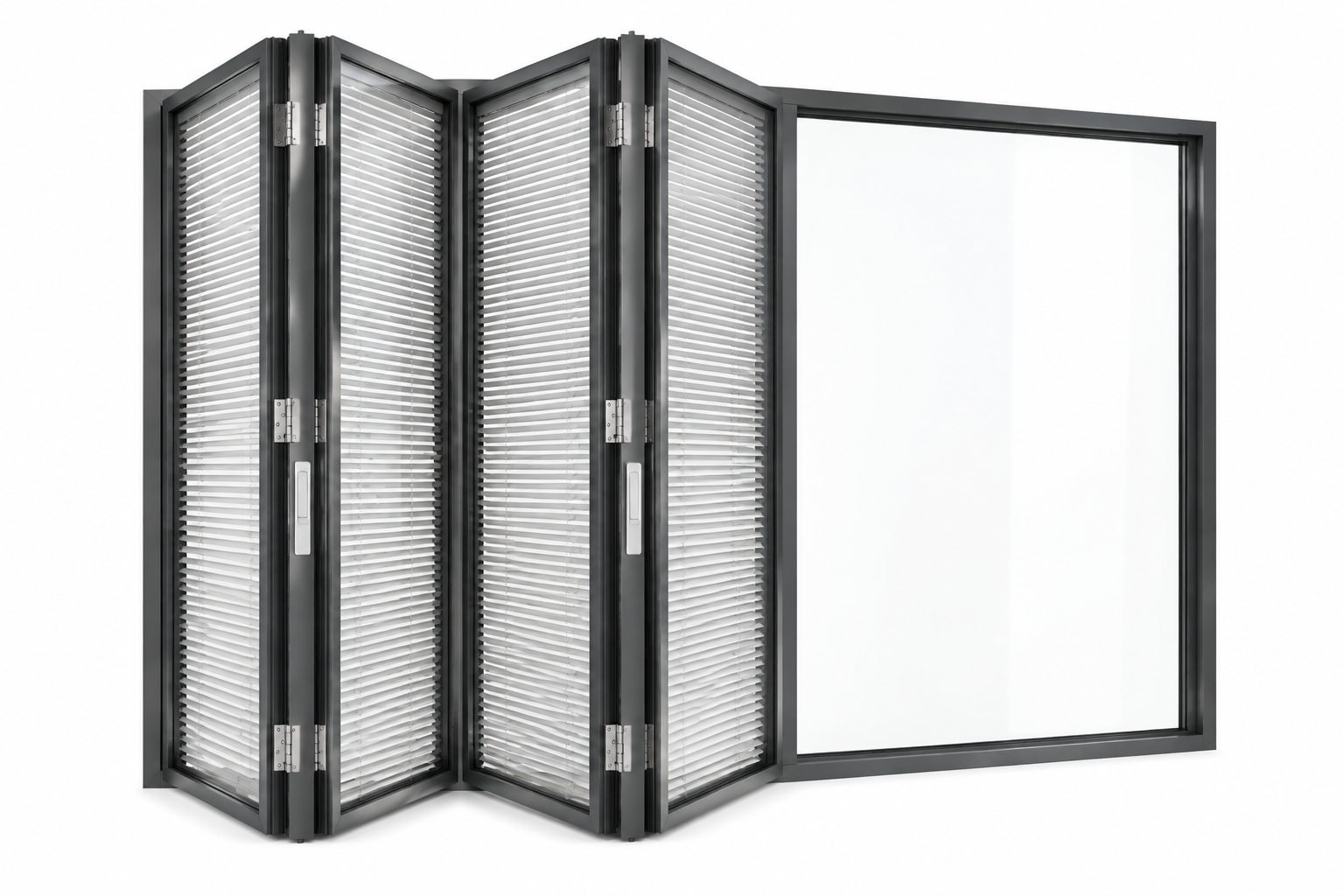

Built to architectural-grade specifications, our doors utilize 6063-T5 aluminum alloy and are finished with AAMA 2604 powder coatings to withstand intense UV exposure and heavy snow. The integration of SS304 multi-point locking hardware and EPDM weatherstripping guarantees that each unit maintains its DP50 rating and acoustic performance over decades of operation.
10-Year WarrantyASTM
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Bi-Fold Door
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Bi-Fold Door |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.22 Btu/h·ft²·°F |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.21 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | 38 dB |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- ASTM E283 Certified (Certificate ID: QTM-2023-42-01)Download report (PDF)
- ASTM E330 Certified (Certificate ID: QTM-2023-42-01)Download report (PDF)
- ASTM E331 Certified (Certificate ID: QTM-2023-42-01)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite

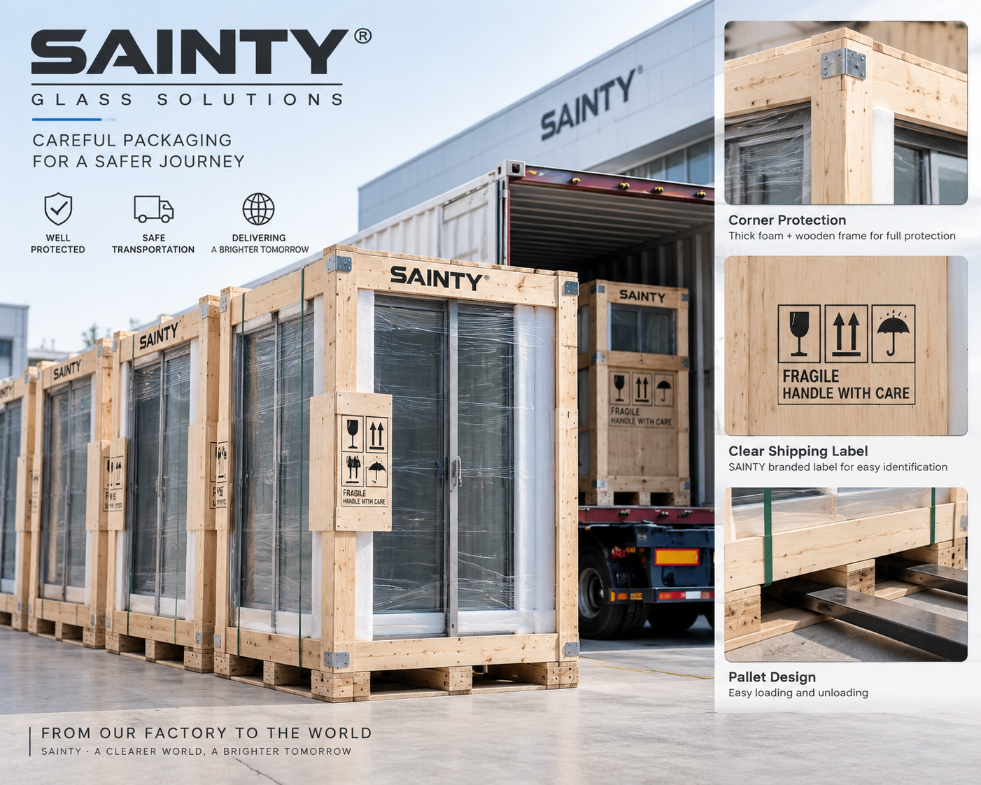

100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

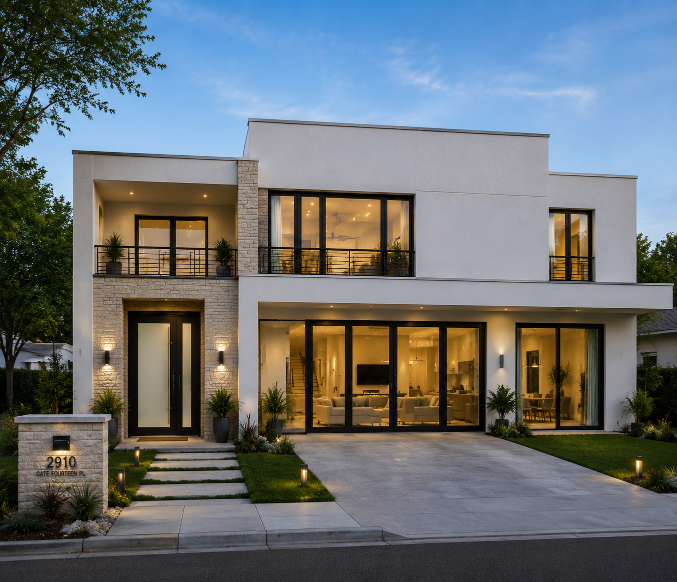

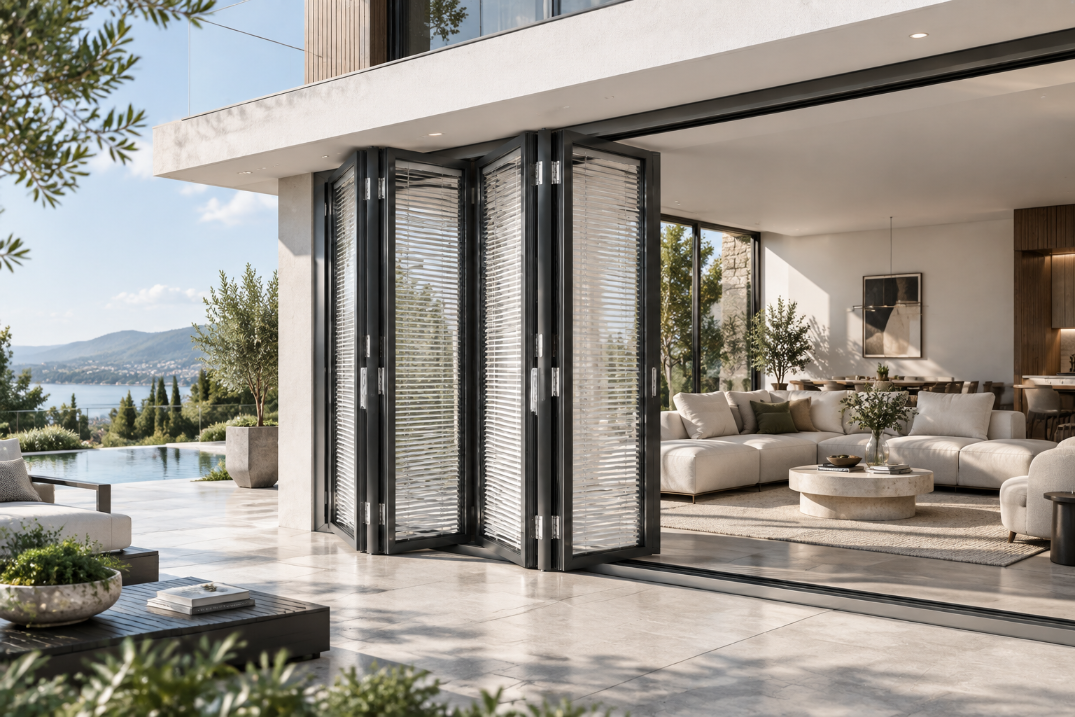

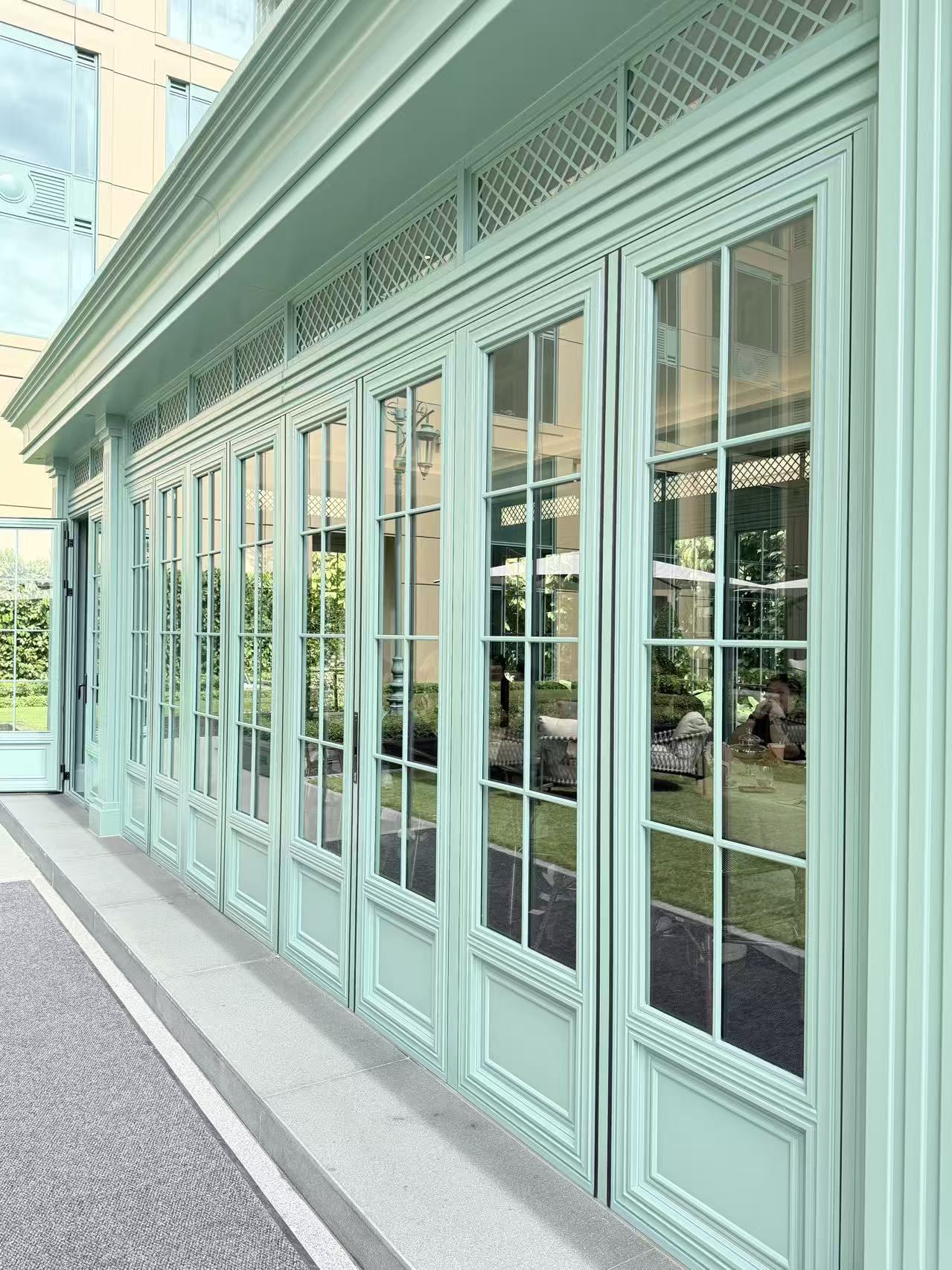

This gallery displays real home project photos featuring the SAINTY™ Thermally Broken Aluminum Bi-Fold Door installed in a cold climate region. These iron-look folding doors utilize triple-pane insulated Low-E glass and advanced weatherstripping to meet rigorous thermal demands in Colorado. The powder-coated black finish provides a sleek aesthetic while the high-performance 6063-T5 aluminum frames ensure structural integrity, offering an ideal architectural solution for residential applications requiring superior insulation and modern slim-profile styling.

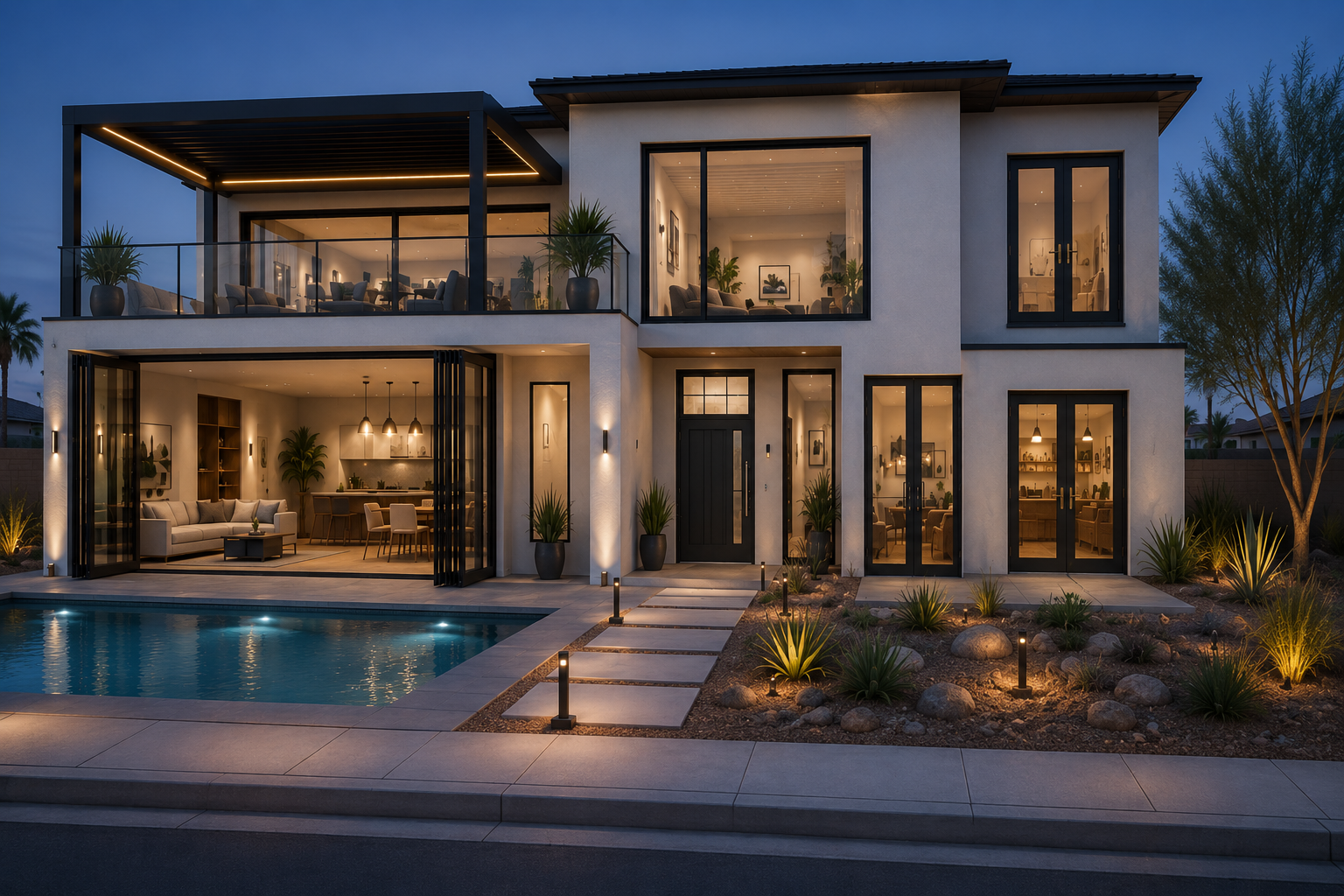

3D Design Renders
Live Test On Site
This gallery features live test clips and installation footage of the SAINTY thermally broken aluminum bi-fold door, showcasing real-time commissioning on a residential jobsite. Engineered specifically for cold climate applications in Colorado, these units utilize triple-pane insulated glass and a black powder-coated finish to ensure thermal stability. The footage demonstrates the smooth operation of the folding mechanism and the integration of retractable screens, proving the door's performance in demanding high-altitude environments.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Thermally Broken Aluminum Bi-Fold Door
SAINTY ASTM-Certified Aluminum Bi-Fold Doors installation guide for Colorado Title 24 and cold climate energy compliance. Technical documentation covers Rough Opening Measurements, Shim Placement at jambs and head track, EPDM Gasket Sealing, and Multi-Point Lock Calibration to ensure DP50 wind load performance. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY™ Thermally Broken Aluminum Bi-Fold Door Precision Installation & Sealing
- Expert guide on installing the heavy-duty 6063-T5 aluminum frame and tracking systems, ensuring the structure supports triple-pane insulated glass loads.
- Demonstration of hardware adjustment for stainless steel rollers and EPDM weatherstripping to achieve ASTM E283 air infiltration standards.
- Final performance verification of the thermal break system, ensuring a seamless fold and tight seal for Colorado's cold climate conditions.
Key Moments: 00:00 – Frame Positioning & Measurement|00:45 – Track Installation & Mounting|01:30 – Leaf Assembly & Hardware Tuning|02:15 – Final Weatherstripping & Seal Test
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
Successful installation of the SAINTY™ Bi-Fold Door in cold climates requires strict adherence to the ProSill™ flashing system to prevent thermal bridging at the threshold. Installers must ensure the rough opening is perfectly level, as the heavy triple-pane panels require precise track alignment for smooth operation. Use high-performance low-expansion foam and EPDM perimeter gaskets to maintain the 0.22 U-Factor rating.
We recommend shimming at every hinge point and locking station. Because of the thermal expansion differences between the aluminum frame and the building structure in Colorado, a minimum 3/8-inch expansion gap is required, filled with architectural-grade sealant compliant with AAMA 800 standards.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-Year Structural Warranty on the aluminum extrusion and thermal break integrity, alongside a 5-year warranty on SS304 hardware and EPDM seals, provided the unit is installed to ASTM E2112 standards.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What U-Factor performance can I expect for Colorado's cold climate requirements?
Our triple-pane Bi-Fold Doors achieve a U-Factor of 0.22 Btu/h·ft²·°F when tested to NFRC 100-2020 standards. This performance level is achieved through a 34mm PA66 GF25 polyamide thermal break and argon-filled 5mm+12A+5mm+12A+5mm glazing, ensuring compliance with strict regional energy codes for thermal retention.
How does this door handle high wind loads and air infiltration at high altitudes?
The system is tested to AAMA/WDMA/CSA 101/I.S.2/A440 and achieves a design pressure rating of DP50. It maintains an air infiltration rate of no higher than 0.06 cfm/ft² at 1.57 psf per ASTM E283, utilizing multi-layered EPDM weatherstripping to prevent drafts and heat loss in exposed mountain environments.
Are these doors compliant with local Colorado building codes for water resistance?
Yes, our Bi-Fold Doors are engineered to a water penetration resistance class of 720 Pa (15 psf) minimum test pressure. This rating ensures that even during driving sleet or heavy rain, the internal drainage channels and ProSill™ compatible thresholds prevent moisture ingress as per ASTM E331 requirements.
Do SAINTY thermally broken aluminum bi-fold doors comply with Colorado energy code requirements?
Yes. SAINTY Thermally Broken Aluminum Bi-Fold Door units are fully compliant with Colorado energy code requirements, achieving a certified U-Factor of 0.22 Btu/h·ft²·°F and an SHGC of 0.21 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
