| Aluminum Alloy | 6063-T5 Architectural Grade |
|---|---|
| Performance Class | AAMA CW/AW Rated |
| Finish | Powder Coating-Sandstone (AAMA 2604/2605) |
| Design Pressure | DP30 - DP70 (ASTM E330)✓ ASTM E330/E330M-2014(R2021) Certified (Certificate ID: 220114006SHF-002) |
| Hardware Material | 304 Stainless Steel |
| Water Resistance | 720 Pa (15 psf) Minimum✓ ASTM E547-2000(R2016） Certified (Certificate ID: 220114006SHF-002) |
| Lead Time | 25–45 Days (Post-CAD Approval) |
| Frame Depth | 140mm (5.5 inches) with internal reinforcement |
SAINTY™ Fast Assembled Aluminum Railing
NFRC-rated performance data for Canada
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Fast Assembled Aluminum Railing: Architectural Specifications & NFRC & Energy Code Compliance
Fast Assembled Aluminum Railing is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in Canada — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- Design pressure (ASTM E330):
- DP30 - DP70 (ASTM E330)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Sandstone
- Markets served:
- Canada
- Lead time:
- 25–45 Days (Post-CAD Approval)
- Warranty:
- 10-year structural warranty
- Order visibility:
- 100% transparent 11-step online order tracking
The SAINTY™ Fast Assembled Aluminum Railing is a high-performance architectural system specifically engineered for residential and commercial patio applications across Canada. Featuring an AAMA CW/AW rating, this railing system utilizes premium 6063-T5 aluminum alloy finished in a durable Sandstone powder coating to withstand extreme northern climates. Designed for rapid jobsite integration, the system ensures structural integrity while meeting stringent local building safety standards for exterior fall protection.
100% Tracking — from Drawings to Site
SAINTY provides total procurement certainty through our 100% 11-step transparent order tracking system. From the moment your patio railing CAD drawings are finalized, you can access the SAINTY app to view real-time visual progress of extrusion, Sandstone powder coating application, and final QC assembly, ensuring your project timeline remains secure.
Our architectural-grade builds exceed standard residential kits by utilizing heavy-duty 6063-T5 alloys and SS304 hardware. Every batch undergoes rigorous testing to meet AAMA CW/AW specifications, ensuring long-term color retention and structural stability against high wind loads and salt exposure common in diverse Canadian environments.
10-Year WarrantyAAMA
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Door
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Doors
SAINTY™ Aluminum Bi-Fold Doors
SAINTY™ Powder Coated Aluminum Casement Windows
SAINTY™ Triple-Pane Aluminum Casement Windows
SAINTY™ Water Penetration Resistant Aluminum Storefront Doors
Technical Specifications
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- ASTM E283/E283M-2019 Certified (Certificate ID: 220114006SHF-002)Download report (PDF)
- ASTM E547-2000(R2016） Certified (Certificate ID: 220114006SHF-002)Download report (PDF)
- ASTM E331-2000(R2016) Certified (Certificate ID: 220114006SHF-002)Download report (PDF)
- ASTM E330/E330M-2014(R2021) Certified (Certificate ID: 220114006SHF-002)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Product Gallery
Project Cases
Drawings & Installation Manuals
Installation Manual — SAINTY™ Fast Assembled Aluminum Railing
SAINTY Fast Assembled Aluminum Railing installation manual provides comprehensive technical guidance for AAMA CW/AW rated patio systems. It details compliance with Canadian building codes and structural requirements for wind loads up to DP70. Key operations include Rough Opening Measurements, Post Anchor Bolt Installation, Internal Square Tube Fastening, and Sandstone Finish Protection during assembly. Download the full PDF manual below before rough-in.
Installation Videos

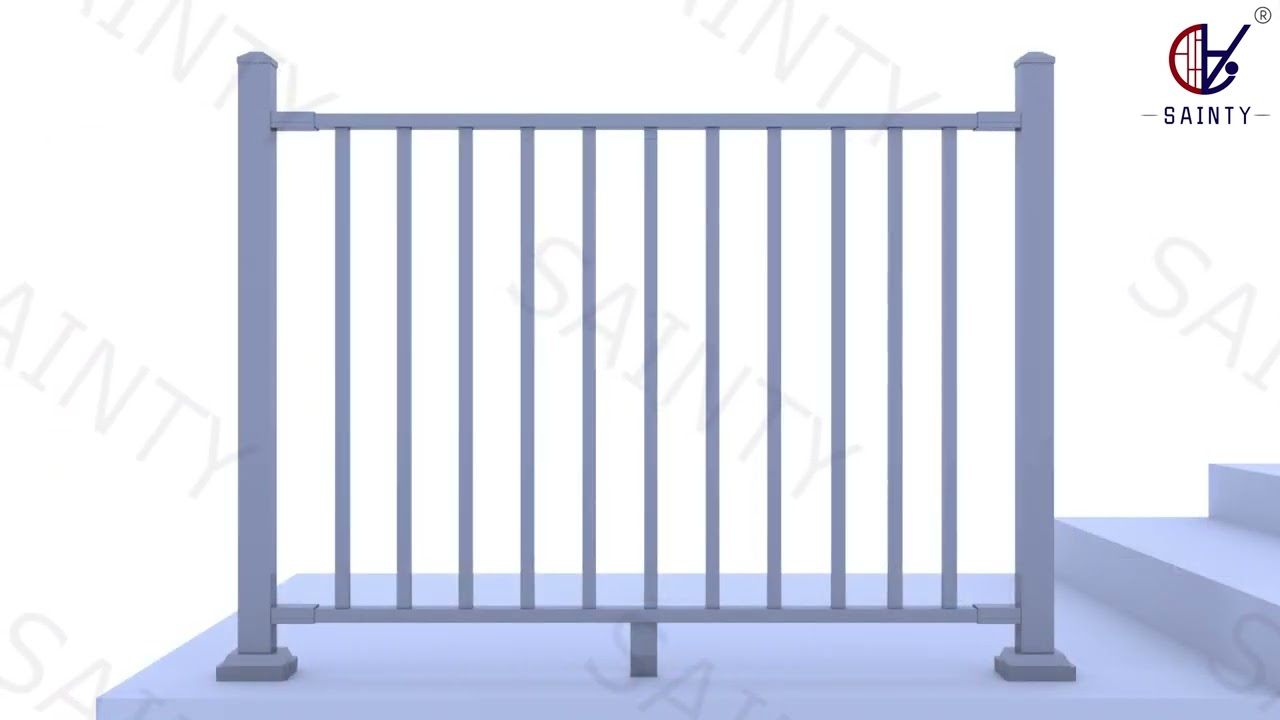

Watch: SAINTY™ Fast Assembled Aluminum Railing for Efficient Job-Site Installation
- Step-by-step demonstration of the modular interlocking system designed for rapid Patio assembly without specialized welding.
- Close-up of the 6063-T5 aluminum alloy components featuring a durable Sandstone Powder Coating for long-term weather resistance.
Key Moments: 00:00 – Modular component unboxing and preparation|00:45 – Secure post-to-base plate anchoring|01:20 – Snap-lock railing panel integration
Watch: SAINTY™ Fast Assembled Aluminum Railing Durability and Fit-and-Finish
- Visual inspection of the AAMA-certified finish and 304 stainless steel hardware ensuring DP30-DP70 wind load compliance.
- Demonstrates how the pre-engineered components reduce labor costs in the Canada market through simplified mechanical fastening.
Key Moments: 00:00 – Hardware alignment and structural integrity check|00:55 – Final tightening of concealed fasteners|01:40 – Completed installation for high-performance patio use
SAINTY™ Fast Assembled Aluminum Railing Installation Video
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.

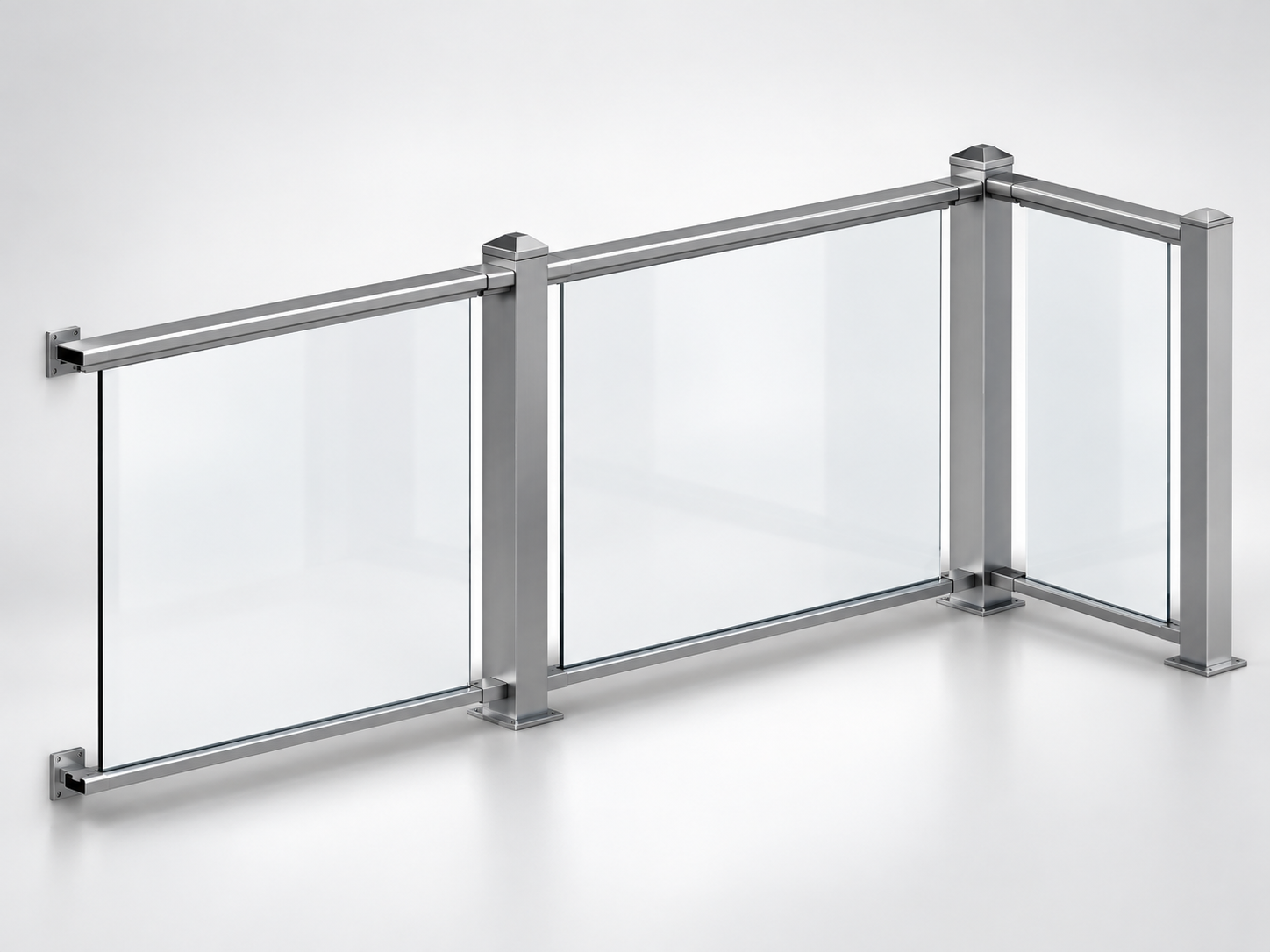

For the SAINTY™ Fast Assembled Aluminum Railing, professional ProSill™ integration involves securing the structural posts directly to the substrate with 304 stainless steel fasteners. Because the system utilizes a reinforced 5.5-inch outer frame profile for wider spans, it includes an internal square tube reinforcement to maintain rigidity under lateral loads.
A critical troubleshooting step for this model involves the top square tube assembly: the reinforcement tube must be secured to the door/railing frame with screws prior to final installation. Attempting to fasten this tube after the frame is set may expose unsightly screw heads, compromising the clean Sandstone architectural finish.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-Year Structural Warranty on the 6063-T5 aluminum framework and a 5-year warranty on all SS304 hardware components, ensuring compliance with AAMA CW/AW performance benchmarks and Canadian building safety codes.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What structural standards does this railing system meet for Canadian patios?
The system is tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards, achieving a CW/AW rating. It is designed to handle design pressures (DP) between 30 and 70 psf, making it suitable for high-altitude or coastal Canadian regions where wind load requirements are significantly higher than standard residential builds.
Is the Sandstone finish resistant to corrosion and fading?
Yes, the finish is applied to AAMA 2604 standards at a minimum, with AAMA 2605 available for high-exposure environments. These coatings are specifically formulated to resist UV degradation and salt spray, ensuring the railing maintains its aesthetic and structural integrity without the peeling or oxidation common in lower-grade alternatives.
What is the typical lead time for delivery to Canada?
The lead time is consistently between 25 and 45 days following the final approval of CAD shop drawings. This window accounts for precision manufacturing, 11-step quality control checkpoints, and international logistics, ensuring the product arrives site-ready for your patio installation.
