| Aluminium Alloy | 6063-T5 Architectural Grade |
|---|---|

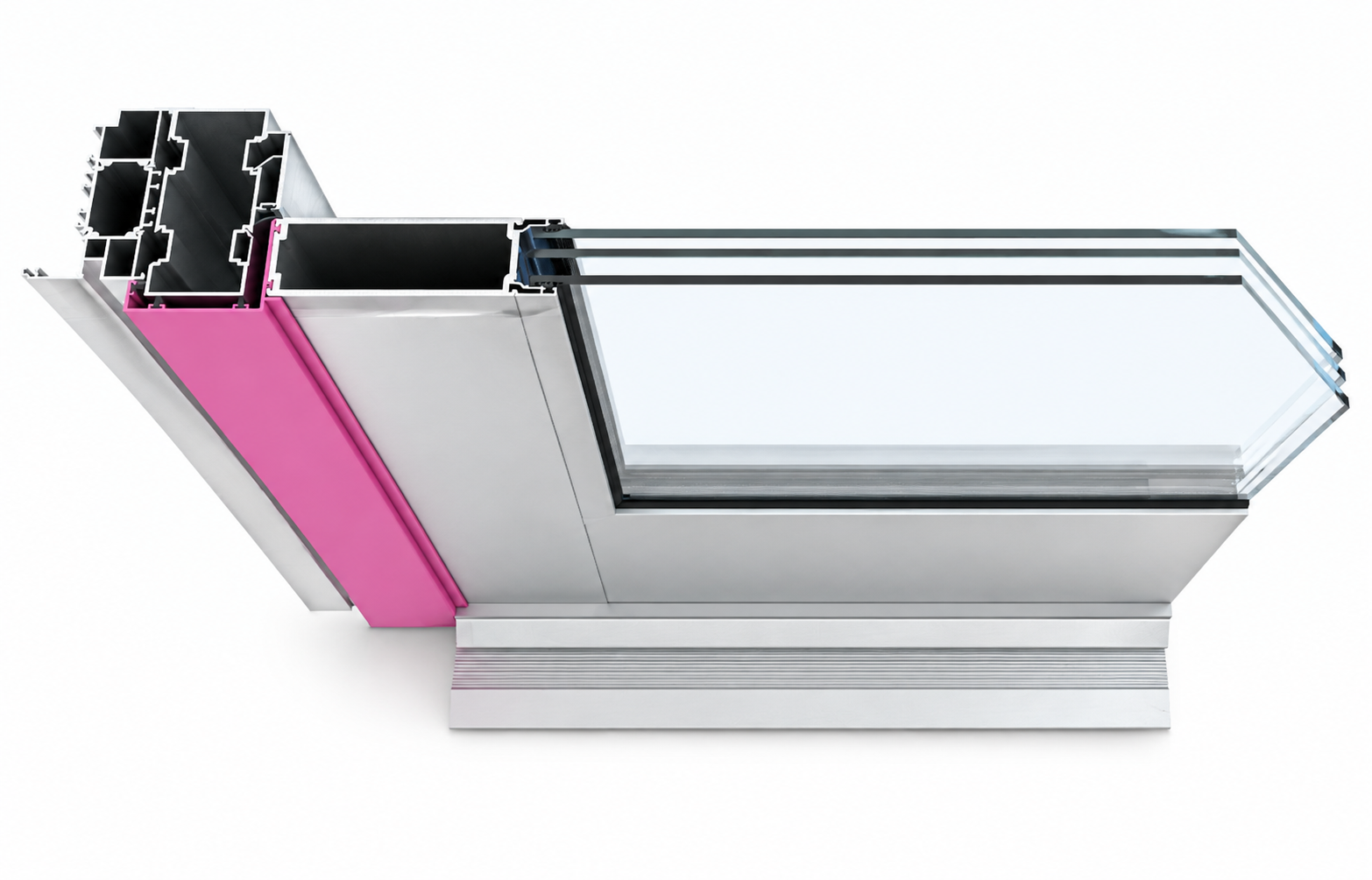

| Thermal Break | 34mm PA66 GF25 Polyamide |
| Water Resistance | 720 Pa (15 psf) Class |
| Design Pressure | DP70 (ASTM E330)✓ TAS 202(Structural only) Certified (Certificate ID: FL48013) |
| U-Factor | 0.28 Btu/h·ft²·°F (NFRC 100) |
| Glazing Build-up | 6mm+12A+6mm+12A+6mm Triple-Pane |
| Finish | AAMA 2605 Powder Coating White |
| Air Infiltration | 0.05 cfm/ft² (ASTM E283) |
| Lead Time | 35-45 Days Post-CAD Approval |

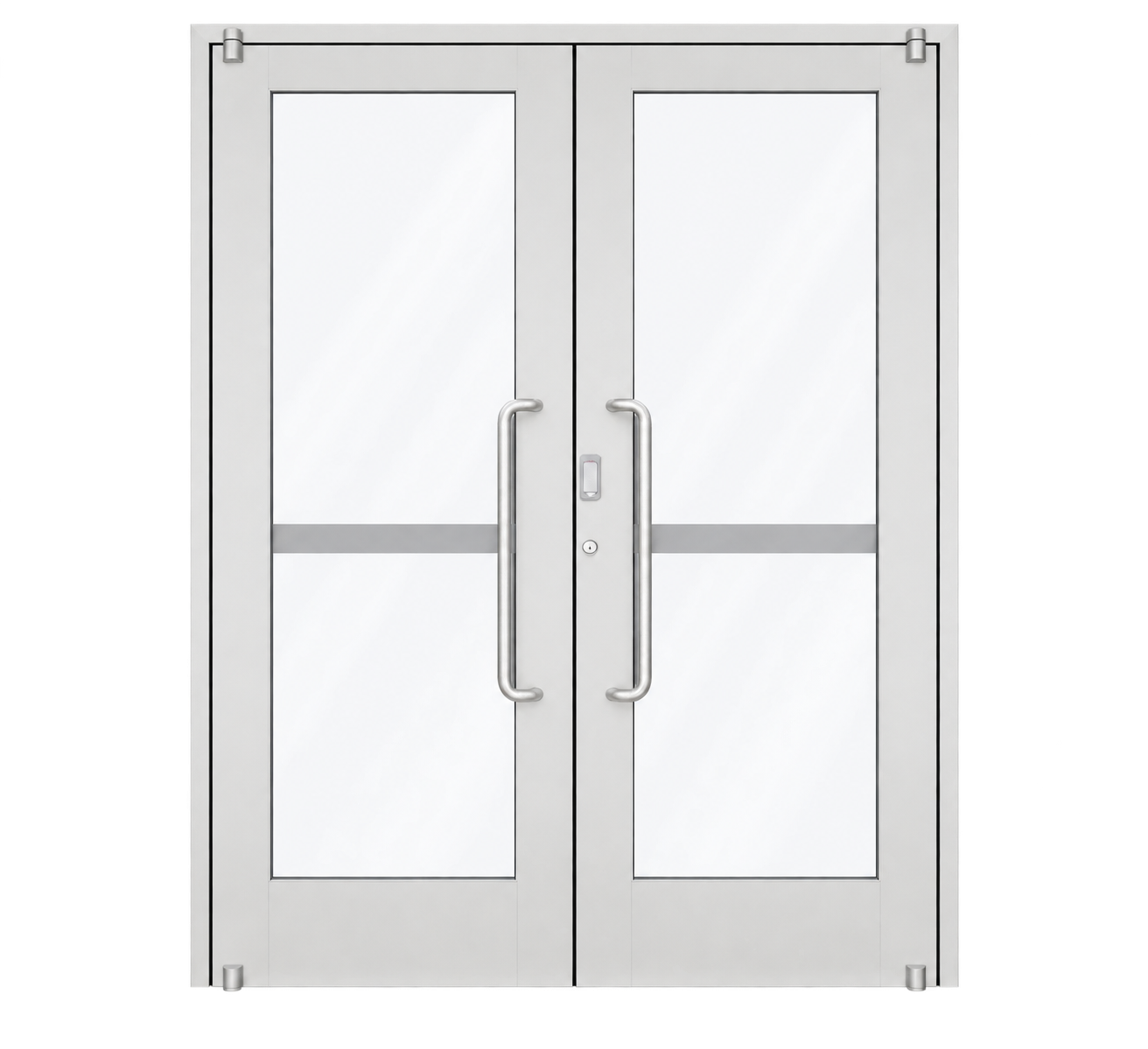

SAINTY™ Water Penetration Resistant Aluminum Storefront Doors
NFRC-rated performance data for Florida
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Water Penetration Resistant Aluminum Storefront Doors: Architectural Specifications & NFRC & Energy Code Compliance
Water Penetration Resistant Aluminum Storefront Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in Florida — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.28 Btu/h·ft²·°F (NFRC 100)
- Air infiltration (ASTM E283):
- 0.05 cfm/ft² (ASTM E283)
- Design pressure (ASTM E330):
- DP70 (ASTM E330)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-White
- Markets served:
- Florida
- Lead time:
- 35-45 Days Post-CAD Approval
- Warranty:
- 10-year structural warranty
The SAINTY™ Water Penetration Resistant Aluminum Storefront Door is engineered specifically for high-exposure commercial buildings throughout Florida. Designed to meet the stringent requirements of the High Velocity Hurricane Zone (HVHZ), these storefront doors utilize advanced triple-pane insulated glass and heavy-duty 6063-T5 aluminum extrusions to provide superior structural integrity and moisture protection. Each unit is customized to architectural specifications, ensuring compliance with local energy codes and Florida building standards.
100% Tracking — from Drawings to Site
SAINTY ensures total project accountability through our proprietary 100% 11-step transparent order tracking system. B2B clients and developers can monitor every phase of production in real-time through the SAINTY app, from initial CAD approval and extrusion to final crating and logistics, providing verifiable proof of manufacturing milestones.
Our architectural-grade build quality is defined by precision-engineered thermal breaks and a durable AAMA 2605 powder-coated white finish. This commitment to engineering excellence ensures that every storefront system maintains its aesthetic and structural performance under the intense UV and salt-spray conditions typical of Florida coastal environments.
10-Year WarrantyMiami-Dade NOA
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Water Penetration Resistant Aluminum Storefront Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Water Penetration Resistant Aluminum Storefront Doors |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.28 Btu/h·ft²·°F (NFRC 100) |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.05 cfm/ft² (ASTM E283) |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.

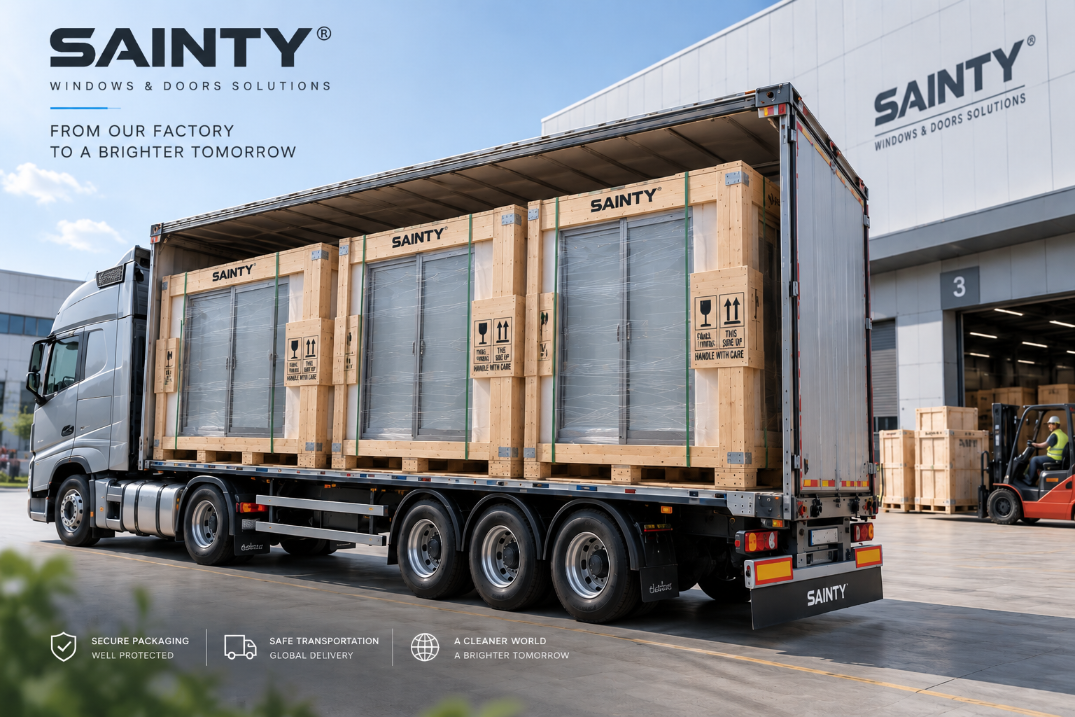

Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery

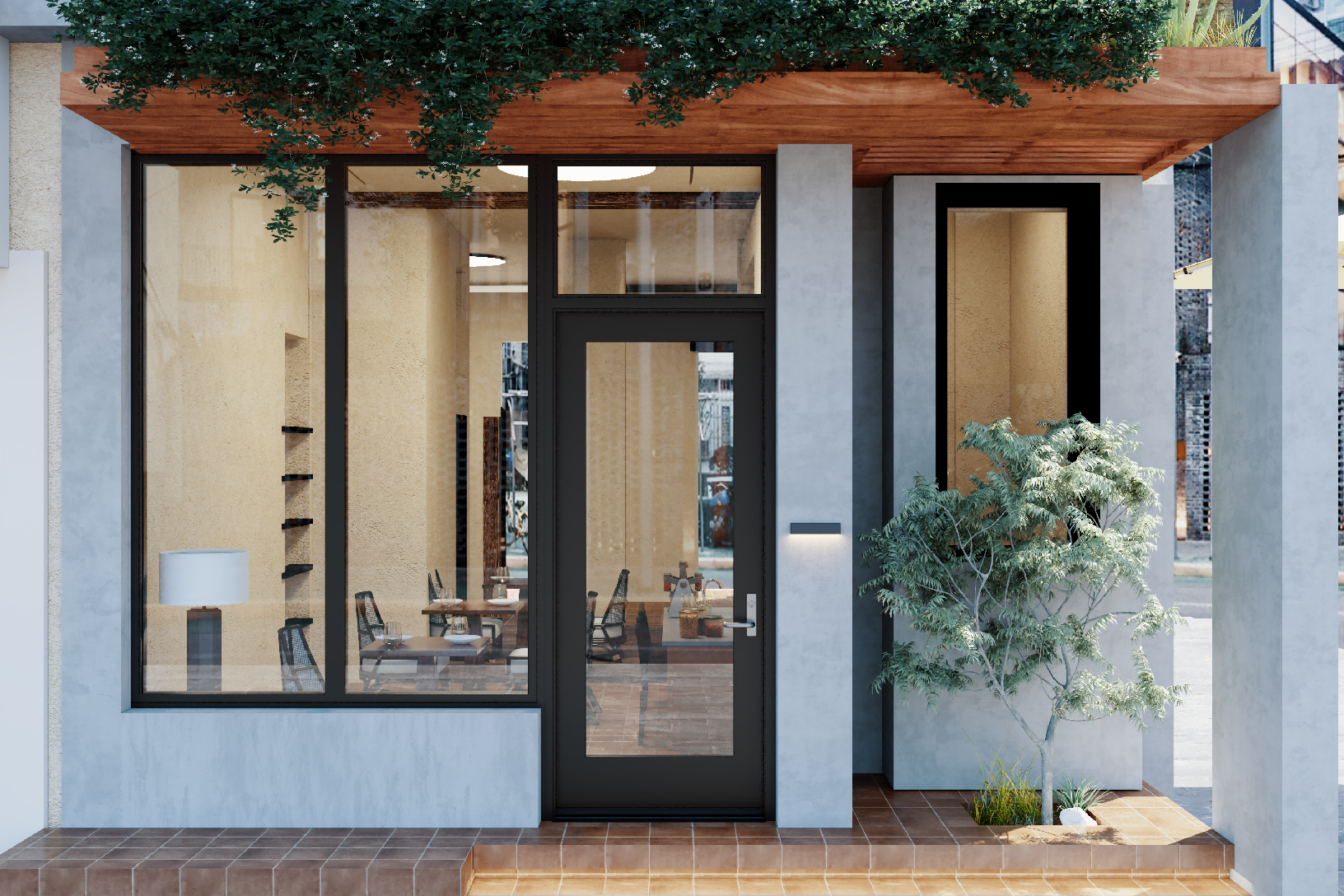

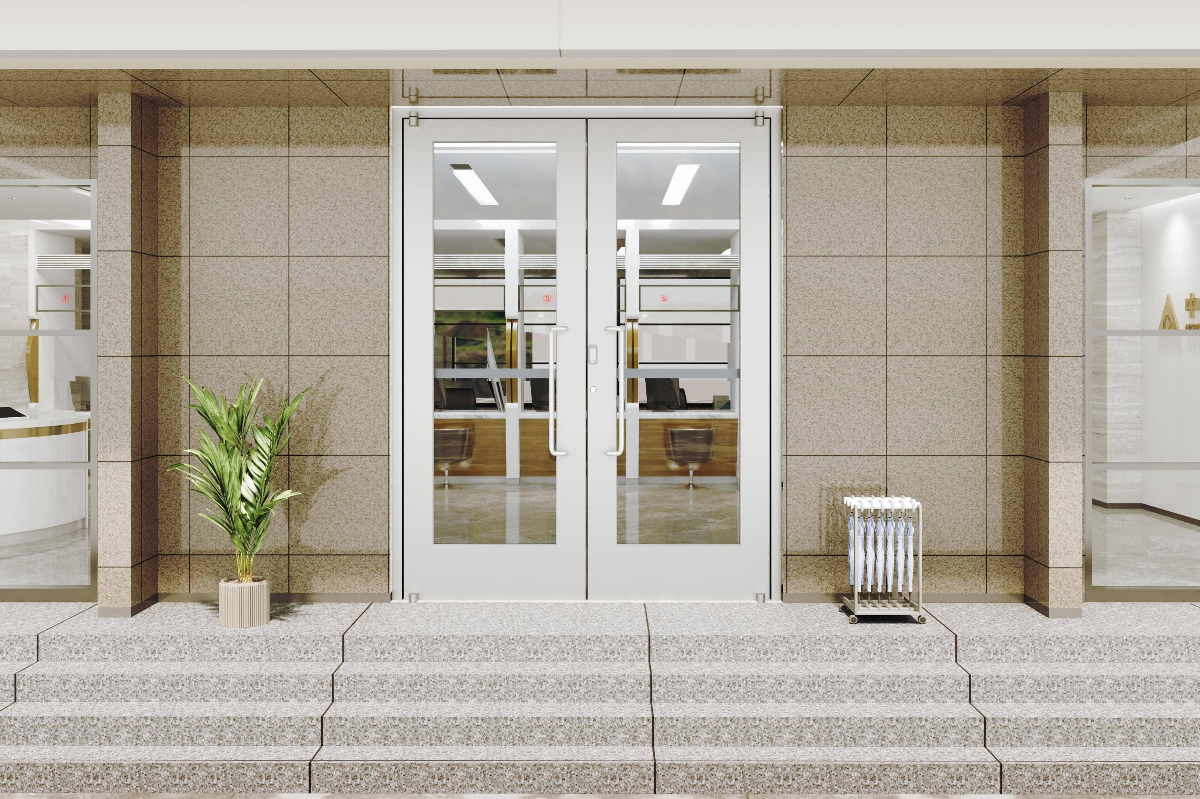

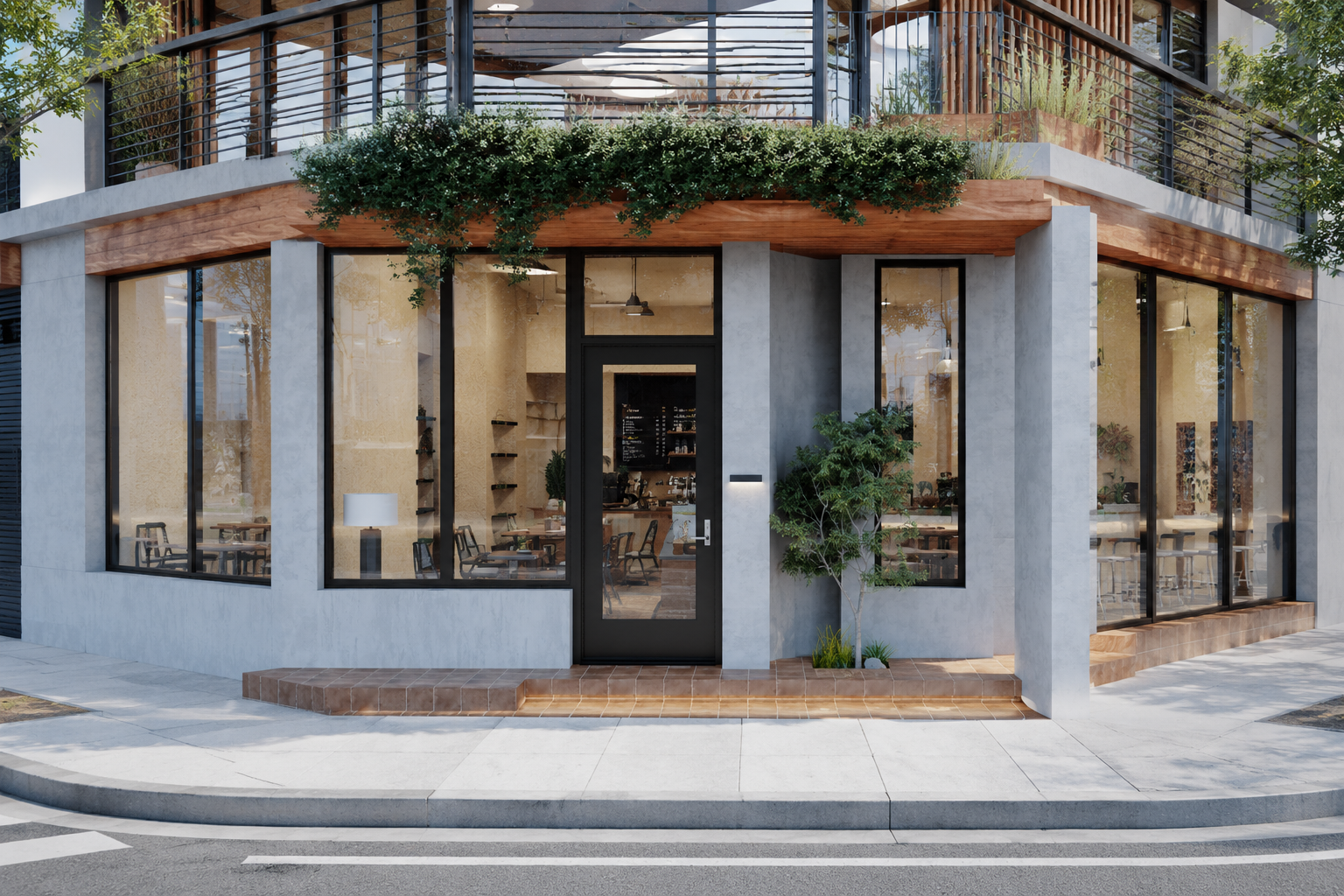

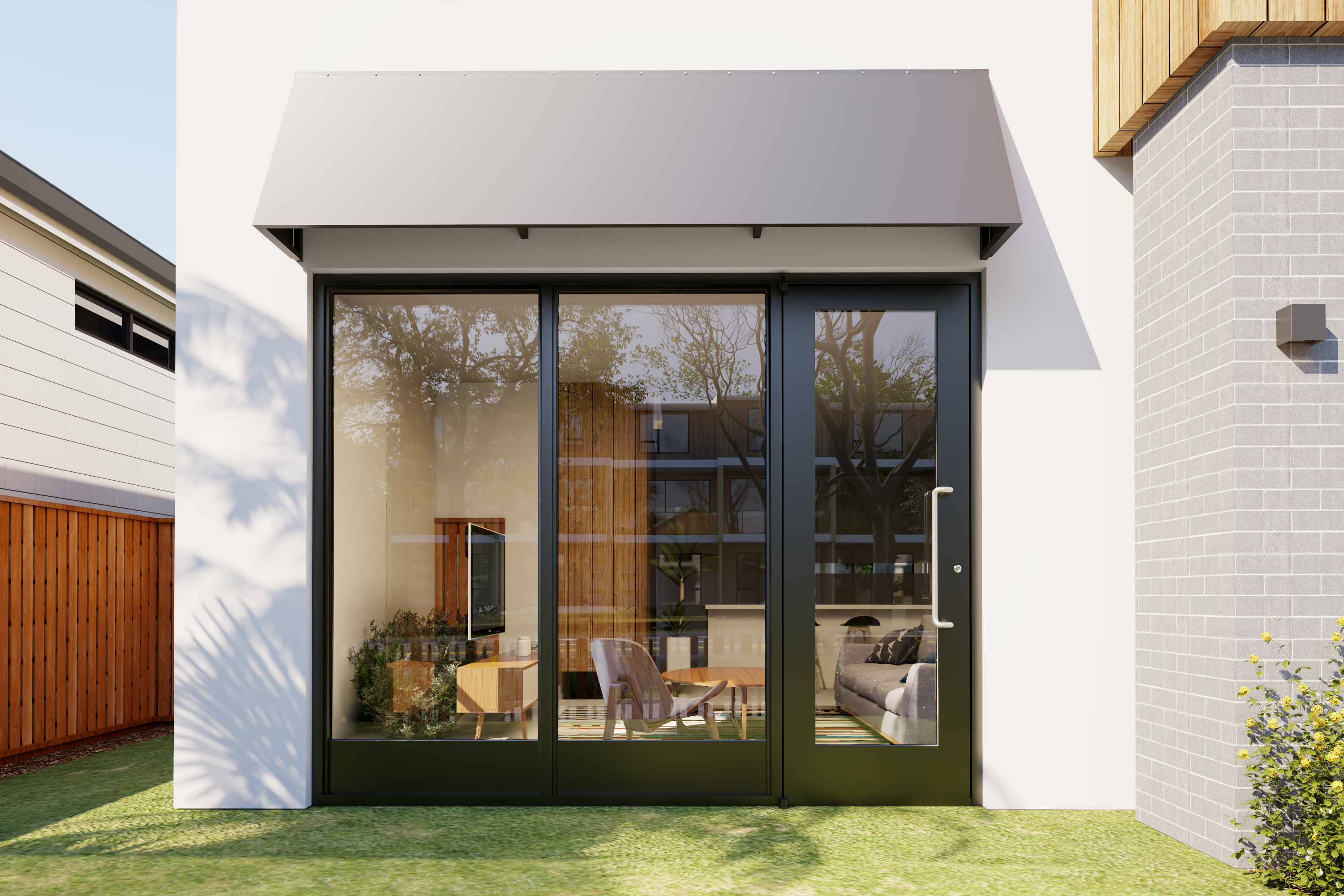

Project Cases
Drawings & Installation Manuals
Installation Manual — SAINTY™ Water Penetration Resistant Aluminum Storefront Doors
SAINTY NFRC-Certified Aluminum Storefront Doors are engineered for Florida Title 24 energy code compliance and tested for Water Penetration Prevention at 720 Pa. The technical manual covers critical Rough Opening Measurements, Shim Placement at jambs and sill, EPDM Gasket Sealing, and Multi-Point Lock Calibration to ensure DP70 performance. Download the full PDF manual below before rough-in.
Installation Videos

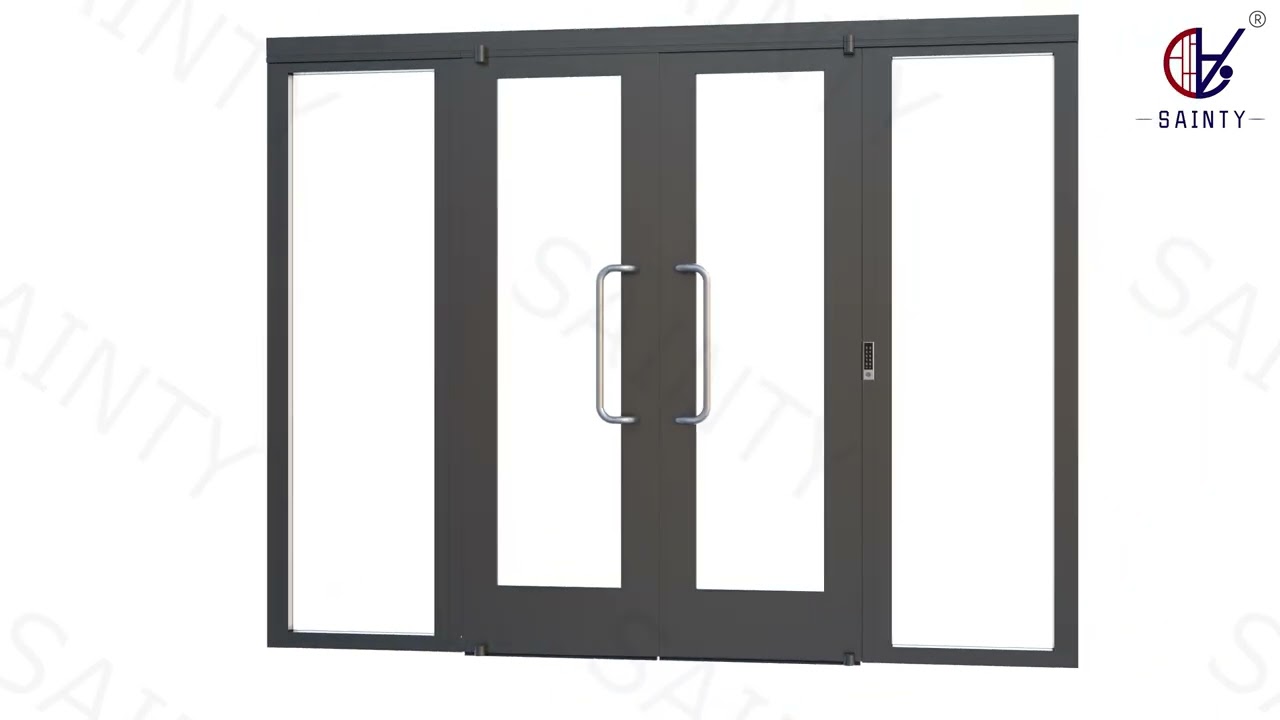

Watch: SAINTY™ Water Penetration Resistant Aluminum Storefront Doors Precision Installation
- Step-by-step assembly featuring frame alignment and glass setting to ensure DP70 wind load performance and 720 Pa water resistance.

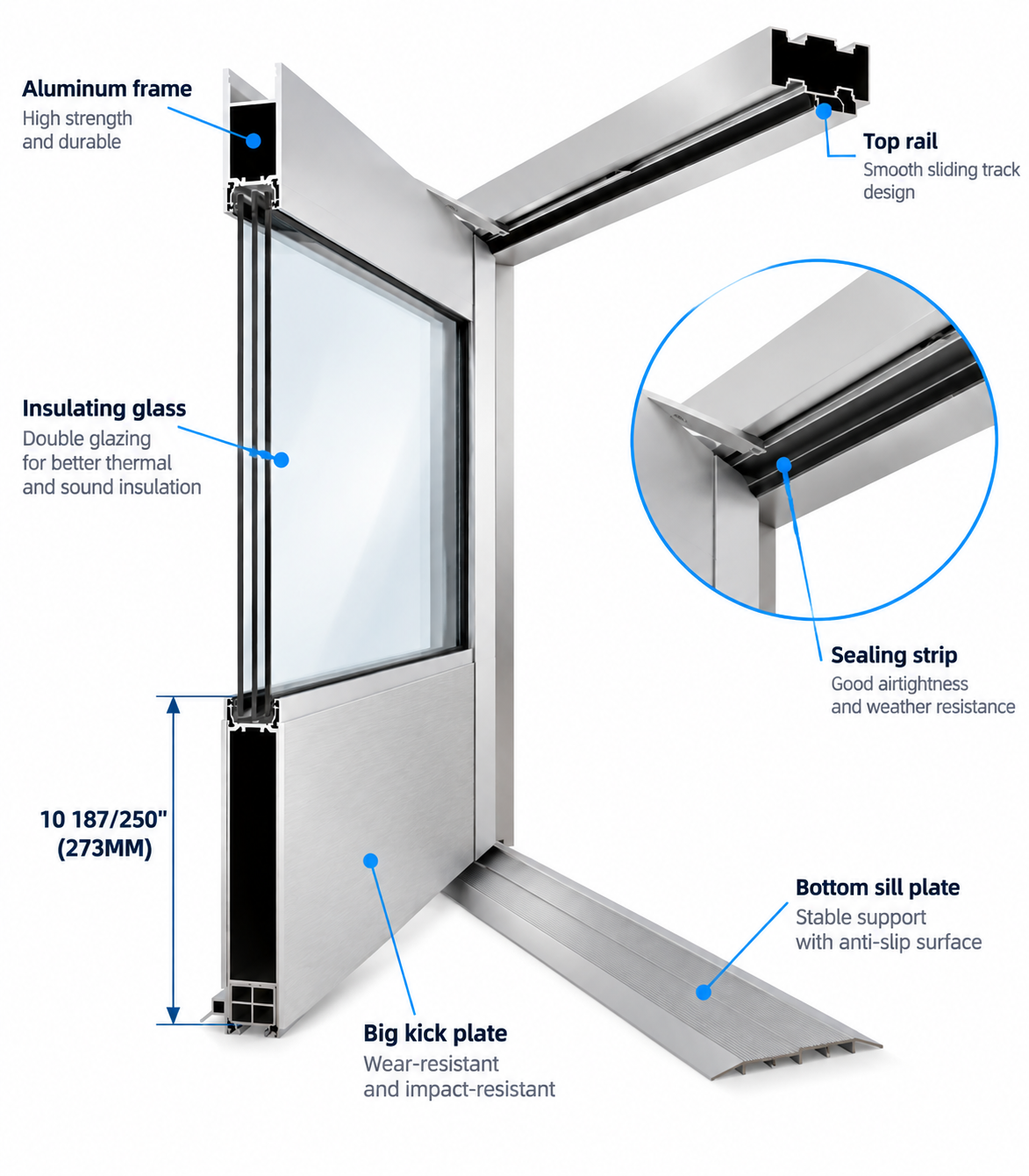

- Precision hardware integration with 304 stainless steel handles and EPDM sealing to prevent air infiltration in coastal Florida environments.
- Final quality inspection of the white powder-coated finish and triple-pane insulated glass for long-term commercial durability.
Key Moments: 00:00 – Frame Measurement and Positioning|00:45 – Storefront Door Frame Installation|01:20 – Triple-Pane Glazing and Hardware Fitting|01:55 – Final Sealing and Operation Testing
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
ProSill™ installation guidance for these storefront systems emphasizes the critical nature of the sub-sill flashing and perimeter sealant. Installers must ensure the rough opening is square within 1/8 inch and that all shim placement occurs at the jambs and head to allow the sill to weep moisture effectively through the integrated drainage channels.
For Florida installations, the application of structural sealant at the frame-to-wall interface must be continuous to maintain the 720 Pa water penetration rating. Ensure all SS304 handle hardware and multi-point locking mechanisms are calibrated for smooth engagement before final exterior caulking.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-Year Structural Warranty on the 6063-T5 aluminum frames and a 5-year warranty on all SS304/SS316 hardware components, ensuring long-term performance under DP70 wind loads and Miami-Dade NOA compliance.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Are these storefront doors compliant with Miami-Dade NOA standards?
Yes, these doors are tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards and engineered to meet Miami-Dade NOA requirements for High Velocity Hurricane Zones. With a design pressure rating of DP70 and water penetration resistance tested to 720 Pa (15 psf) according to ASTM E331, they provide the highest level of protection against Florida's extreme tropical storm conditions.

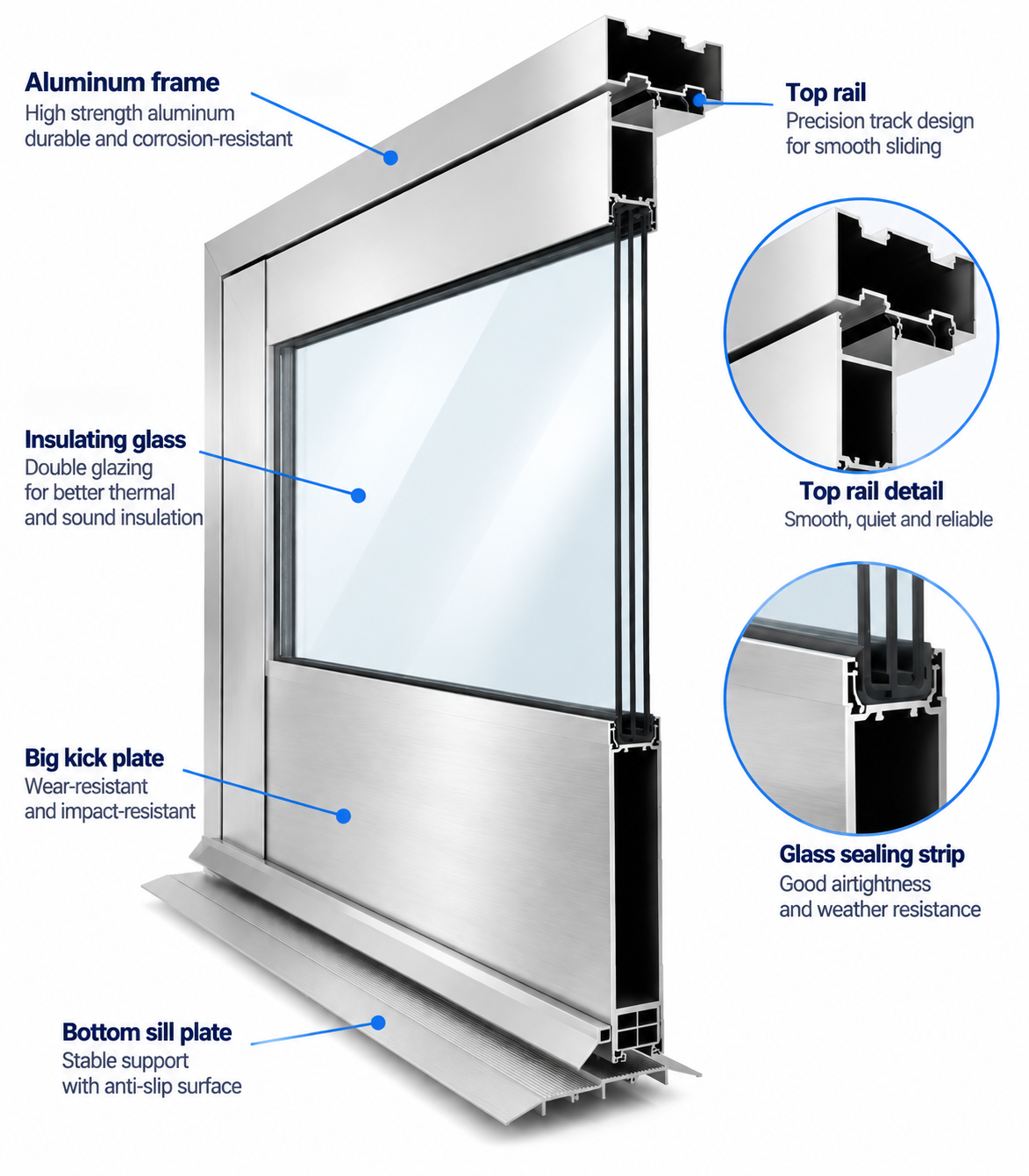

What glazing configuration is used to meet Florida energy codes?
We utilize a triple-pane insulated glass build-up, typically 6mm+12A+6mm+12A+6mm, with Low-E coatings to achieve a U-Factor between 0.20 and 0.32 per NFRC 100-2020. This configuration ensures an SHGC not higher than 0.23, which is critical for reducing solar heat gain and meeting building energy efficiency requirements in southern climates.
What is the typical lead time for commercial storefront orders?
The production lead time is 25–45 days after the final CAD shop drawings are approved by the client. This timeline includes precision cutting, CNC machining of hardware ports, powder coating to AAMA 2605 standards, and rigorous assembly quality checks before sea freight dispatch.
Do SAINTY water penetration resistant aluminum storefront doors comply with Florida energy code requirements?
Yes. SAINTY Water Penetration Resistant Aluminum Storefront Doors units are fully compliant with Florida energy code requirements, achieving a certified U-Factor of 0.28 Btu/h·ft²·°F (NFRC 100) when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
