| U-Factor (NFRC 100) | 0.28 Btu/h·ft²·°F |
|---|---|
| Solar Heat Gain Coefficient (SHGC) | 0.22 |
| Visible Transmittance (VT) | 0.52 |
| Air Infiltration (ASTM E283) | ≤ 0.06 cfm/ft² |
| Acoustic Rating (STC) | 38 dB |
| Design Pressure (ASTM E330) | DP50 - DP70✓ TAS 202(Structural only)TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013) |
| Water Penetration Resistance | 720 Pa (15 psf) |

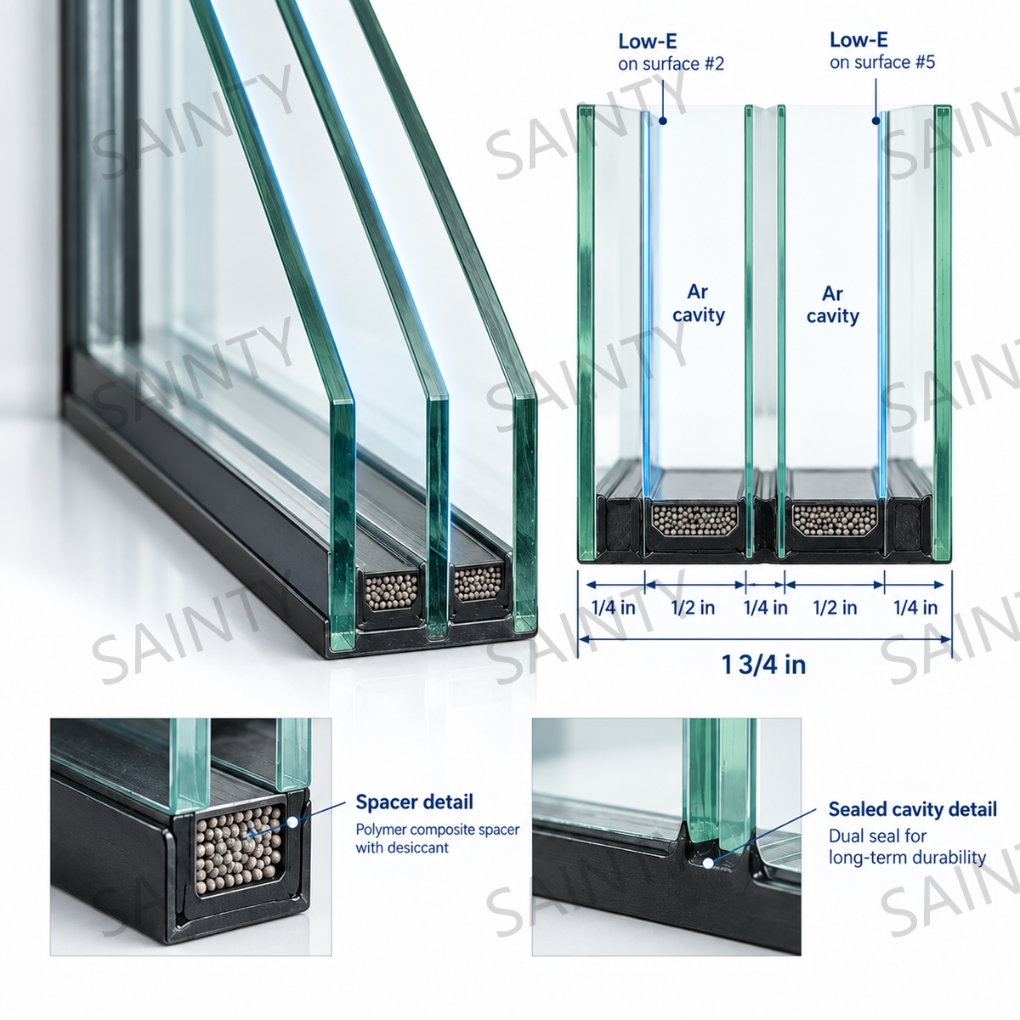

| Glass Build-up | 5mm + 12Argon + 5mm + 12Argon + 5mm Low-E |
| Alloy & Thermal Break | 6063-T5 / 34mm PA66 GF25 |
| Lead Time | 25–45 Days (Post-CAD) |
SAINTY™ Powder Coated Aluminum Casement Windows
0.28 Btu/h·ft²·°F for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Powder Coated Aluminum Casement Windows: Architectural Specifications & NFRC & Energy Code Compliance
Powder Coated Aluminum Casement Windows is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.28 Btu/h·ft²·°F compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.28 Btu/h·ft²·°F
- SHGC (NFRC 200):
- 0.22
- Visible Transmittance (NFRC 200):
- 0.52
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft²
- Acoustic rating (ASTM E90):
- 38 dB
- Design pressure (ASTM E330):
- DP50 - DP70
- Water penetration (ASTM E547):
- 720 Pa (15 psf)
- Frame material:
- 6063-T5 thermal break aluminum
The SAINTY™ Powder Coated Aluminum Casement Window is engineered for high-performance residential house applications throughout the United States. Featuring a robust thermally broken 6063-T5 aluminum frame and triple-pane insulated glass, this system is specifically designed for superior wind pressure resistance and energy efficiency. Each unit is built to NFRC standards, providing homeowners and builders with a durable, airtight solution that optimizes thermal comfort in diverse American climates.
100% Tracking — from Drawings to Site
SAINTY ensures total project certainty through our proprietary 100% 11-step transparent order tracking system. From the moment your CAD shop drawings are finalized, you can access the SAINTY app to view real-time visual progress, high-resolution production photos, and precise shipping milestones, eliminating the traditional opacity of international procurement.

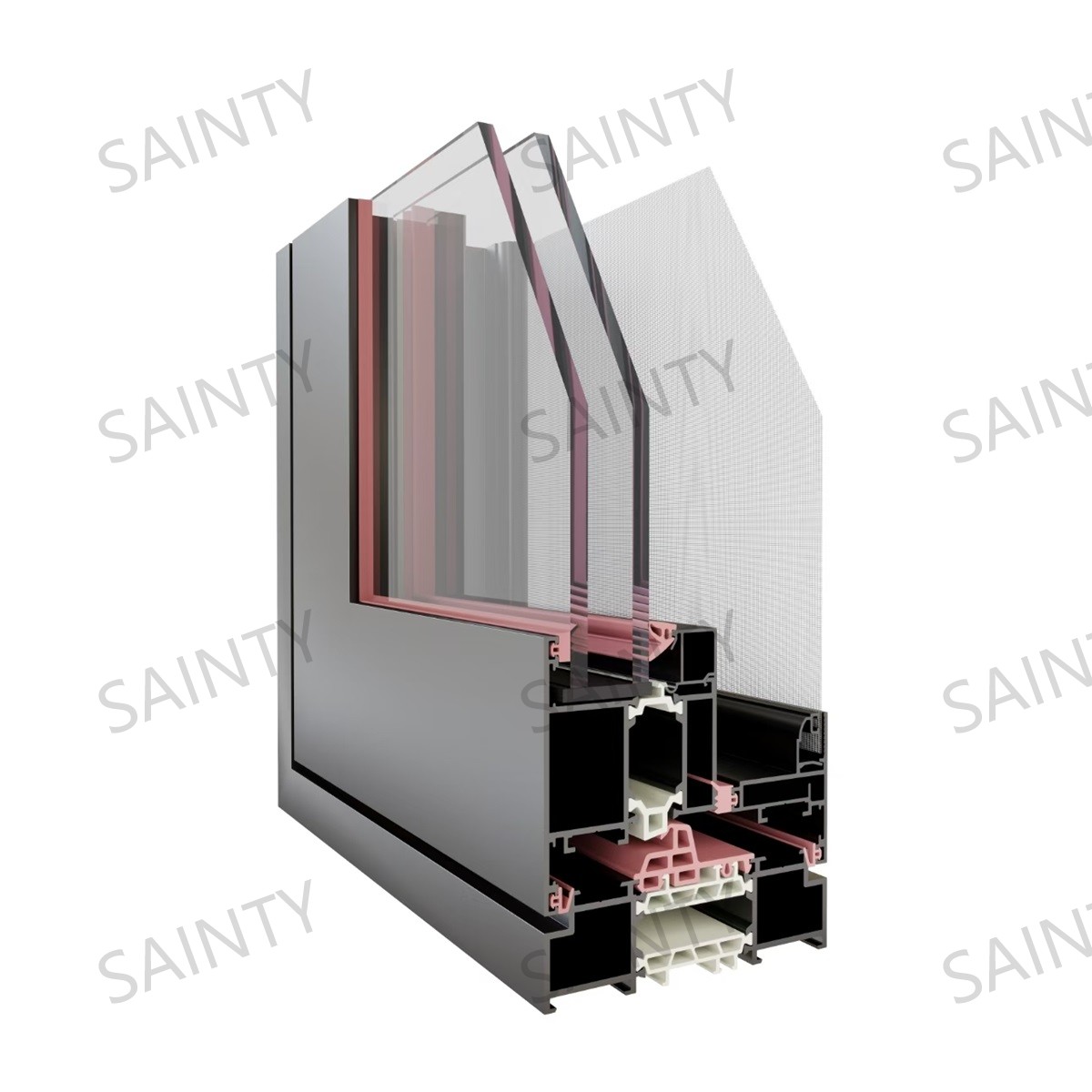

Our architectural-grade builds utilize 24mm to 34mm PA66 GF25 thermal breaks and AAMA 2604 powder coating finishes. This technical rigor ensures that every casement window maintains structural integrity and color consistency for years, even in high-exposure residential environments, backed by professional factory-direct logistics.
10-Year WarrantyNFRC，TAS 201，TAS 202，TAS 203，Florida Building Code (HVHZ)，Miami‑Dade County Test Protocol，Florida Building Code (FBC)

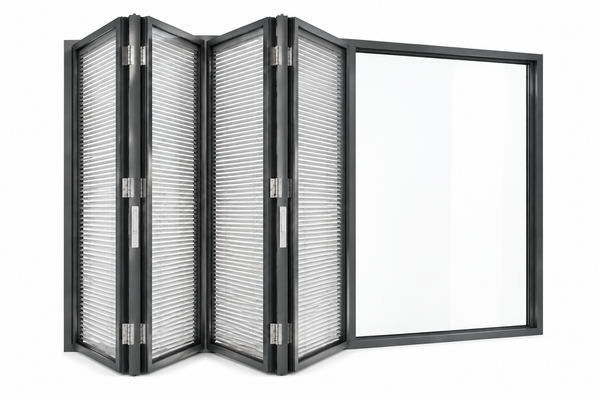

Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Powder Coated Aluminum Casement Windows
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Powder Coated Aluminum Casement Windows |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.28 Btu/h·ft²·°F |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.22 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | 38 dB |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202 TAS 201/203 (Large Mis) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only)TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

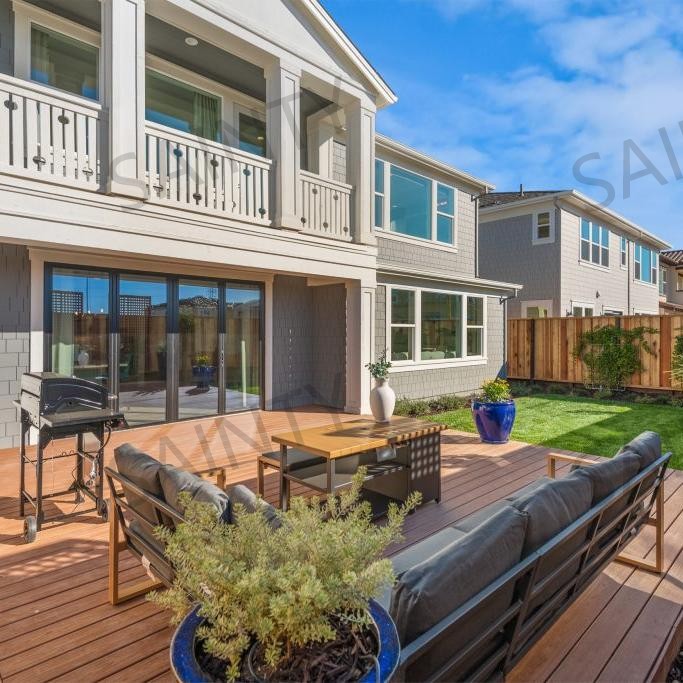

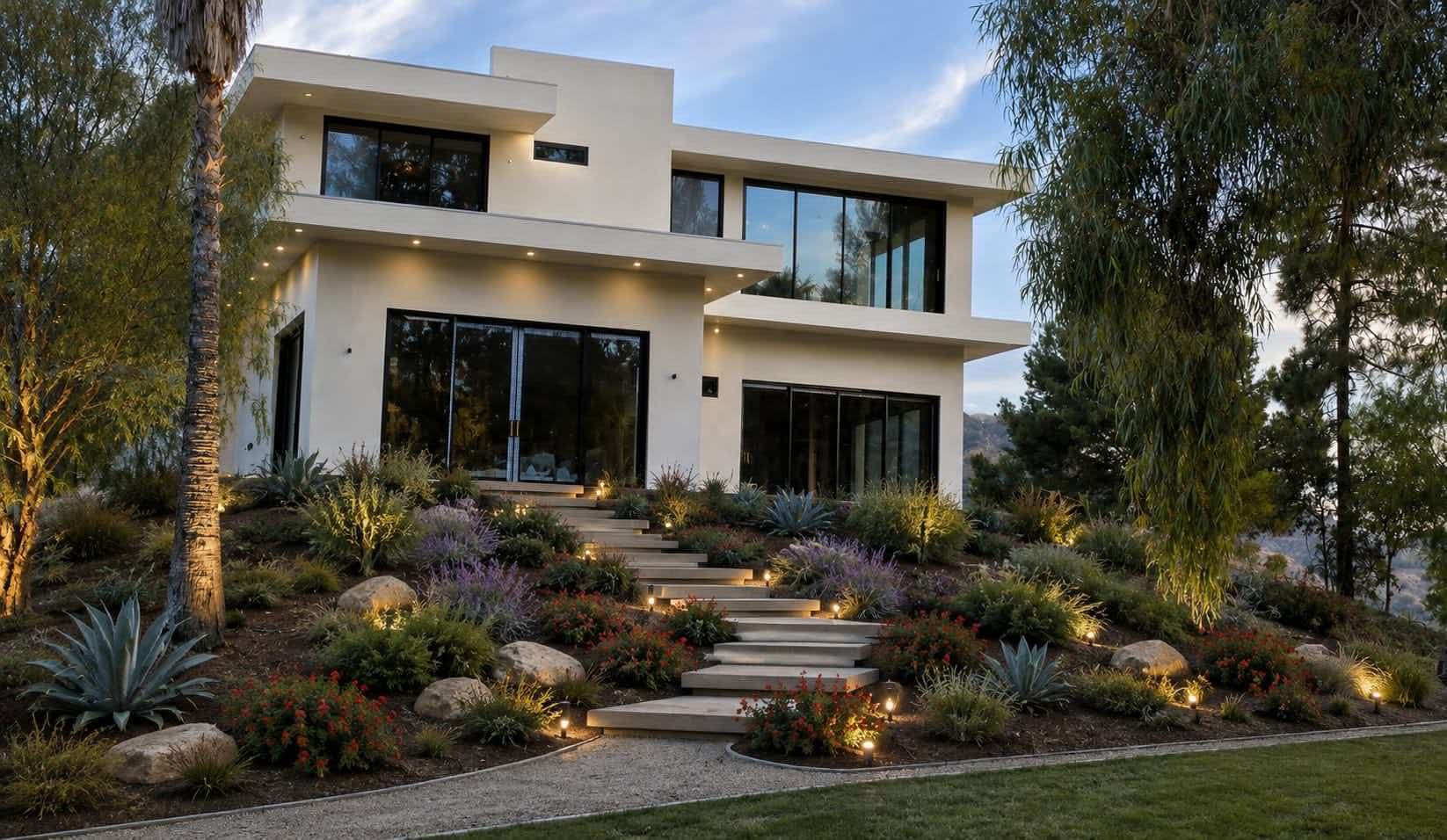

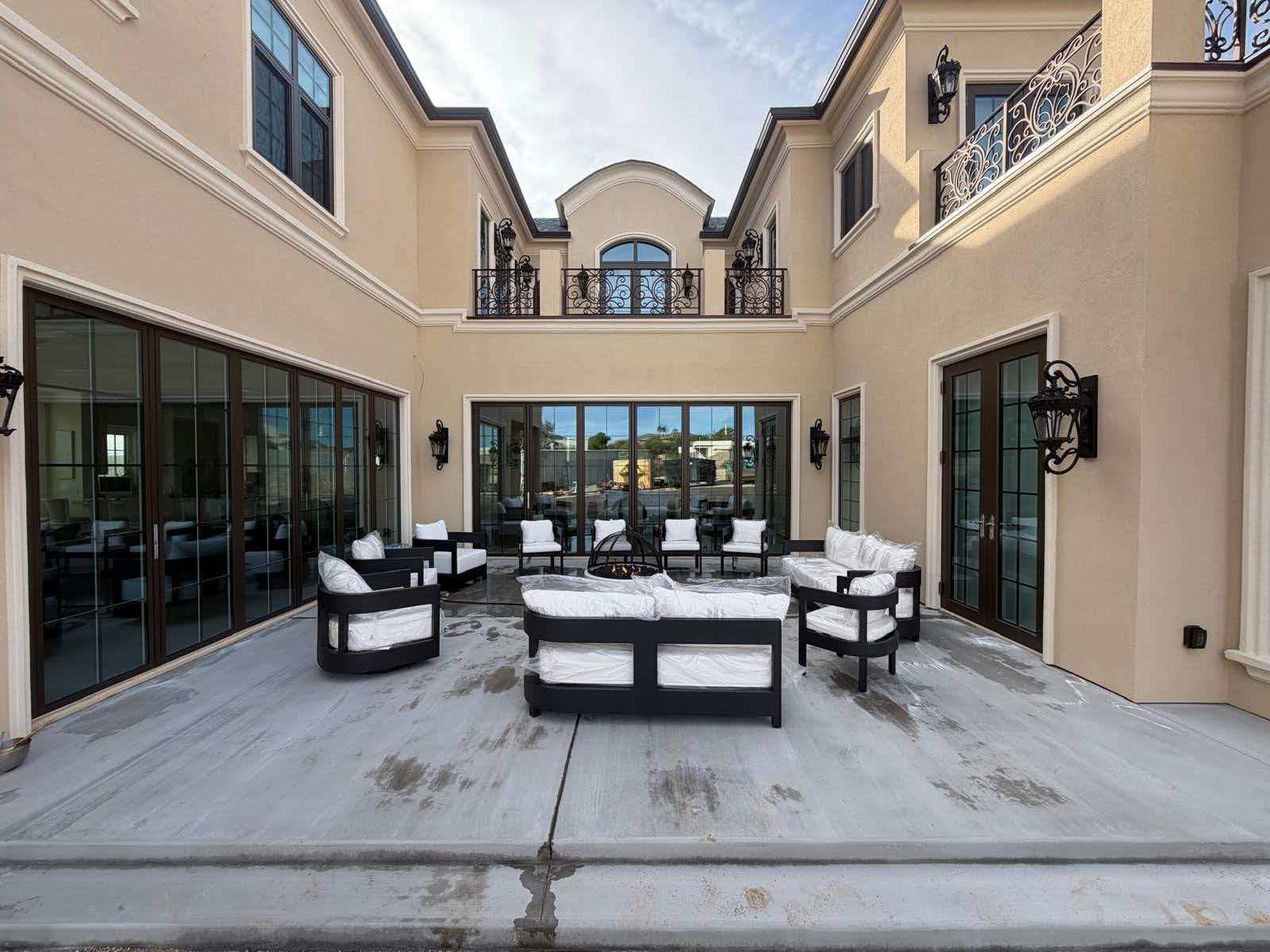

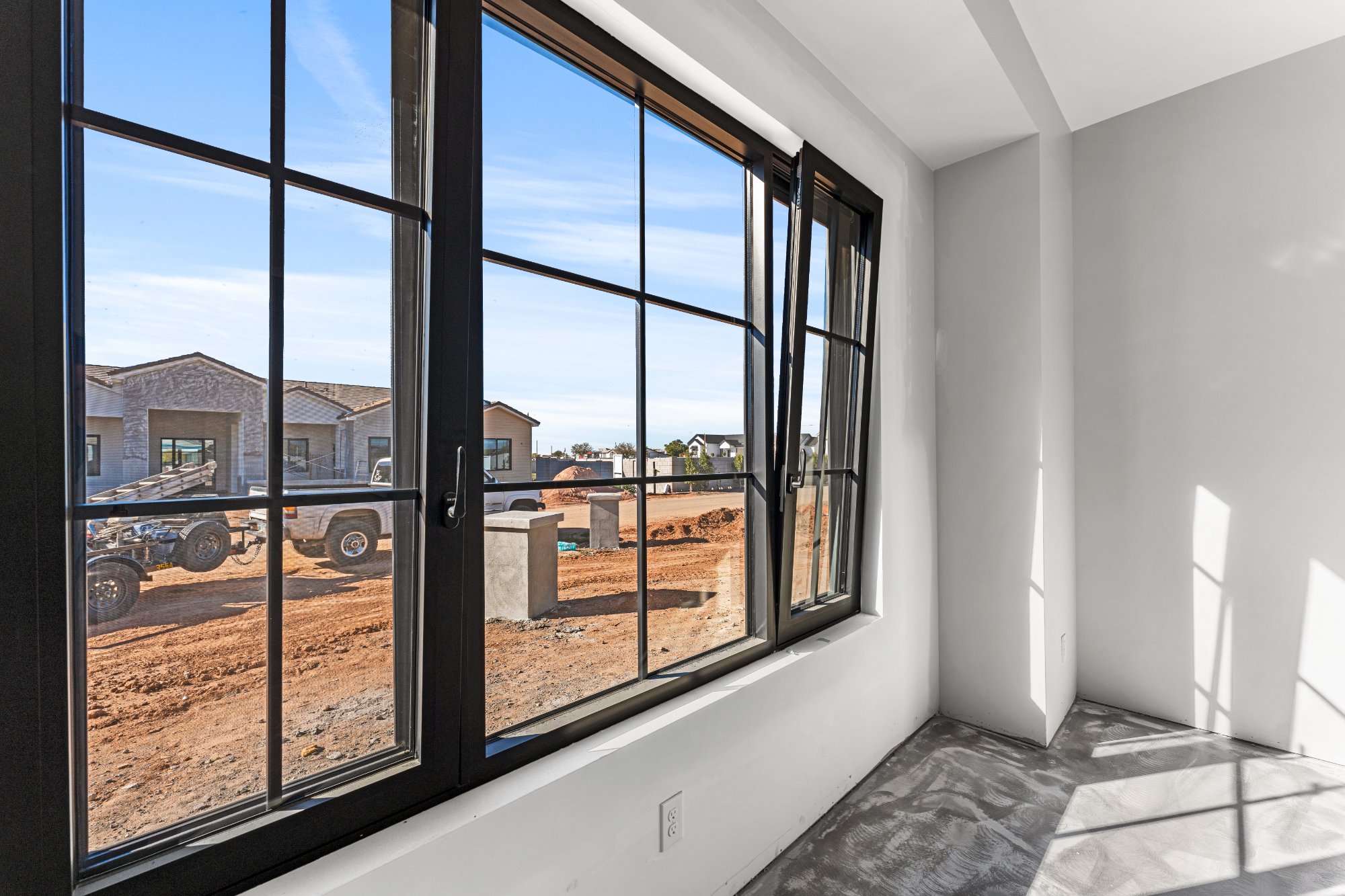

These real jobsite installation photos showcase SAINTY™ Powder Coated Aluminum Casement Windows integrated into a modern residential house in the United States. Featuring a minimalist white powder coating and high-performance triple-pane insulated glass, these windows deliver superior wind pressure resistance and thermal efficiency. The gallery highlights the seamless combination of fixed units and casement hardware, providing a sleek, iron-look aesthetic that enhances the home's contemporary design while meeting rigorous local climate demands.
3D Design Renders
These 3D design renders for SAINTY powder coated aluminum casement windows provide a detailed visual preview of our custom residential solutions for the United States market. Featuring a clean white finish and triple-pane insulated glass, these units are engineered for superior wind pressure resistance and thermal efficiency. The rendered visuals highlight the integration of secure handles and stainless mesh screens, ensuring every minimalist window configuration meets rigorous performance standards before the manufacturing phase begins at our facility.
Live Test On Site
These live test clips and onsite photos demonstrate the commissioning of SAINTY™ powder coated aluminum casement windows during a residential installation in the United States. The footage captures the white powder-coated frames and triple-pane insulated glass being tested for wind pressure resistance and air infiltration. These inswing casement units feature exterior grills and heavy-duty handles, ensuring the structural integrity of the 6063-T5 aluminum alloy and PA66 GF25 thermal breaks meet high-performance residential standards.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Powder Coated Aluminum Casement Windows
SAINTY NFRC-Certified Aluminum Casement Windows are designed for high-performance residential applications requiring California Title 24 or equivalent energy code compliance, with water penetration prevention tested to 720 Pa. Installation requires precise Rough Opening Measurements, Shim Placement at jambs and sill for weight distribution, EPDM Gasket Sealing at all frame joints, and Multi-Point Lock Calibration to ensure airtight closure. Download the full PDF manual below before rough-in.
Installation Videos

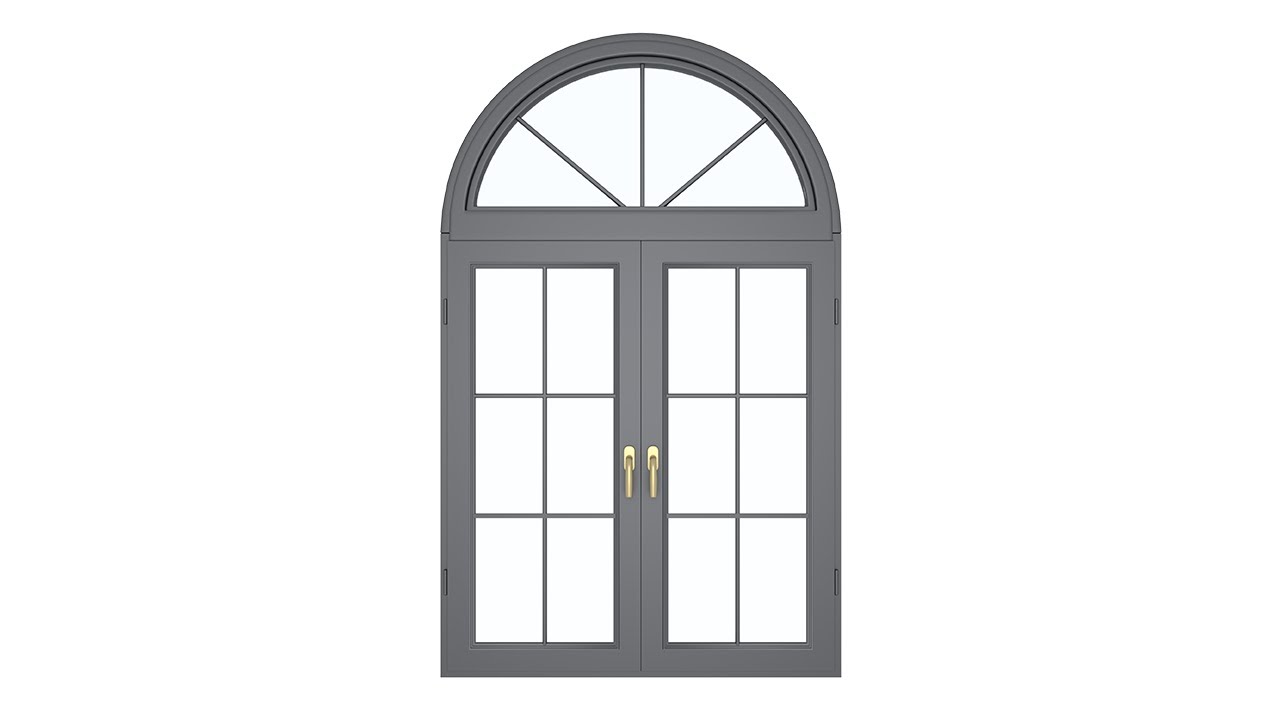

Watch: SAINTY™ Powder Coated Aluminum Casement Windows Double-Sash Installation
- Visual walkthrough of the double-sash frame alignment and hardware integration for superior Wind Pressure Resistance.
- Precision sealing techniques using EPDM gaskets to ensure NFRC-certified airtightness and thermal efficiency.
- Demonstration of the heavy-duty stainless steel 304 handle assembly for smooth, long-term residential operation.
Key Moments: 00:00 – Frame Preparation & Alignment|00:45 – Double-Sash Hardware Installation|01:30 – Triple-Pane Glass Sealing & Final Check
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
ProSill™ installation for SAINTY™ casement windows requires precise rough opening measurements with a recommended 1/2-inch shim space. Installers must prioritize shim placement at the hinge-side jamb and sill to support the weight of the triple-pane glazing units. All joints should be treated with high-performance EPDM gasket sealing and a continuous bead of structural sealant to maintain the 720 Pa water penetration rating.

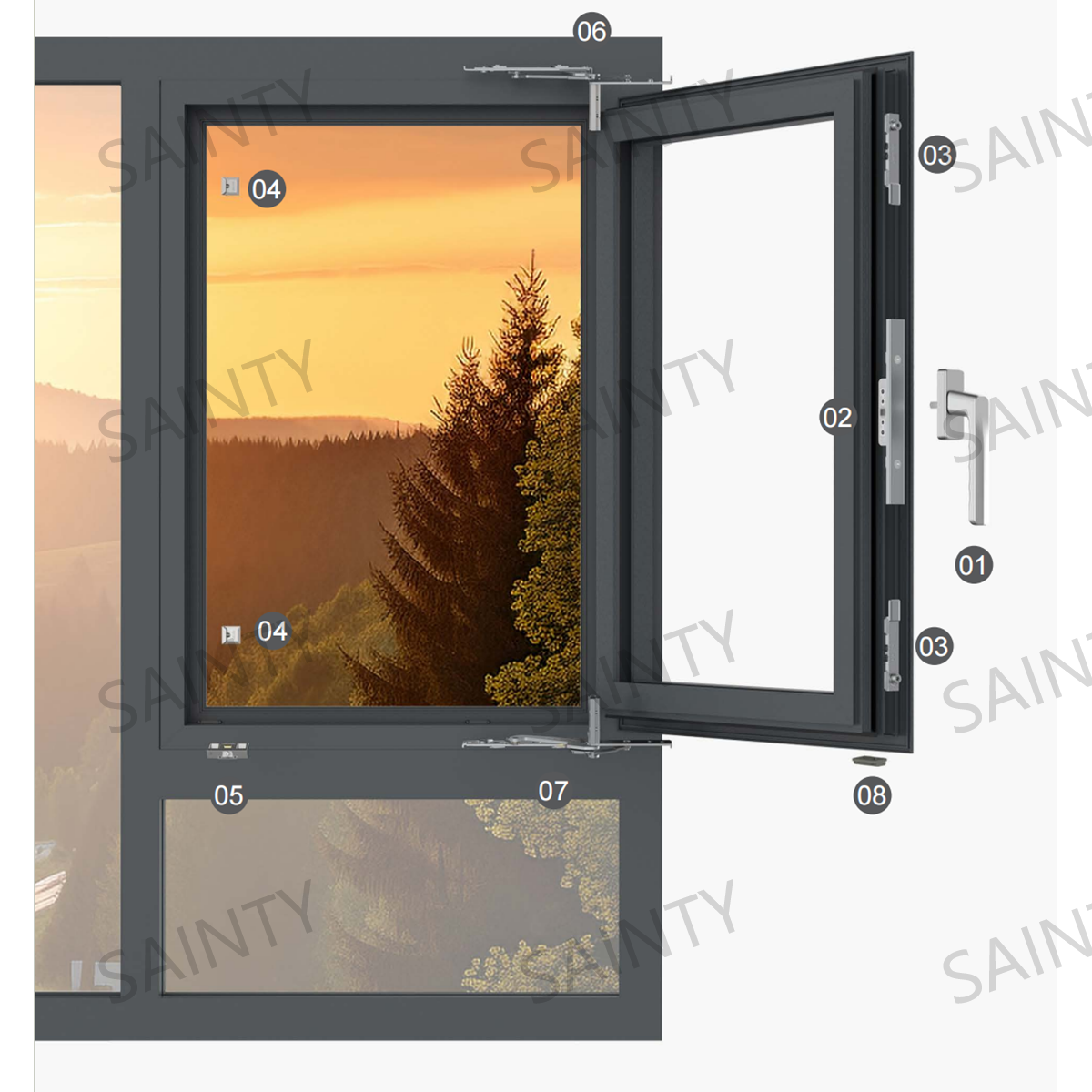

Multi-point lock calibration is essential post-installation to ensure the sash pulls tight against the weatherstripping. Ensure the handle operation is smooth and all locking points engage simultaneously to achieve the rated 0.06 cfm/ft² air infiltration performance.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
- NFRC，TAS 201，TAS 202，TAS 203，Florida Building Code (HVHZ)，Miami‑Dade County Test Protocol，Florida Building Code (FBC)
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-year structural warranty on the 6063-T5 aluminum frame and a 5-year warranty on all SS304 stainless steel hardware and handles. This coverage is predicated on installation according to NFRC and AAMA standards, ensuring long-term reliability for residential house projects in the United States.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.

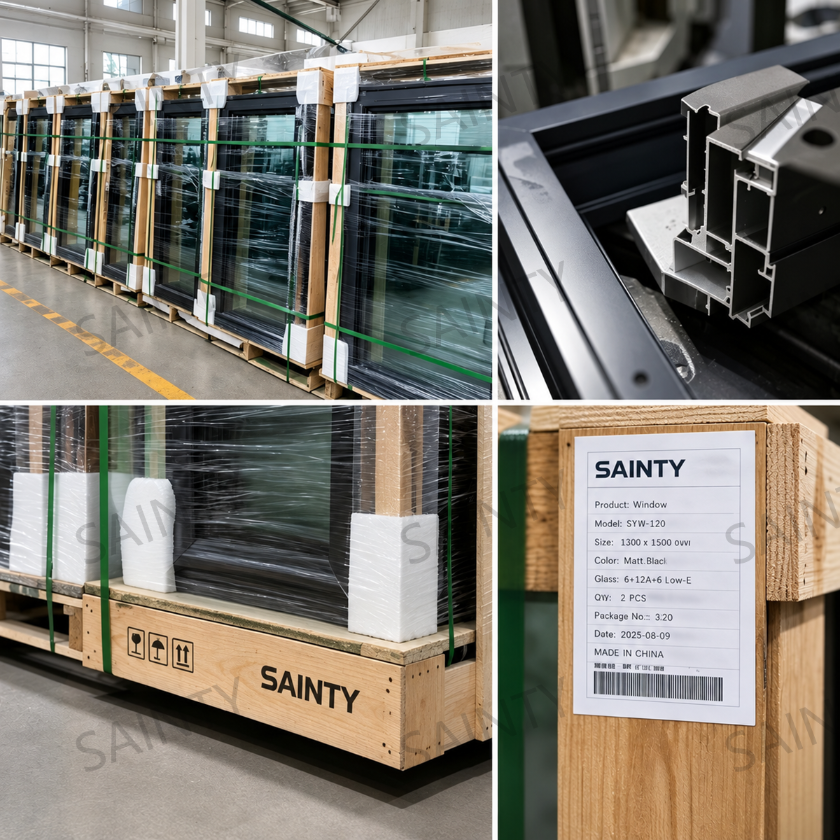

How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What is the thermal performance rating of this casement window?
This window achieves a U-Factor between 0.22 and 0.28 Btu/h·ft²·°F when rated per NFRC 100-2020 protocols. The integration of triple-pane insulated glass (5mm+12A+5mm+12A+5mm) and a 34mm PA66 GF25 thermal break strip ensures it meets rigorous energy codes for residential houses across North America.
Can these windows withstand high wind loads in coastal regions?
Yes, these units are tested to AAMA/WDMA/CSA 101/I.S.2/A440 and can reach a design pressure of DP70. The structural reinforcement of the 6063-T5 alloy combined with multi-point stainless steel 304 locking hardware provides resistance to wind pressure and water penetration tested up to 720 Pa.
What type of finish is applied to the aluminum frames?
The frames are coated to AAMA 2604 standards using architectural-grade powder coating in White. This finish is specifically formulated for UV resistance and color retention, ensuring the residential exterior maintains its aesthetic value without chalking or fading over time.
Do SAINTY powder coated aluminum casement windows comply with United States energy code requirements?
Yes. SAINTY Powder Coated Aluminum Casement Windows units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.28 Btu/h·ft²·°F and an SHGC of 0.22 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
