| U-Factor (NFRC 100) | 0.22 Btu/h·ft²·°F |
|---|---|
| Solar Heat Gain Coefficient (SHGC) | 0.21 |
| Air Infiltration (ASTM E283) | 0.04 cfm/ft² @ 1.57 psf |
| Design Pressure (DP) | DP60 (ASTM E330)✓ TAS 202(Structural only) TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013) |
| Water Penetration Resistance | 720 Pa (15 psf) |
| Acoustic Rating (STC) | 38 dB |
| Aluminium Alloy & Break | 6063-T5 / 34mm PA66 GF25 |

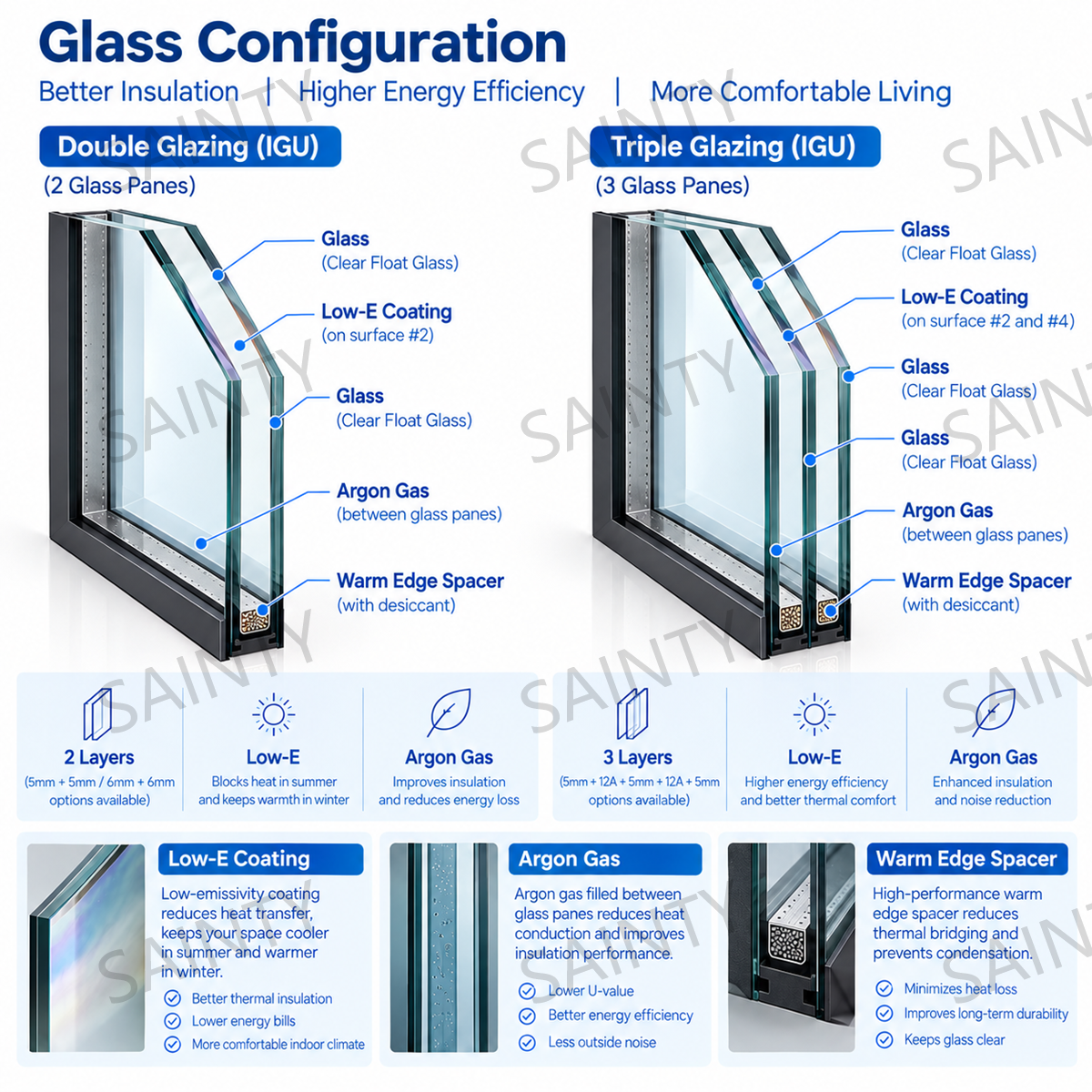

| Glazing Configuration | Triple-Pane (5mm+12Ar+5mm+12Ar+5mm) Low-E |
| Lead Time | 35-45 Days After CAD Approval |
SAINTY™ Triple-Pane Aluminum Casement Windows
0.22 Btu/h·ft²·°F for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Triple-Pane Aluminum Casement Windows: Architectural Specifications & NFRC & Energy Code Compliance
Triple-Pane Aluminum Casement Windows is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for 0.22 Btu/h·ft²·°F compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.22 Btu/h·ft²·°F
- SHGC (NFRC 200):
- 0.21
- Air infiltration (ASTM E283):
- 0.04 cfm/ft² @ 1.57 psf
- Acoustic rating (ASTM E90):
- 38 dB
- Design pressure (ASTM E330):
- DP60 (ASTM E330)
- Water penetration (ASTM E547):
- 720 Pa (15 psf)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-White

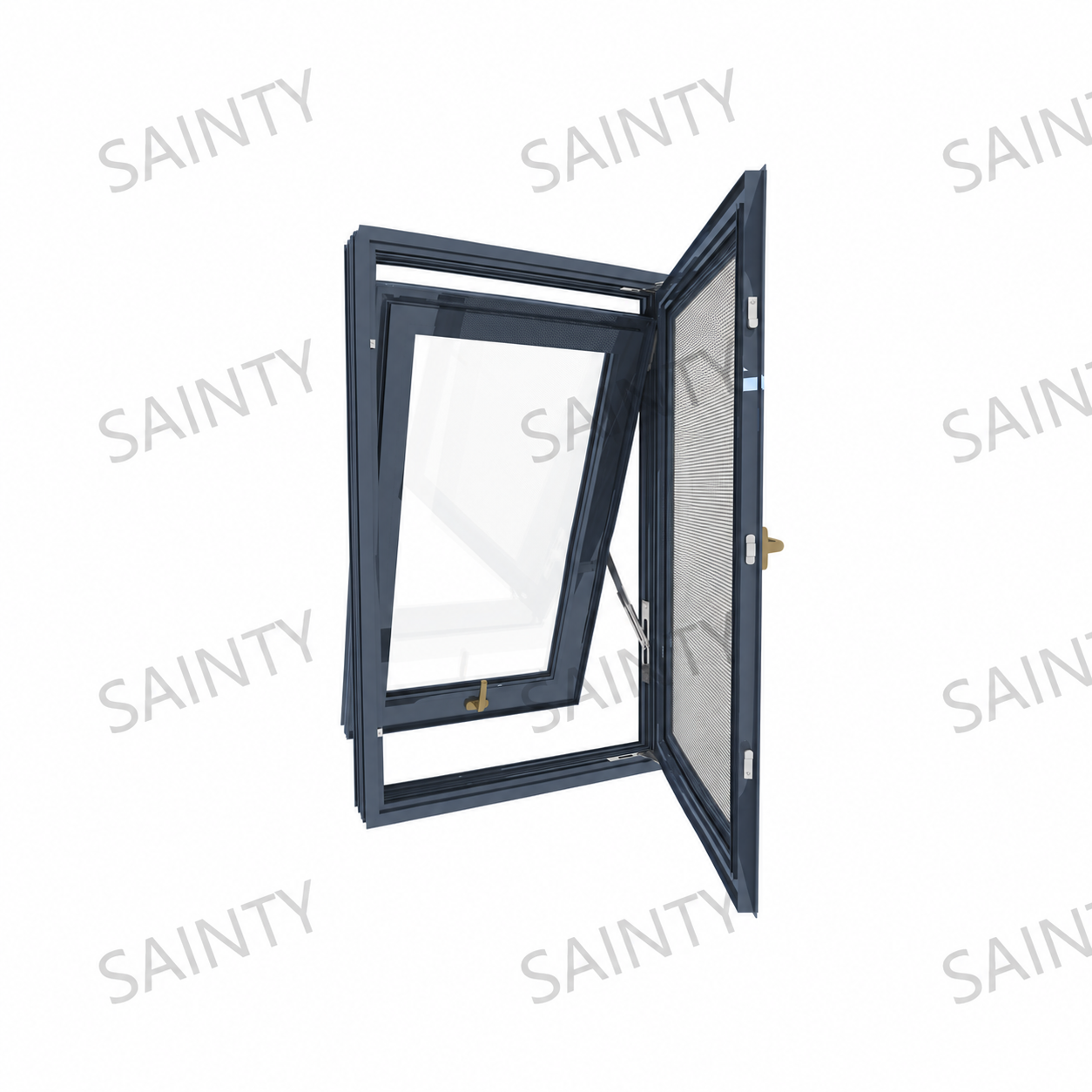

SAINTY™ triple-pane aluminum casement windows are engineered specifically for residential house applications across the United States, providing superior thermal insulation in cold climates. Featuring NFRC-certified glazing and high-grade 6063-T5 aluminum, these units combine architectural elegance with extreme weather resistance, ensuring structural integrity and energy efficiency for modern American homes.
100% Tracking — from Drawings to Site
SAINTY ensures total project accountability through 100% 11-step transparent order tracking. Once your CAD designs are finalized, you can access the SAINTY app to monitor real-time visual updates, from extrusion and thermal break insertion to final laboratory testing and export crating.

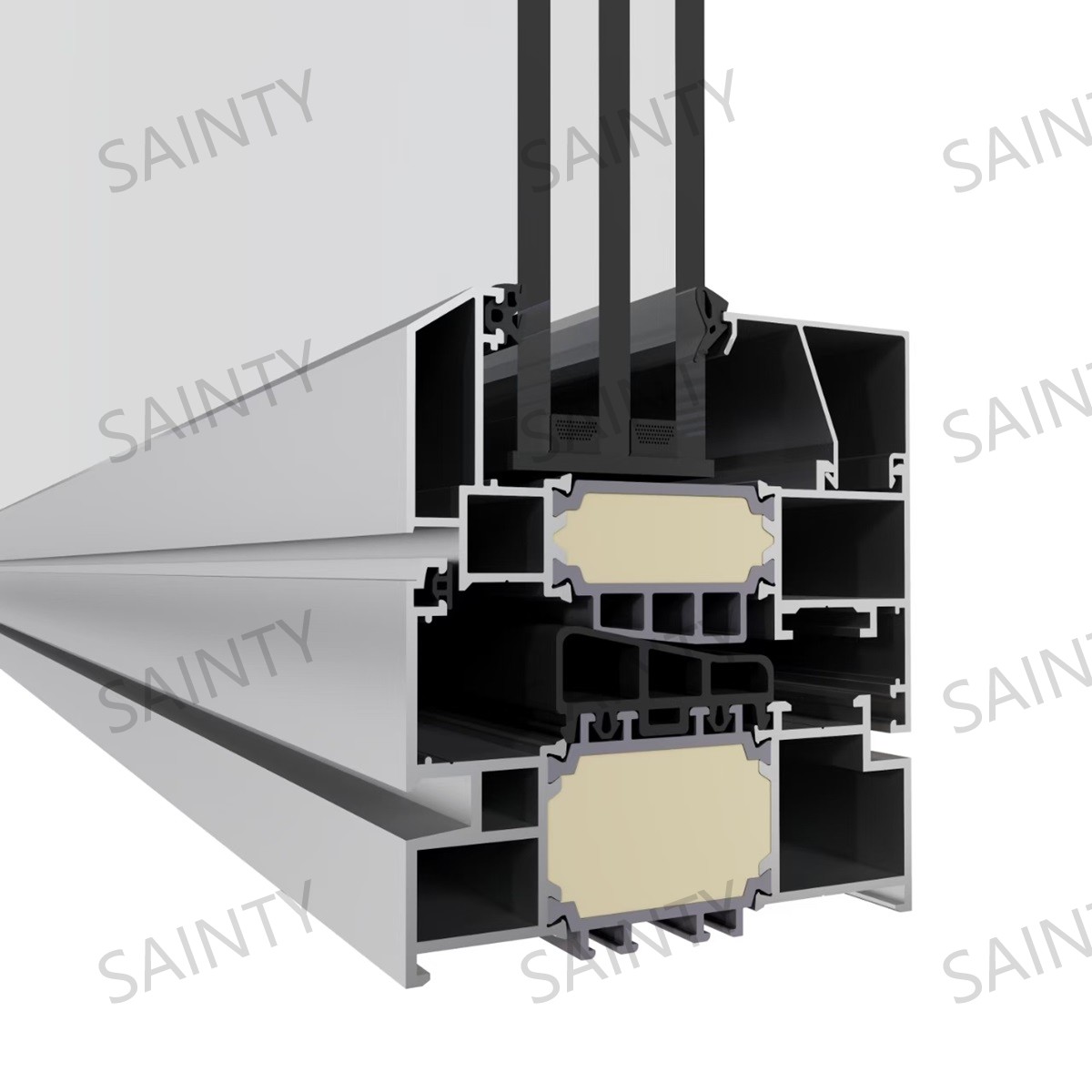

Our architectural-grade builds utilize PA66 GF25 polyamide thermal breaks and precision-engineered corner crimping. This rigorous manufacturing process ensures each unit meets the strict demands of North American building codes while providing a premium, maintenance-free powder-coated finish.
10-Year WarrantyNFRC，TAS 201，TAS 202，TAS 203，Florida Building Code (HVHZ)，Miami‑Dade County Test Protocol，Florida Building Code (FBC)
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Triple-Pane Aluminum Casement Windows
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Triple-Pane Aluminum Casement Windows |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.22 Btu/h·ft²·°F |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.21 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.04 cfm/ft² @ 1.57 psf |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | 38 dB |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202 TAS 201/203 (Large Mis Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only) TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.

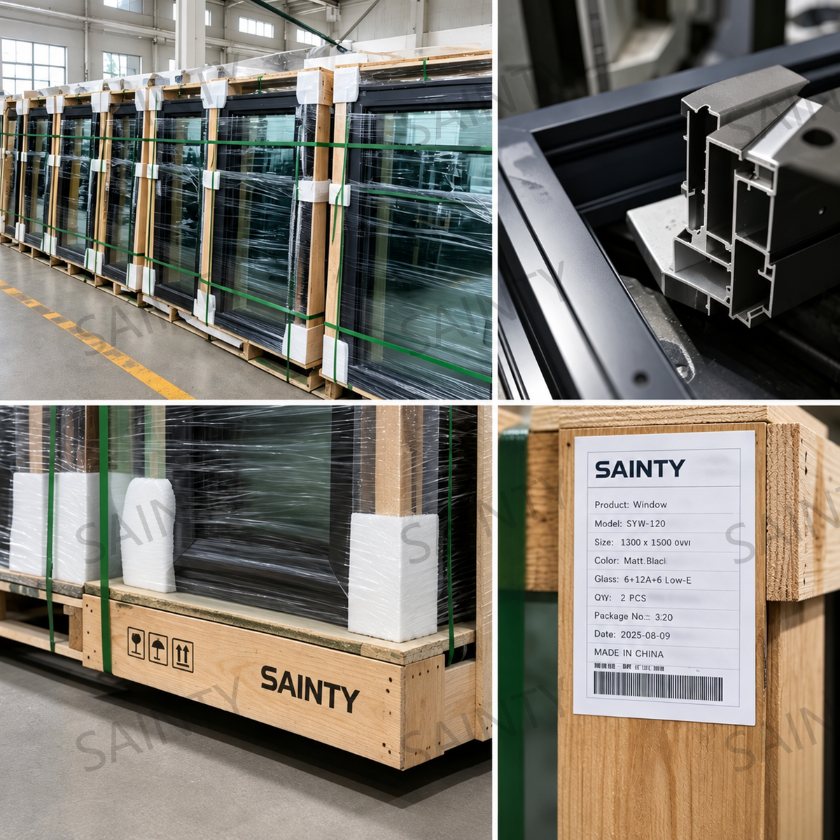

Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects
3D Design Renders
These 3D design renders showcase the SAINTY Triple-Pane Aluminum Casement Windows, demonstrating their integration into a residential house located in the United States. Designed for cold climates, these white powder-coated windows feature triple-pane insulated glass and heavy-duty handles to ensure thermal efficiency and airtight performance. The heritage-inspired visual planning reflects the structural integrity of the 6063-T5 aluminum alloy frames, providing a precise architectural preview of the NFRC-certified glazing system before the manufacturing process begins.
Live Test On Site
This gallery features live test clips and photos of SAINTY Triple-Pane Aluminum Casement Windows captured during jobsite installation and commissioning for a residential house. These white powder-coated units are specifically engineered for cold climates, utilizing triple-pane insulated glass and exterior grills. The onsite footage highlights the outswing operation and robust handle hardware, ensuring the system meets necessary performance standards for air infiltration and thermal efficiency in the United States.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Triple-Pane Aluminum Casement Windows
SAINTY NFRC-Certified Aluminum Casement Windows are engineered for high-performance residential envelopes requiring compliance with North American energy codes. Installation requires adherence to AAMA Standard Sill Flashing practices to ensure Water Penetration Prevention tested to 720 Pa. Key procedural steps include Rough Opening Measurements, Shim Placement at jambs and sill, EPDM Gasket Sealing, and Multi-Point Lock Calibration to maintain air infiltration limits. Download the full PDF manual below before rough-in.
Installation Videos

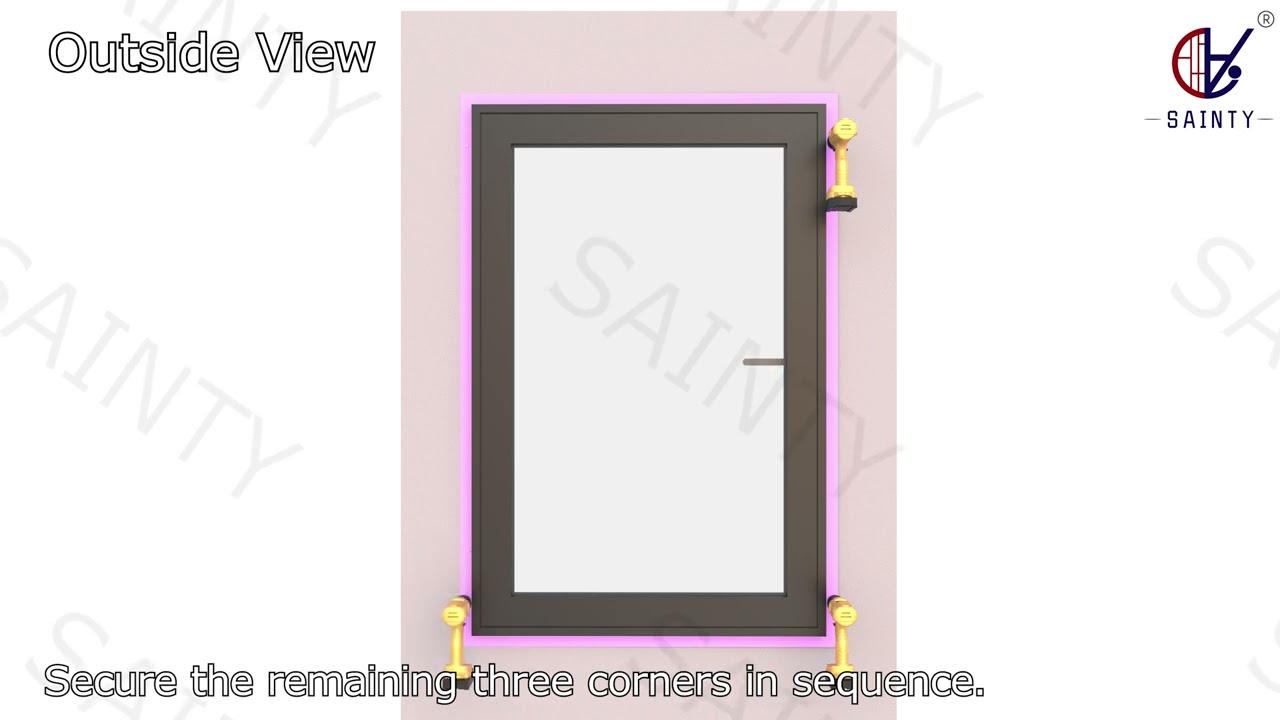

Watch: SAINTY™ Triple-Pane Aluminum Casement Windows Precision Installation
- Visual step-by-step of the thermal-break casement frame installation, ensuring a 0.06 cfm/ft² air infiltration seal for US residential standards.
- Demonstration of the EPDM gasket compression and multi-point hardware locking system for maximum water penetration resistance at 720 Pa.
- Precision alignment of the triple-pane insulated glass units (5+12A+5+12A+5) to achieve the target 0.20-0.32 U-Factor in cold climates.
Key Moments: 00:00 – Aluminum Frame Leveling and Anchoring|00:45 – Hardware Integration and Gasket Sealing|01:20 – Triple-Pane Glazing and Final Testing
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.

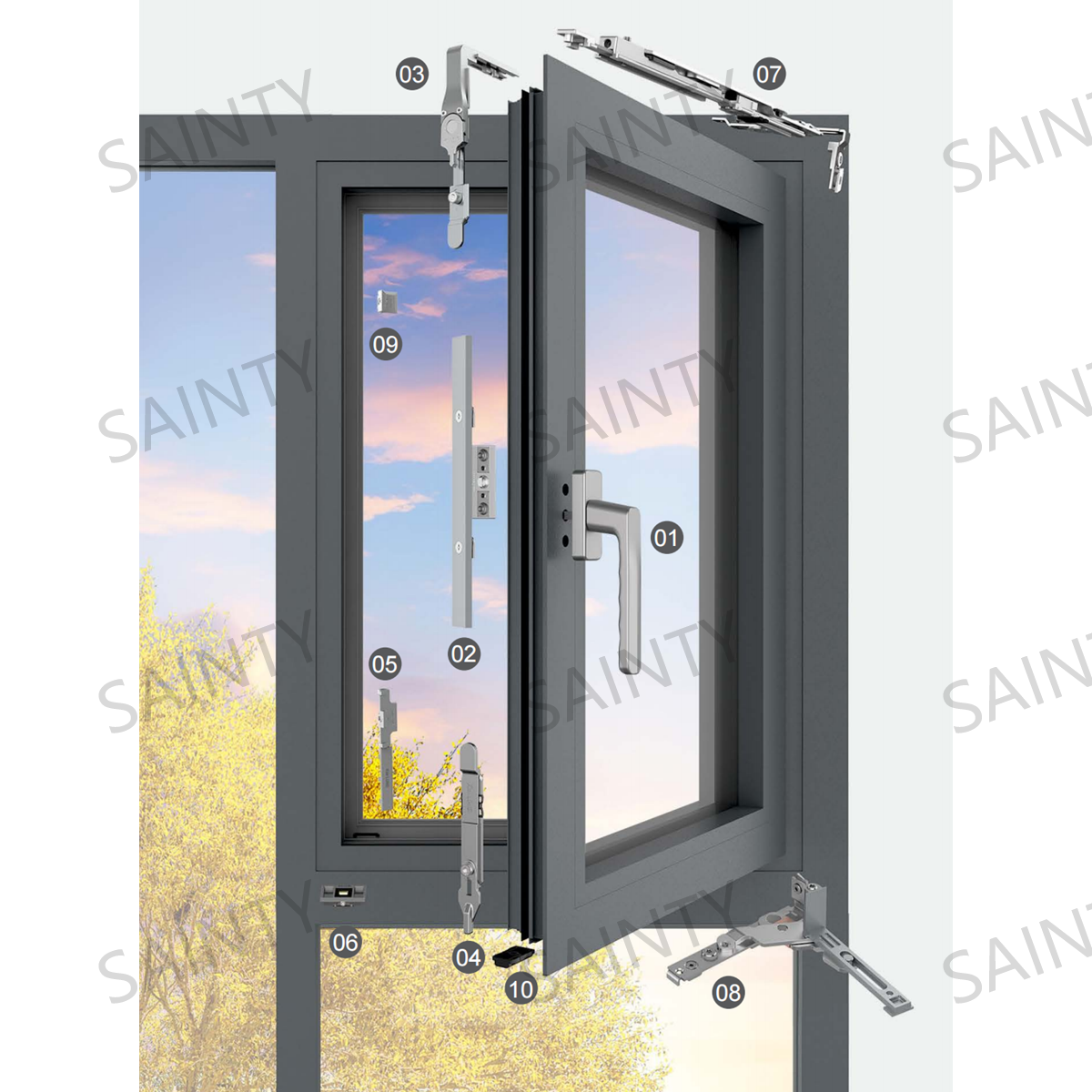

Proper installation of SAINTY™ casement windows requires precise rough opening measurements and the use of ProSill™ flashing systems to ensure moisture diversion. Shim placement must occur at the jambs and sill to maintain squareness, ensuring the multi-point locking hardware engages smoothly without frame torquing.
Secondary sealing with EPDM gaskets and high-performance backer rods is essential to maintain the 0.06 cfm/ft² air infiltration rating. Always verify that the integrated sill drainage weep holes remain unobstructed by exterior cladding or masonry.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
- NFRC，TAS 201，TAS 202，TAS 203，Florida Building Code (HVHZ)，Miami‑Dade County Test Protocol，Florida Building Code (FBC)
10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-Year Structural Warranty and a 5-Year Hardware Warranty, covering all NFRC-certified aluminum casement windows against material defects, including frame finish degradation under AAMA 2604 standards and SS304 hardware mechanical failure.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What is the thermal performance rating for this window in cold US climates?
This casement window achieves a U-Factor as low as 0.22 Btu/h·ft²·°F when rated per NFRC 100-2020 standards. By utilizing triple-pane insulated glass (5mm + 12A + 5mm + 12A + 5mm) and a 34mm PA66 GF25 thermal break, it effectively prevents heat loss and interior condensation in extreme northern US zones.
What wind load and water penetration standards do these windows meet?
These units are tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards, achieving a design pressure rating up to DP70. They also meet a water penetration resistance threshold of 720 Pa (15 psf), ensuring that residential structures remain leak-free even during high-velocity wind-driven rain events.
Do SAINTY triple-pane aluminum casement windows comply with United States energy code requirements?
Yes. SAINTY Triple-Pane Aluminum Casement Windows units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.22 Btu/h·ft²·°F and an SHGC of 0.21 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
Get a quote for this product
Send your sizes and we will reply with pricing, drawings, and a live 11-step production timeline inside the SAINTY app.
Request a quote
