| Thermal Performance (U-Factor) | 0.30 Btu/h·ft²·°F (NFRC 100) |
|---|---|
| Solar Heat Gain (SHGC) | 0.22 |
| Air Infiltration | 0.06 cfm/ft² (@ 1.57 psf)✓ ASTM E283/E283M-2019 Certified (Certificate ID: 221010012SHF-001) |
| Alloy & Thermal Break | 6063-T5 / 34mm PA66 GF25 |
| Glazing Build-up | 6mm Low-E + 16A + 6mm Tempered |
| Design Pressure (Wind Load) | DP50 (ASTM E330)✓ ASTM E330/E330M-2014(R2021) Certified (Certificate ID: 221010012SHF-001) |
| Finish Standard | AAMA 2604 White Powder Coat |
| Hardware Material | Grade 304 Stainless Steel |
| Lead Time | 35 Days Post-CAD Approval |
SAINTY™ Powder Coated Aluminum Sliding Door
AAMA 2604 White Powder Coat for Arizona
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Powder Coated Aluminum Sliding Door: Architectural Specifications & NFRC & Energy Code Compliance
Powder Coated Aluminum Sliding Door is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for AAMA 2604 White Powder Coat compliance in Arizona — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.30 Btu/h·ft²·°F (NFRC 100)
- SHGC (NFRC 200):
- 0.22
- Air infiltration (ASTM E283):
- 0.06 cfm/ft² (@ 1.57 psf)
- Design pressure (ASTM E330):
- DP50 (ASTM E330)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-White
- Markets served:
- Arizona
- Lead time:
- 35 Days Post-CAD Approval
The SAINTY™ Powder Coated Aluminum Sliding Door is engineered to exceed the rigorous thermal demands of Arizona apartments, specifically optimized for high-heat tropical and arid climates. Utilizing architectural-grade 6063-T5 aluminum and AAMA-certified powder coating in white, these doors provide a durable, low-maintenance entry solution that maintains structural integrity under intense UV exposure. The system integrates high-performance Low-E insulated glass to minimize solar heat gain while providing expansive views and smooth, heavy-duty operation.
100% Tracking — from Drawings to Site
SAINTY ensures unmatched procurement reliability through our 100% 11-step transparent order tracking system. B2B buyers and developers can utilize the SAINTY app to monitor every phase of production, from raw aluminum extrusion to final AAMA 2604 coating application and export crating, ensuring schedules are met for large-scale apartment developments.

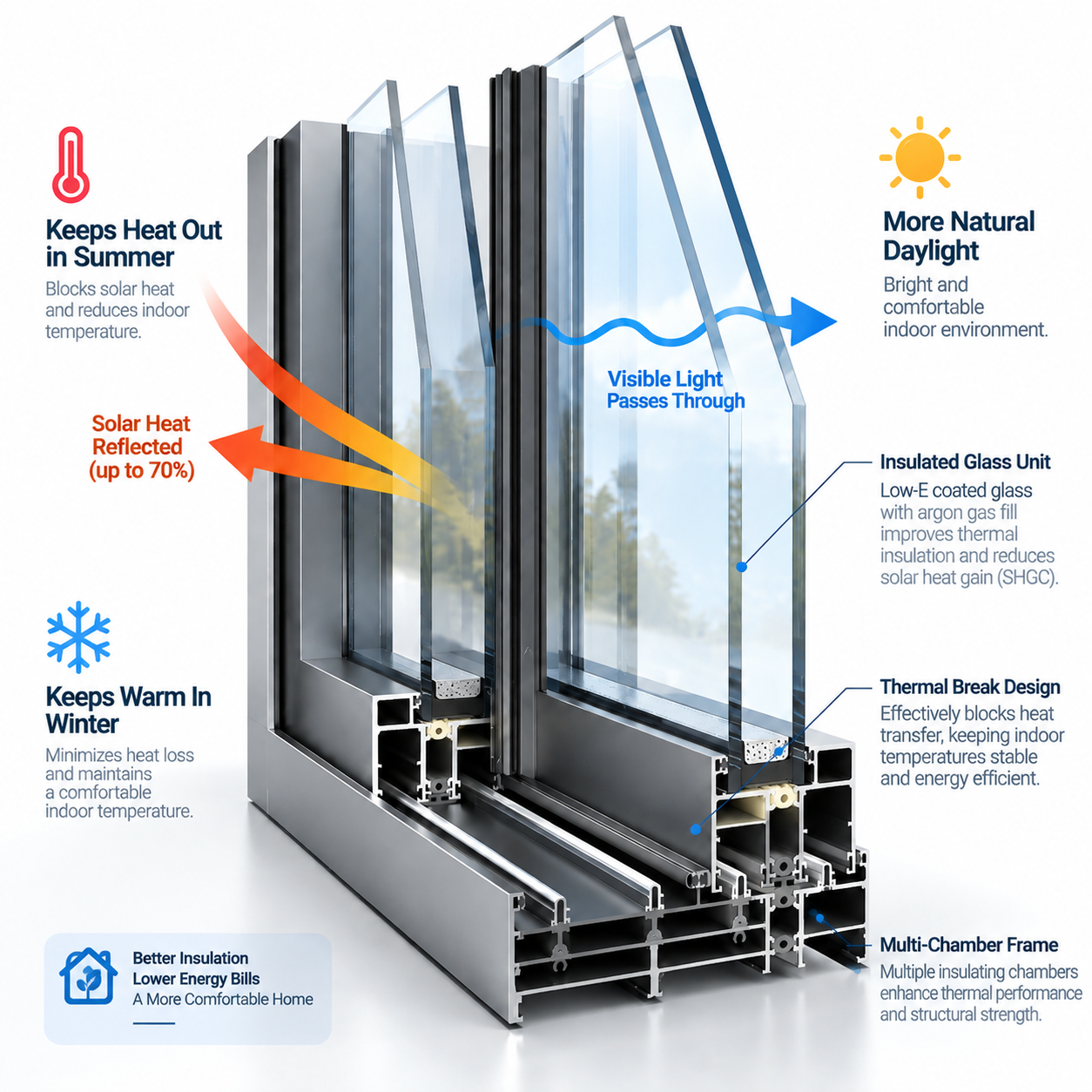

Our architectural-grade build quality centers on precision engineering, featuring 34mm PA66 GF25 thermal breaks and reinforced corner joinery. This meticulous construction provides superior structural rigidity and air infiltration resistance, tested to meet the specific environmental stressors of the Southwest United States.
10-Year WarrantyAAMA
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Water Penetration Resistant Aluminum Bi-Fold Door
SAINTY™ Fire Rated Aluminum Bi-Fold Doors
SAINTY™ Impact Resistant Aluminum Bi-Fold Door
SAINTY™ Soundproof Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Powder Coated Aluminum Sliding Door
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Powder Coated Aluminum Sliding Door |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.30 Btu/h·ft²·°F (NFRC 100) |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.22 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.06 cfm/ft² (@ 1.57 psf) |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- ASTM E283/E283M-2019 Certified (Certificate ID: 221010012SHF-001)Download report (PDF)
- ASTM E547-00 (Reapproved 2016） Certified (Certificate ID: 221010012SHF-001)Download report (PDF)
- ASTM E330/E330M-2014(R2021) Certified (Certificate ID: 221010012SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Product Gallery
Project Cases
Real Home Projects

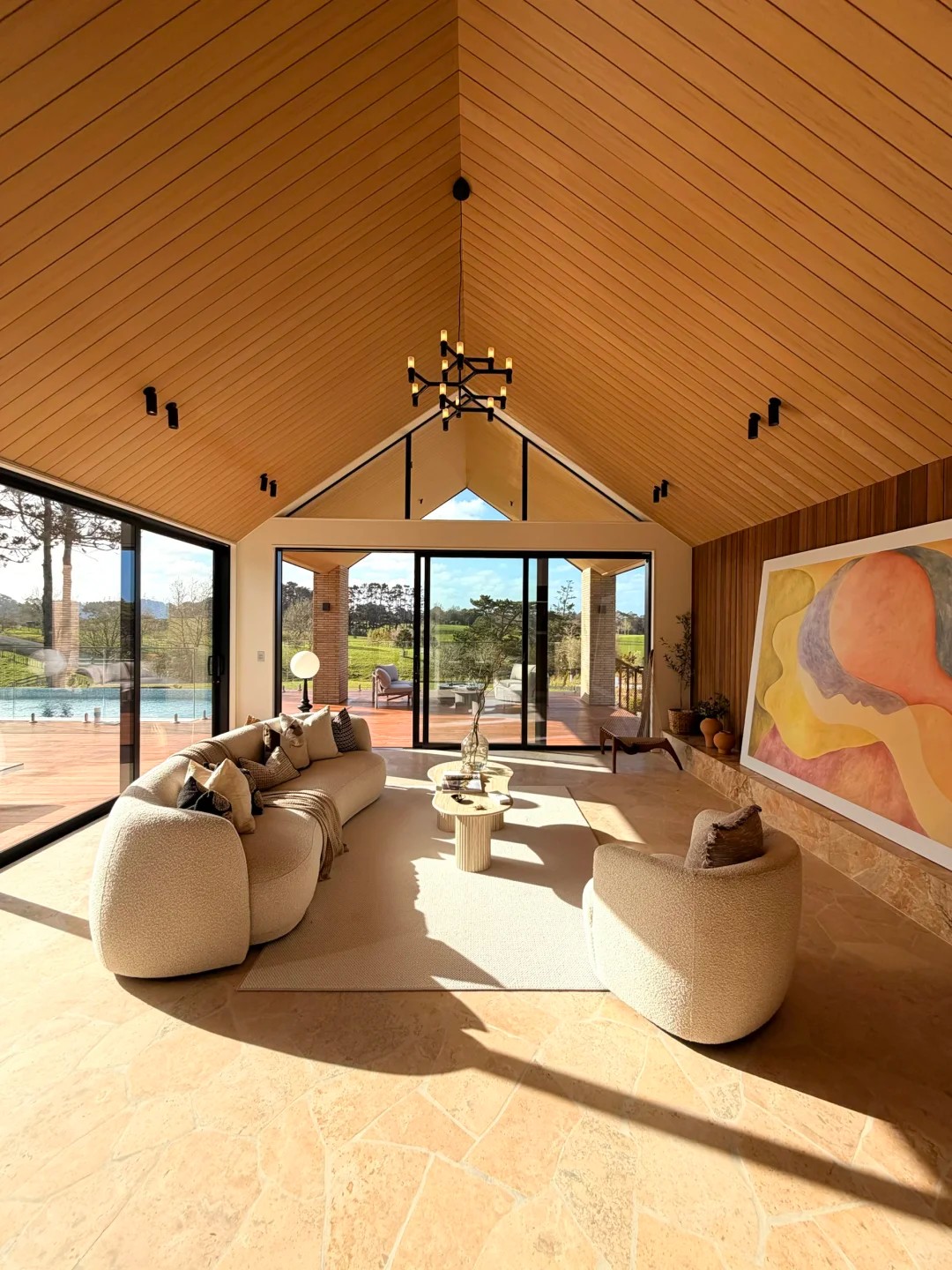

These real jobsite project photos showcase the SAINTY™ Powder Coated Aluminum Sliding Door installed in an Arizona apartment setting. The installation features a dual-panel sliding door paired with a triangular fixed window, utilizing thermally broken 6063-T5 aluminum frames and Low-E insulated glass to ensure reliable thermal performance in tropical climates. This minimalist sliding system provides expansive views while meeting strict air infiltration and water penetration resistance standards required for high-exposure regional applications.
3D Design Renders
Live Test On Site
This gallery features live test clips and on-site commissioning footage of the SAINTY™ Powder Coated Aluminum Sliding Door during final installation for an Arizona apartment project. The white powder-coated units, featuring Low-E insulated glass, are shown undergoing rigorous water-tightness testing and hardware adjustment to ensure smooth operation. These reversible sliding doors are engineered for tropical climates, maintaining an air infiltration rate below 0.06 cfm/ft² and meeting AAMA standards for reliable performance in high-temperature environments.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Powder Coated Aluminum Sliding Door
SAINTY Powder Coated Aluminum Sliding Door installation manual provides comprehensive technical guidance for AAMA-certified apartment applications. This document covers site-specific requirements for Arizona heat exposure, including AAMA Standard Sill Flashing practices and Water Penetration Prevention tested to 720 Pa. Technicians will find detailed instructions for Rough Opening Measurements, Shim Placement at jambs and sill, EPDM Gasket Sealing, and Multi-Point Lock Calibration to ensure airtight operation. Download the full PDF manual below before rough-in.
Installation Videos
Watch: SAINTY™ Powder Coated Aluminum Sliding Door Precision Installation Workflow
- Step-by-step frame positioning and professional 6063-T5 aluminum alignment for high-performance apartment integration.
- Demonstrates Low-E insulated glass glazing and EPDM gasket sealing to meet strict NFRC U-Factor standards.
- Precision hardware adjustment and quality control checks to ensure DP70 wind load resistance and smooth sliding operation.
Key Moments: 00:00 – Frame Positioning and Anchor Alignment|00:45 – Low-E Glazing and Weather-Tight Sealing|01:25 – Hardware Calibration and Smoothness Testing|02:10 – Final Quality Inspection and Performance Verification
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
For optimal performance of the SAINTY sliding door system, ensure the rough opening is square and level within 1/8 inch. ProSill™ flashing must be integrated into the building envelope before frame setting to manage water redirection. During installation, both the fixed and sliding panels should be verified for vertical plumb to prevent operational drag.
If panel wobble is detected, adjust the top guide rollers and bottom stainless steel tandem rollers to ensure the sash is centered in the track. Multi-point locks should be calibrated only after the frame is fully shimmed and fastened to ensure the SS304 strike plates align perfectly with the locking pins.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
SAINTY provides a 10-Year Structural Warranty on all 6063-T5 aluminum frames and a 5-Year Warranty on SS304 hardware components, ensuring long-term reliability for apartment managers and owners under AAMA performance standards.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
Are these sliding doors suitable for the extreme heat of Arizona climates?
Yes, these doors are rated per NFRC 100-2020 standards with a Solar Heat Gain Coefficient (SHGC) of 0.23 or lower. The combination of Low-E coating and a 34mm PA66 GF25 thermal break effectively blocks radiant heat transfer, ensuring the door frames remain dimensionally stable and cool to the touch despite high ambient temperatures.
What certifications do these doors hold for multi-family housing projects?
SAINTY sliding doors are tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards to ensure structural performance and air infiltration resistance. They meet a design pressure rating of up to DP70 and air infiltration limits of 0.06 cfm/ft² per ASTM E283, making them compliant with most local Arizona building codes for residential apartments.
Do SAINTY powder coated aluminum sliding doors comply with Arizona energy code requirements?
Yes. SAINTY Powder Coated Aluminum Sliding Door units are fully compliant with Arizona energy code requirements, achieving a certified U-Factor of 0.30 Btu/h·ft²·°F (NFRC 100) and an SHGC of 0.22 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
How do SAINTY thermal break powder coated aluminum sliding doors compare to standard non-thermal aluminium windows in Arizona?
Unlike non-thermal aluminium frames, which typically show U-factors above 0.50 Btu/h·ft²·°F, SAINTY uses a 6063-T5 / 34mm PA66 GF25 thermal break and Low-E insulated glazing to reach a certified U-Factor of 0.30 Btu/h·ft²·°F (NFRC 100). That reduces conductive heat transfer and HVAC loads substantially while meeting NFRC 100-2020 and, where applicable, California Title 24 Part 6 requirements.
