| U-Factor | 0.28 Btu/h·ft²·°F (NFRC 100) |
|---|---|
| Solar Heat Gain Coefficient (SHGC) | 0.21 |
| Air Infiltration | 0.04 cfm/ft² (ASTM E283) |
| Design Pressure (DP) | DP70 (ASTM E330)✓ TAS 202(Structural only) Certified (Certificate ID: FL48013) |
| Water Penetration Resistance | 720 Pa (15 psf) |
| STC Acoustic Rating | 40 dB |
| Aluminium Alloy | 6063-T5 with 24mm PA66 GF25 Thermal Break |
| Glass Build-up | 6mm + 12A + 6mm + 12A + 6mm Triple-Pane |
| Coating Standard | AAMA 2605 Powder Coating (Black) |
| Lead Time | 35-45 Days after CAD Approval |

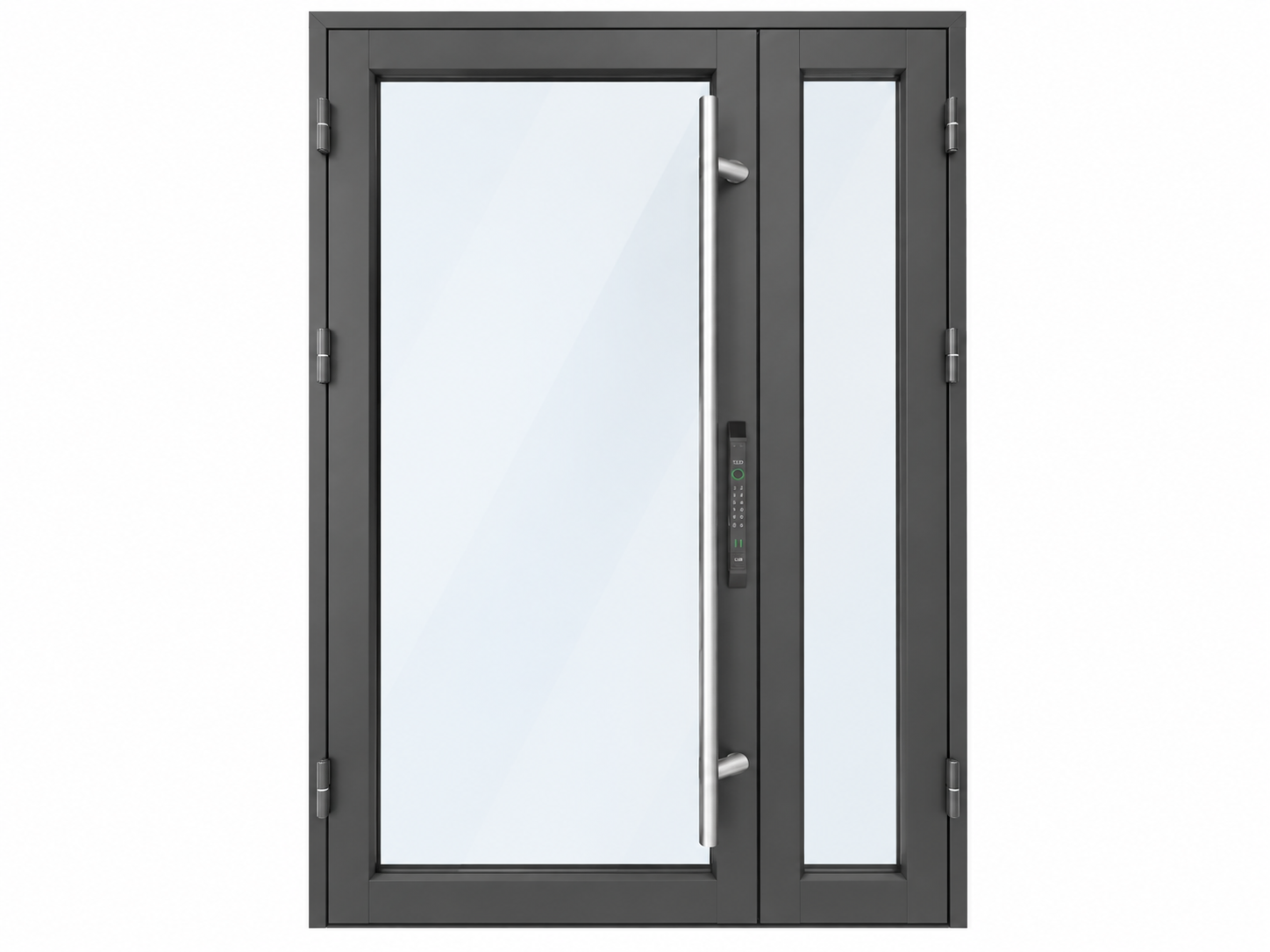

SAINTY™ Hurricane-Rated Aluminum Front Entry Door
AAMA 2605 Powder Coating (Black) for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Hurricane-Rated Aluminum Front Entry Door: Architectural Specifications & NFRC & Energy Code Compliance
Hurricane-Rated Aluminum Front Entry Door is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for AAMA 2605 Powder Coating (Black) compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- U-Factor (NFRC 100):
- 0.28 Btu/h·ft²·°F (NFRC 100)
- SHGC (NFRC 200):
- 0.21
- Air infiltration (ASTM E283):
- 0.04 cfm/ft² (ASTM E283)
- Acoustic rating (ASTM E90):
- 40 dB
- Design pressure (ASTM E330):
- DP70 (ASTM E330)
- Water penetration (ASTM E547):
- 720 Pa (15 psf)
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
The SAINTY™ Hurricane-Rated Aluminum Front Entry Door is engineered to meet the most rigorous structural demands for commercial buildings across the United States. Combining heavy-duty 6063-T5 aluminum with triple-pane insulated glass, this entrance system provides superior impact resistance and thermal efficiency in high-velocity hurricane zones (HVHZ). Whether specified for new commercial construction or high-end retail retrofits, these doors deliver Miami-Dade NOA level protection alongside a professional powder-coated black finish.
100% Tracking — from Drawings to Site
SAINTY ensures total project accountability through our 100% 11-step transparent order tracking system. B2B buyers and architects can utilize the SAINTY app for real-time visual tracking, allowing for precise site scheduling and progress monitoring from initial CAD approval to final export crating. This transparency eliminates the traditional guesswork of international procurement for commercial building projects.

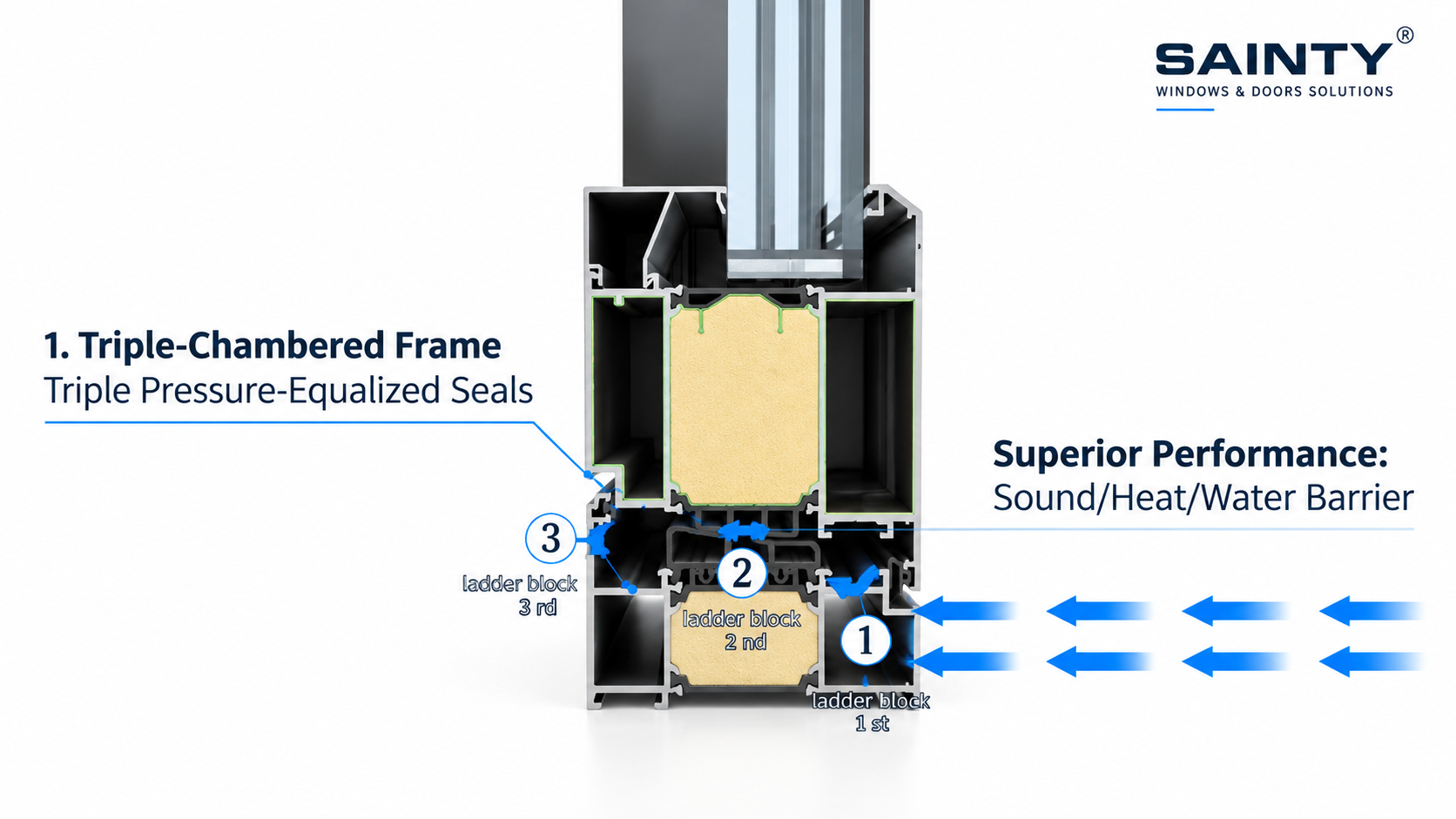

Our architectural-grade build quality is defined by precision engineering. Each entry door is manufactured using high-strength 6063-T5 aluminum alloys and PA66 GF25 thermal breaks to ensure structural stability under extreme wind loads. The integration of 304-grade stainless steel hardware and AAMA 2605 compliant coatings ensures that your investment remains functionally and aesthetically superior in corrosive or high-traffic United States environments.
10-Year WarrantyMiami-Dade NOA
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Water Penetration Resistant Aluminum Bi-Fold Door
SAINTY™ Fire Rated Aluminum Bi-Fold Doors
SAINTY™ Impact Resistant Aluminum Bi-Fold Door
SAINTY™ Soundproof Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Hurricane-Rated Aluminum Front Entry Door
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Hurricane-Rated Aluminum Front Entry Door |
|---|---|---|
| U-Factor (NFRC 100) | 0.50 – 0.70 Btu/h·ft²·°F (no thermal break) | 0.28 Btu/h·ft²·°F (NFRC 100) |
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | 0.21 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.04 cfm/ft² (ASTM E283) |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | 40 dB |
| California Title 24 Compliance | Typically fails prescriptive U-Factor ≤ 0.30 | Yes — NFRC-certified U-Factor/SHGC meet Title 24, Part 6 prescriptive values |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Live Test On Site

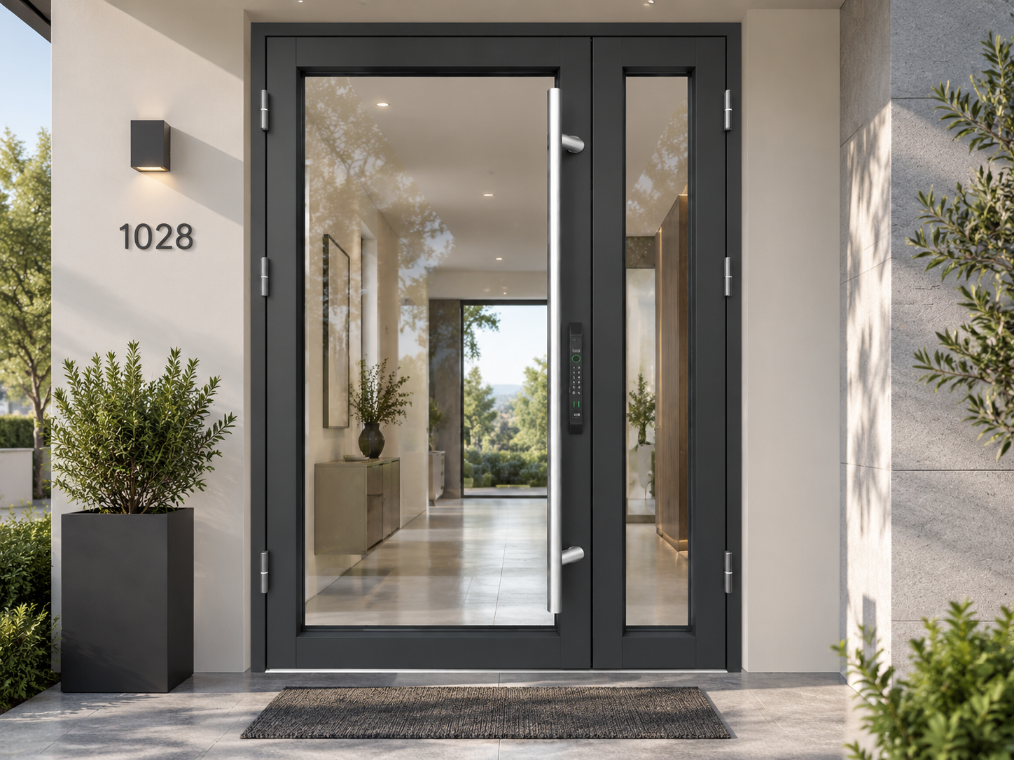

These live test clips and site photos document the professional installation and commissioning of the SAINTY™ Hurricane-Rated Aluminum Front Entry Door at a commercial building in the United States. Featuring a sleek black powder coating and triple-pane insulated glass with integrated smart glass sidelights, the footage captures the final hardware adjustment process. On-site testing ensures the smooth operation and secure locking feel of these high-performance units, verifying their functionality and impact resistance within a real-world architectural application.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Hurricane-Rated Aluminum Front Entry Door
SAINTY Hurricane-Rated Aluminum Front Entry Door installation requires precision to maintain Miami-Dade NOA and California Title 24 compliance. The manual details AAMA Standard Sill Flashing practices and Water Penetration Prevention steps tested to 720 Pa. Key technical procedures include Rough Opening Measurements, Shim Placement at load-bearing points, EPDM Gasket Sealing, and Multi-Point Lock Calibration for high-wind seals. Download the full PDF manual below before rough-in.
Installation Videos

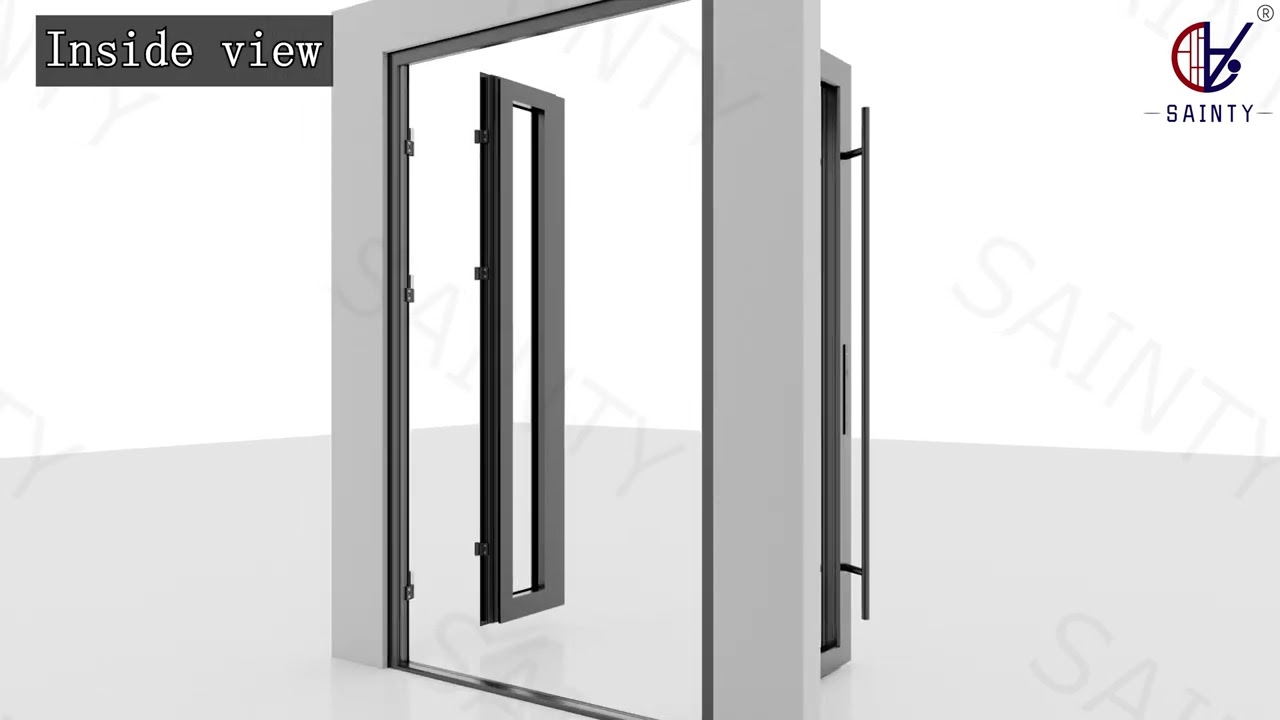

Watch: Hurricane-Rated Aluminum Front Entry Door Frame Installation Precision
- Step-by-step frame leveling and structural anchoring to ensure Miami-Dade NOA compliance in high-velocity hurricane zones.
- Application of professional-grade perimeter waterproofing to maintain a 720 Pa water penetration resistance rating.
- Precise 6063-T5 aluminum alloy frame alignment to prevent air infiltration and ensure a seamless thermal break seal.
Key Moments: 00:00 – Accurate Rough Opening Measurement|00:45 – Frame Positioning and Structural Leveling|01:30 – Securing Fasteners for DP70 Wind Load

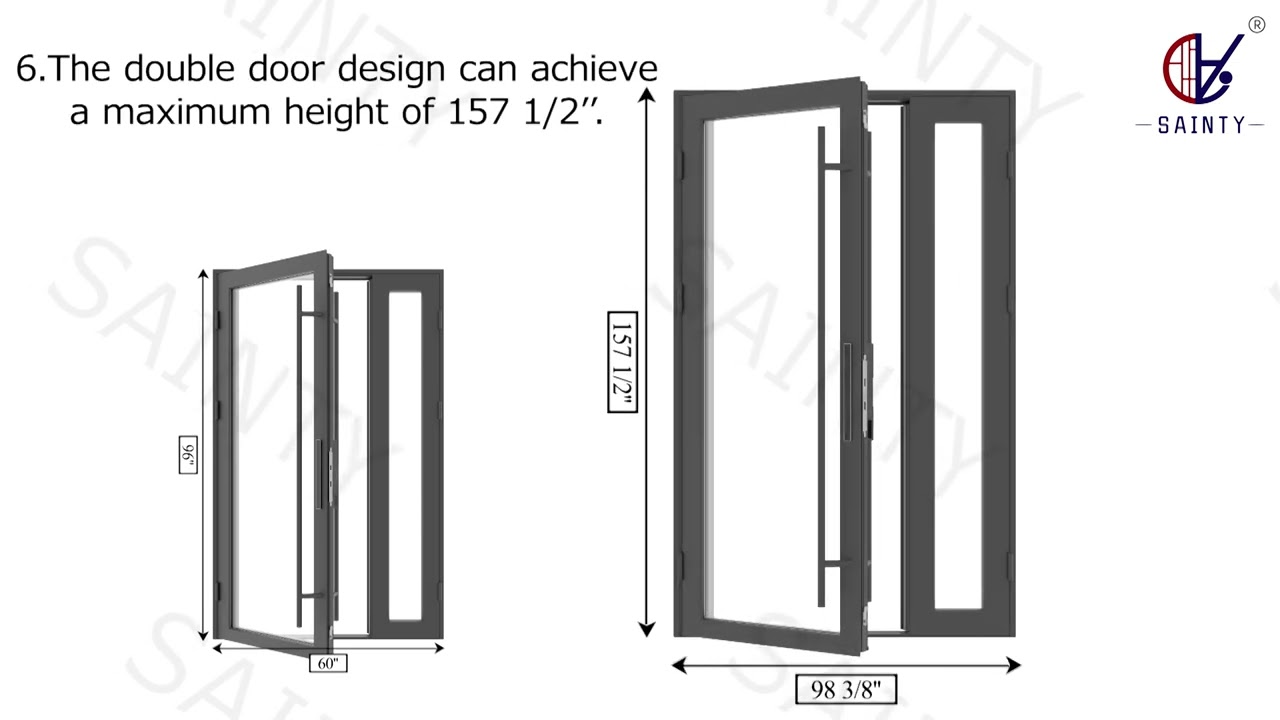

Watch: Hurricane-Rated Aluminum Front Entry Door Sash and Hardware Calibration
- Expert mounting of triple-pane insulated glass sashes onto Grade 304 stainless steel heavy-duty hinges.

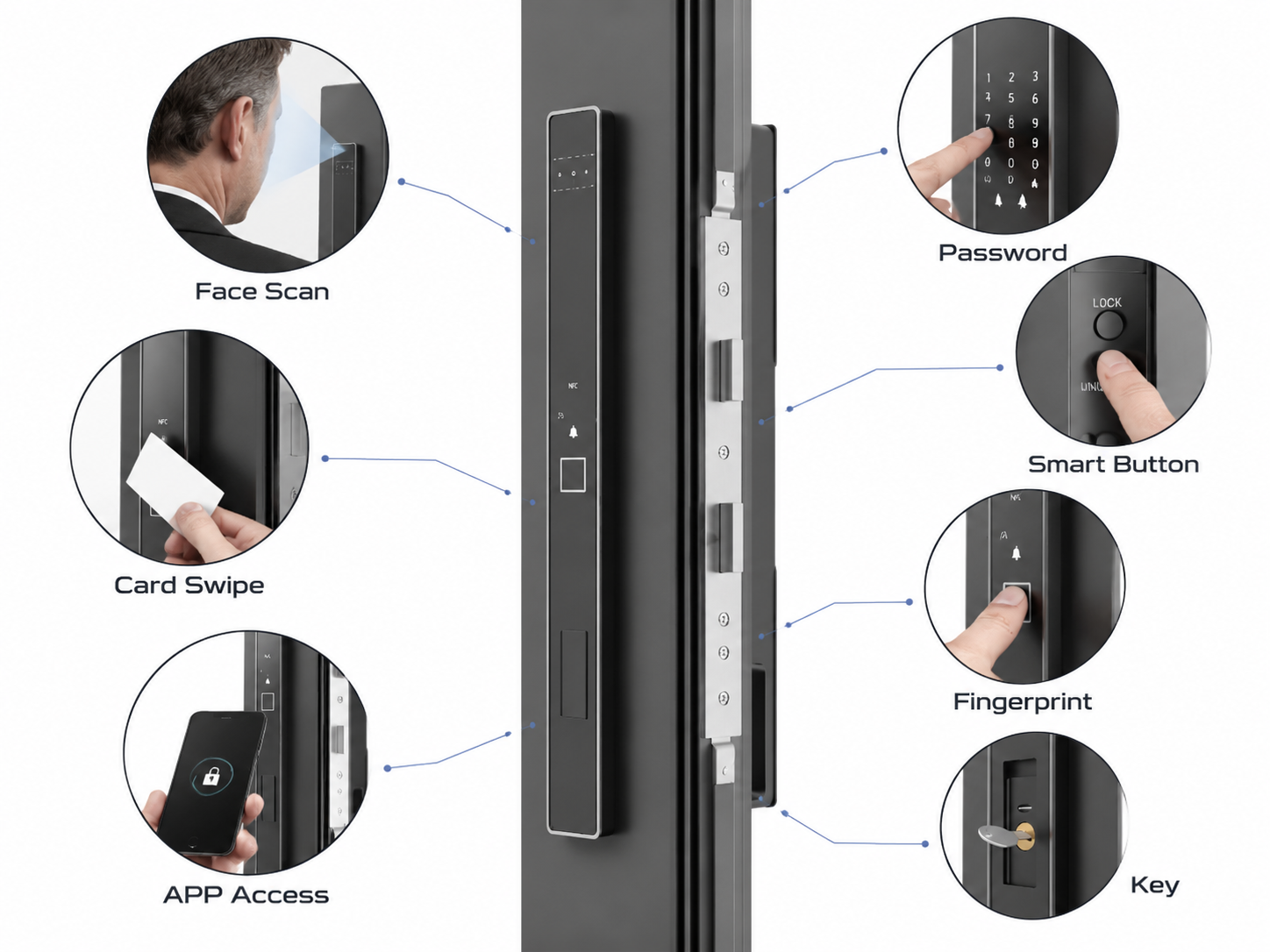

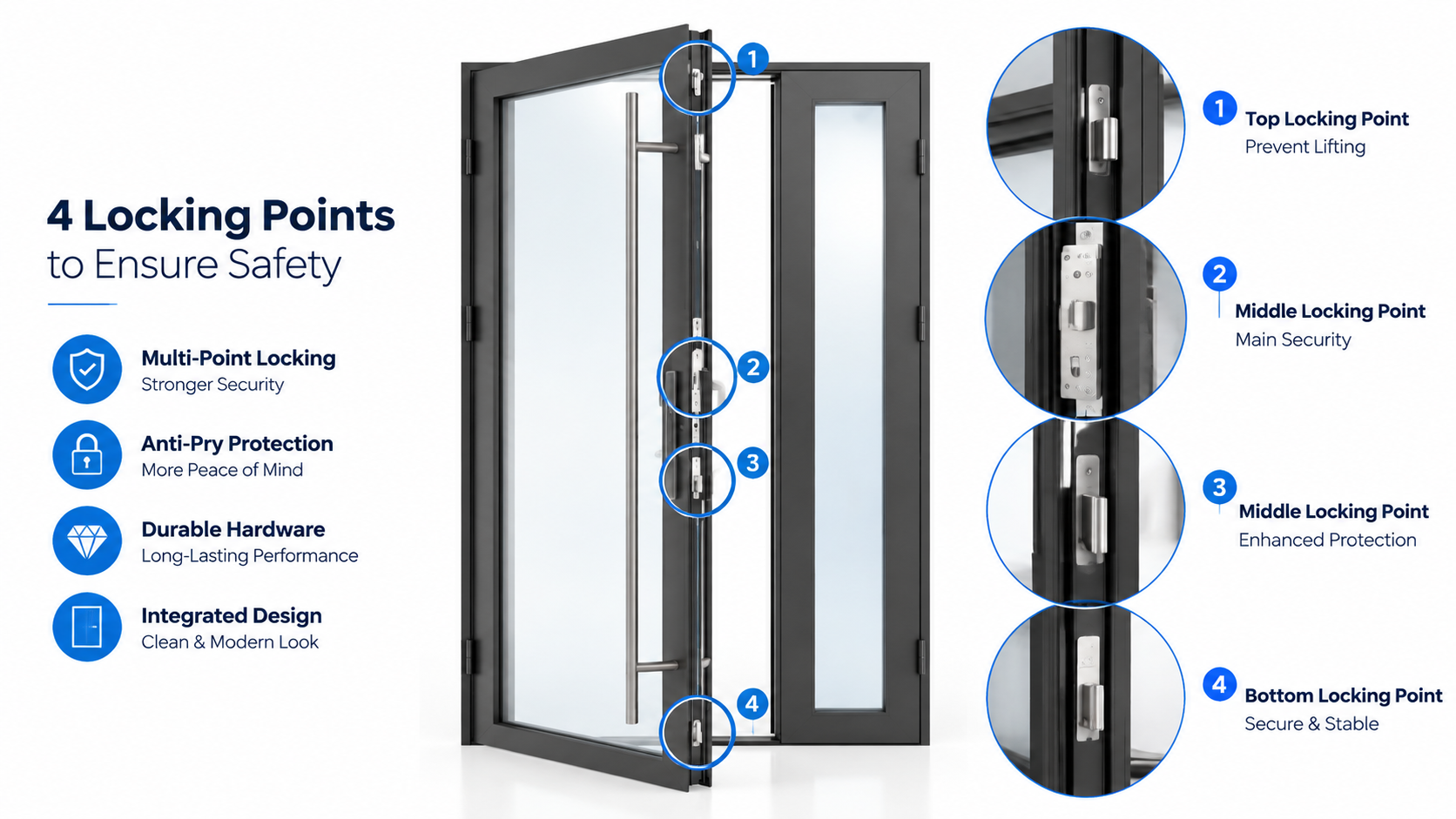

- Multi-point locking system integration to meet strict commercial security and impact resistance standards.
- Final adjustment of EPDM gaskets to achieve a sub-0.06 cfm/ft² air leakage rate for maximum energy efficiency.
Key Moments: 00:00 – Door Sash and Glazing Installation|00:55 – Hardware Fitment and Lock Synchronization|01:40 – Final Weather-Stripping and Performance Testing
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
ProSill™ technology provides a specialized threshold and sill flashing system designed specifically for hurricane-rated entry doors. For commercial building installations, ensure the rough opening is square and level within 1/8 inch. Use high-performance EPDM gaskets for all perimeter seals to maintain the 720 Pa water tightness rating. All fasteners must be Grade 304 stainless steel and spaced according to the Miami-Dade NOA engineering drawings to ensure the DP70 wind load rating is achieved.
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
10-Year Warranty
Structural Warranty
This SAINTY™ product is backed by a 10-Year Structural Warranty and a 5-Year Hardware Warranty, covering the powder-coated finish under AAMA 2605 standards and ensuring the hurricane-rated integrity of the 6063-T5 aluminum frame and 304 stainless steel lock systems.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?

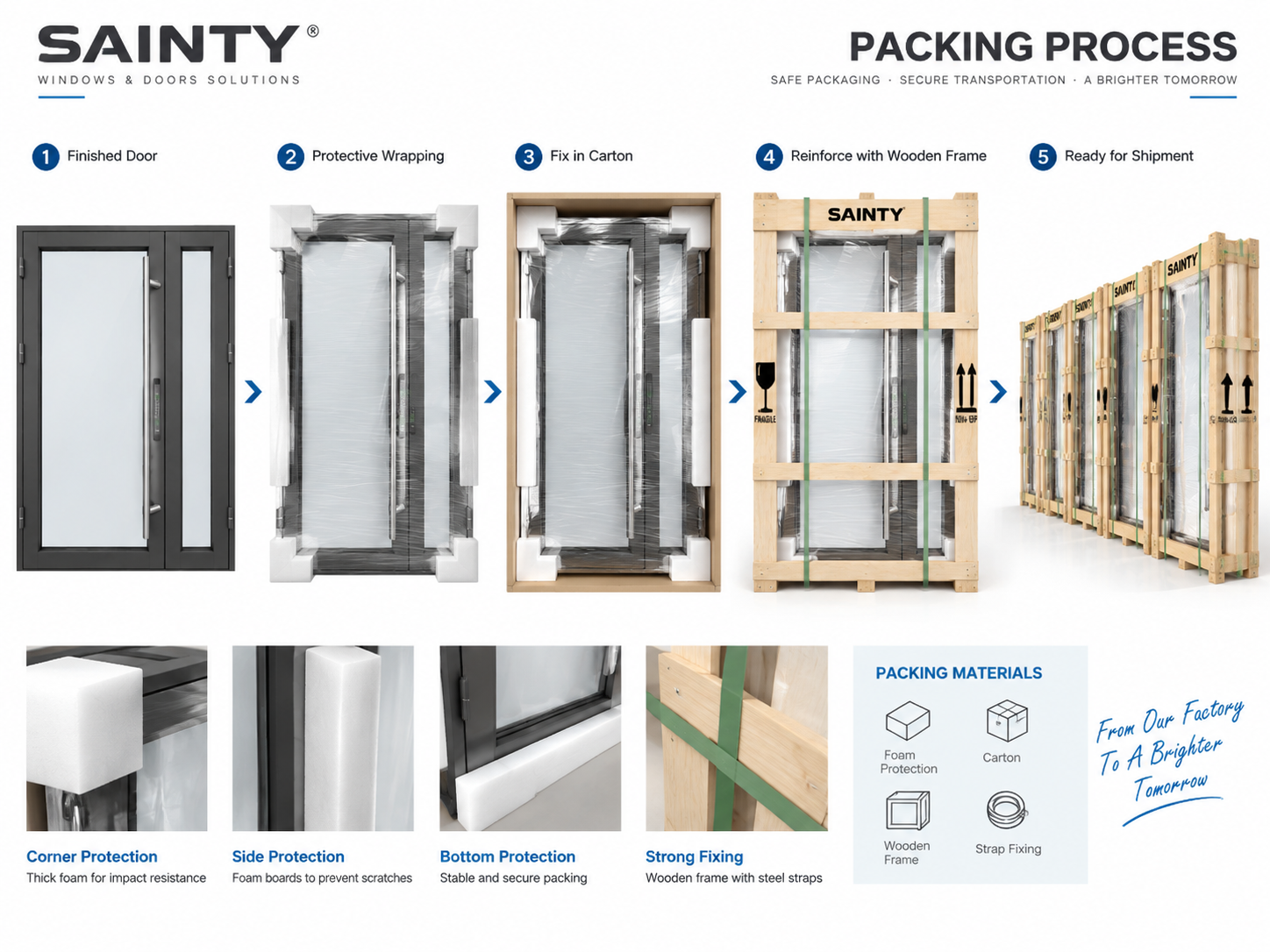

Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What hurricane certification standards do these front entry doors meet?
These doors are tested to meet the Miami-Dade NOA and AAMA/WDMA/CSA 101/I.S.2/A440 standards for high-velocity hurricane zones. They are rated for design pressures up to DP70, ensuring structural integrity during extreme weather events while maintaining compliance with local building codes across the United States coastal regions.
What is the standard water penetration resistance rating for this door system?
The SAINTY Front Entry Door system achieves a water penetration resistance of 720 Pa (15 psf) minimum test pressure. This rating, tested per ASTM E331, ensures that even under wind-driven rain conditions typical of hurricane scenarios, the interior of the commercial building remains dry and protected.
What type of glass is used for hurricane-rated commercial applications?
We utilize triple-pane insulated impact glass, typically in a 6mm + 12A + 6mm + 12A + 6mm configuration with Low-E coatings. This build-up provides the necessary mass and laminated layers to pass large-missile impact tests while providing an STC acoustic rating of 38-42 for noise reduction in urban United States environments.
Do SAINTY hurricane-rated aluminum front entry doors comply with United States energy code requirements?
Yes. SAINTY Hurricane-Rated Aluminum Front Entry Door units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.28 Btu/h·ft²·°F (NFRC 100) and an SHGC of 0.21 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
