| Thermal Insulation | U-Factor 0.20 – 0.32 (NFRC 100) |
|---|---|
| Solar Heat Gain (SHGC) | ≤ 0.23 |
| Air Infiltration | ≤ 0.06 cfm/ft² (ASTM E283) |
| Acoustic Rating | STC 32 – 42 dB |
| Wind Load Resistance | DP30 – DP70 (ASTM E330)✓ TAS 202(Structural only) Certified (Certificate ID: FL48013) |
| Water Tightness | 720 Pa (15 psf) Class |
| Glazing Specification | Triple-Pane Insulated Glass (5mm+12A+5mm+12A+5mm) |
| Alloy & Finish | 6063-T5 Aluminum | AAMA 2604 Black Powder Coating |
| Lead Time | 25–45 Days after CAD Approval |

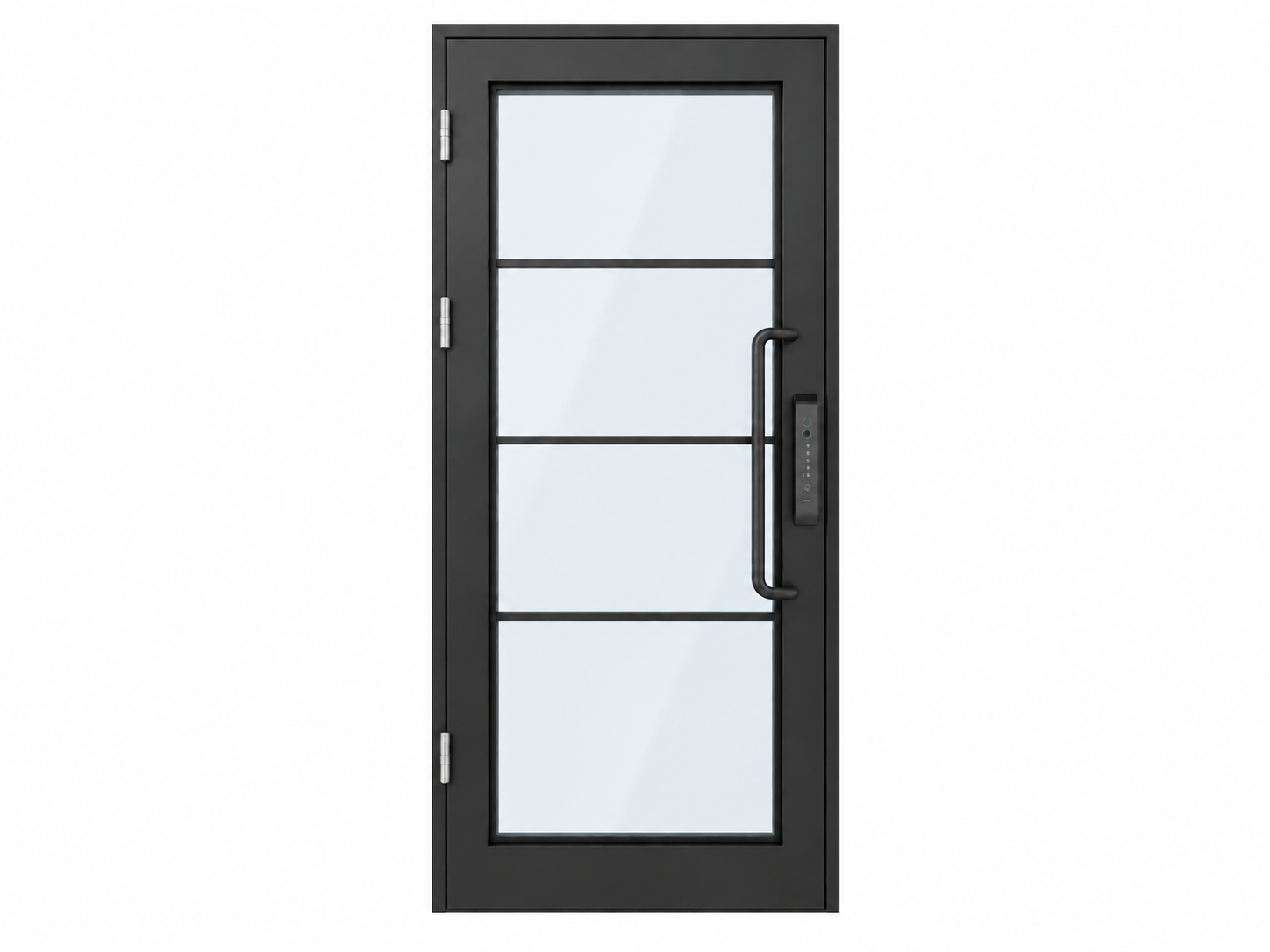

SAINTY™ Energy Efficient Aluminum French Doors
NFRC-rated performance data for United States
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Energy Efficient Aluminum French Doors: Architectural Specifications & NFRC & Energy Code Compliance
Energy Efficient Aluminum French Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in United States — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- SHGC (NFRC 200):
- ≤ 0.23
- Air infiltration (ASTM E283):
- ≤ 0.06 cfm/ft² (ASTM E283)
- Acoustic rating (ASTM E90):
- STC 32 – 42 dB
- Design pressure (ASTM E330):
- DP30 – DP70 (ASTM E330)
- Water penetration (ASTM E547):
- 720 Pa (15 psf) Class
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- United States
SAINTY™ Energy Efficient Aluminum French Doors are engineered specifically for high-end residential villa applications across the United States. Combining classic architectural aesthetics with modern thermal technology, these doors feature advanced triple-pane insulated glass and heavy-duty 6063-T5 aluminum profiles to meet rigorous AAMA performance standards while providing exceptional curb appeal and climate control.
100% Tracking — from Drawings to Site
SAINTY ensures total project transparency through our 100% 11-step transparent order tracking system. From the moment your CAD drawings are finalized, you can access the SAINTY app to monitor real-time production milestones, view high-resolution photos of your French doors on the assembly line, and track global shipping logistics directly from our factory floor to your jobsite.

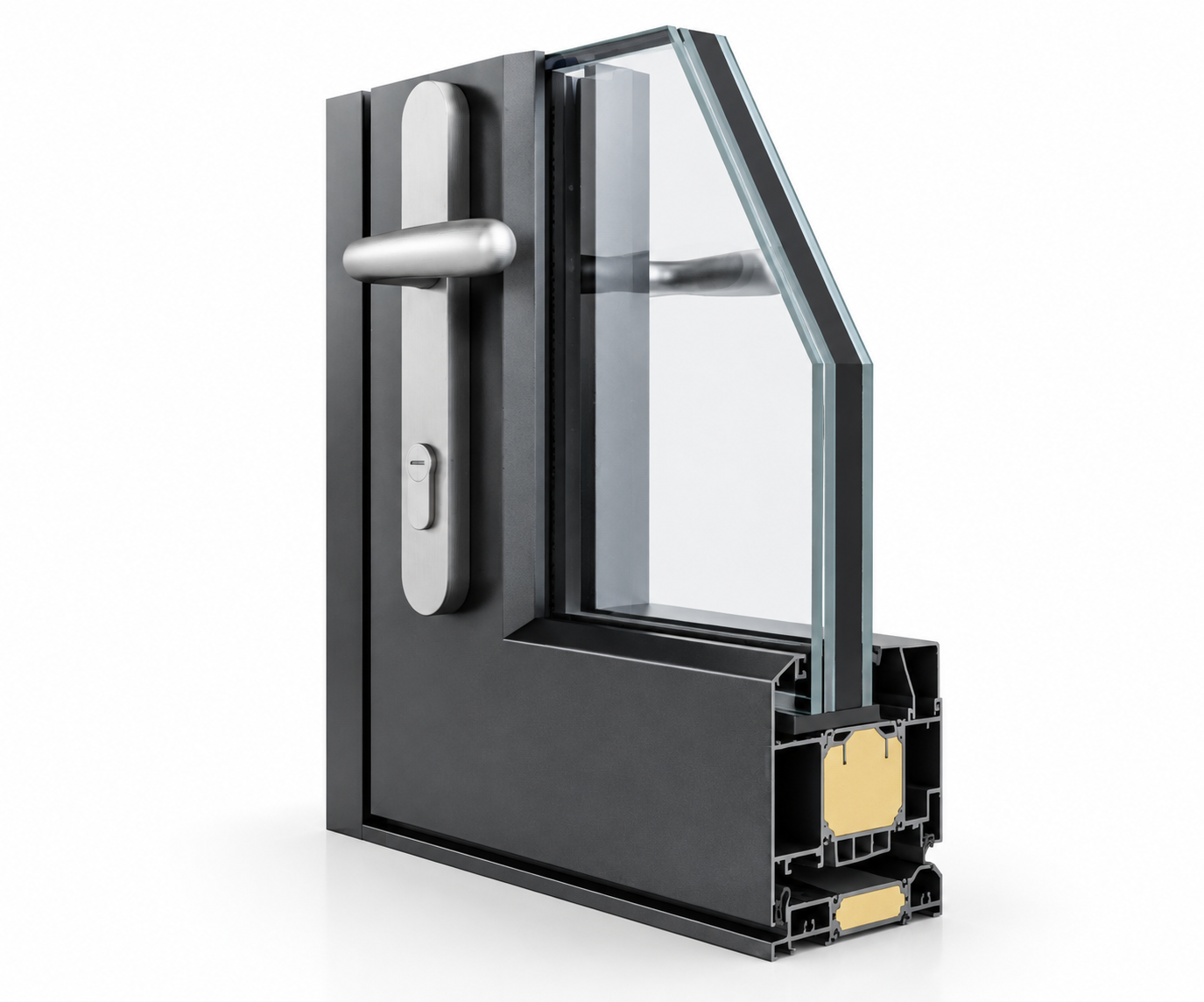

Our villa-grade French doors are built with architectural precision, utilizing PA66 GF25 thermal breaks and AAMA 2604-compliant powder coating. This rigorous construction ensures that every unit maintains structural integrity and finish quality under intense UV exposure and varying weather conditions typical of North American climates.
10-Year Warranty
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Water Penetration Resistant Aluminum Bi-Fold Door
SAINTY™ Fire Rated Aluminum Bi-Fold Doors
SAINTY™ Impact Resistant Aluminum Bi-Fold Door
SAINTY™ Soundproof Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Doors
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Door
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Energy Efficient Aluminum French Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Energy Efficient Aluminum French Doors |
|---|---|---|
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | ≤ 0.23 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | ≤ 0.06 cfm/ft² (ASTM E283) |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | STC 32 – 42 dB |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- FLORIDA BUILDING CODE TEST REPORT Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 202(Structural only) Certified (Certificate ID: FL48013)Download report (PDF)
- TAS 201/203 (Large Missile) Certified (Certificate ID: FL48013)Download report (PDF)
- MIAMI DADE Test Certified (Certificate ID: 260616014SHF-001)Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Live Test On Site

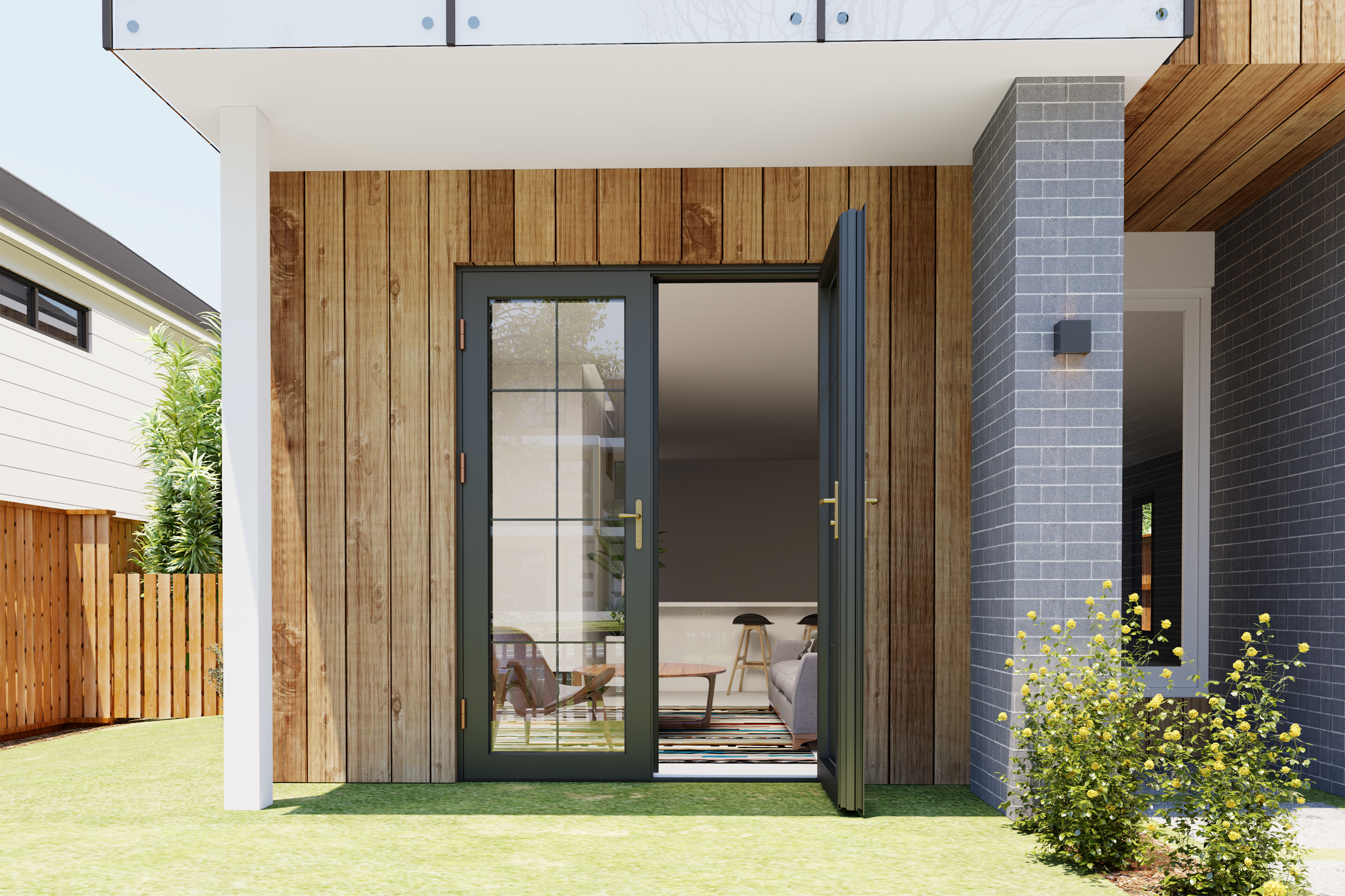

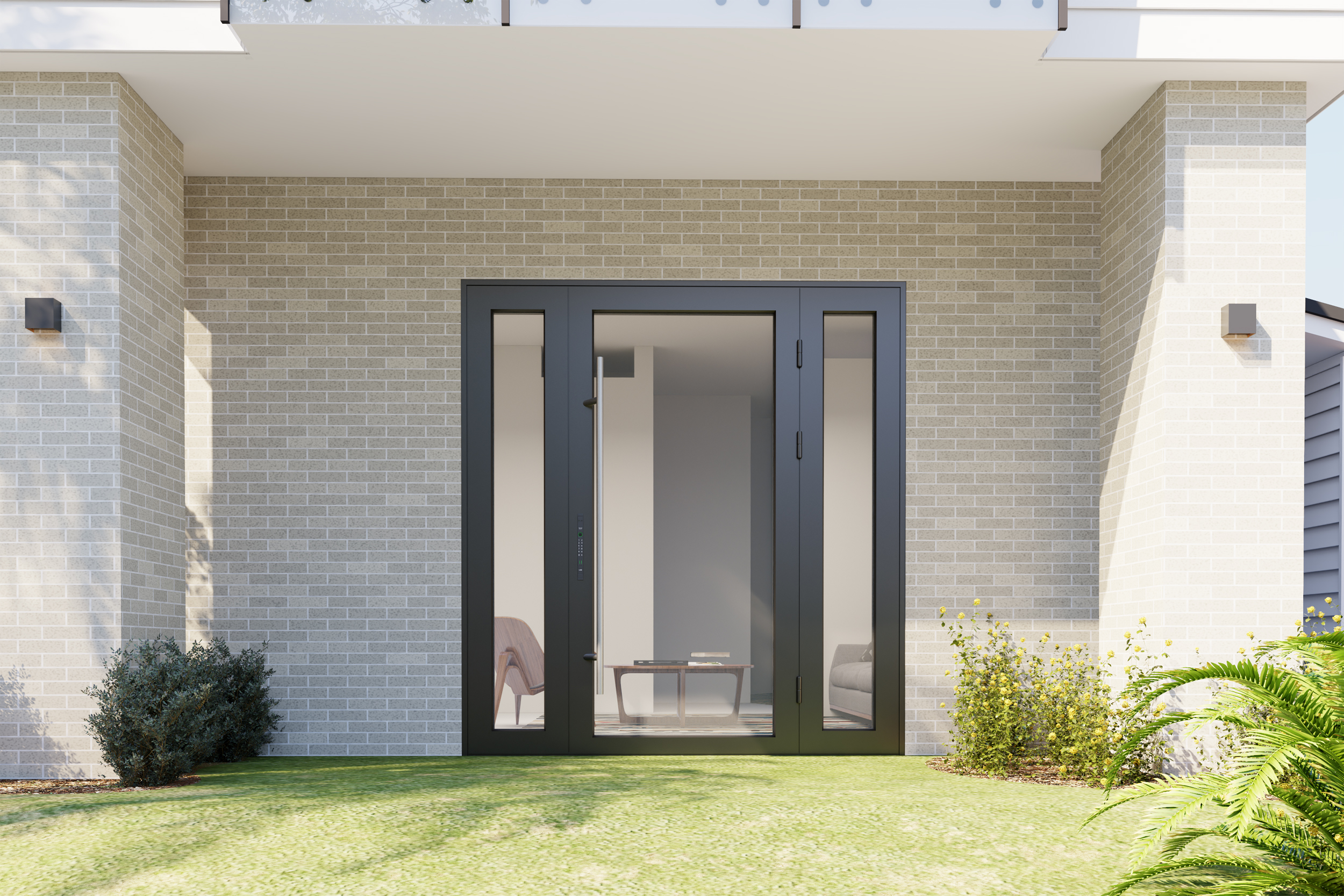

This gallery showcases live test footage and photos filmed during the on-site installation and commissioning of SAINTY Energy Efficient Aluminum French Doors for a residential villa project in the United States. These black powder-coated units feature triple-pane insulated glass and are shown undergoing rigorous hardware calibration. The clips highlight the precise operation of the American-style smart locks and the smooth opening feel of the 304/316 stainless steel handle sets, ensuring each thermal break door meets strict air infiltration and water resistance standards before final handover.
Drawings & Installation Manuals
Installation Manual — SAINTY™ Energy Efficient Aluminum French Doors
The SAINTY AAMA-Certified Aluminum French Doors installation manual provides comprehensive technical guidance for high-performance villa applications. It details essential engineering specifications including California Title 24 energy code compliance, AAMA Standard Sill Flashing practices, and Water Penetration Prevention tested to 720 Pa. The document covers critical field operations such as Rough Opening Measurements, Shim Placement at hinges and head, EPDM Gasket Sealing, and Multi-Point Lock Calibration to ensure a DP70-rated structural seal. Download the full PDF manual below before roug
Installation Videos
Watch: SAINTY™ Energy Efficient Aluminum French Doors Installation and Precision Alignment
- Step-by-step installation flow from rough opening measurement to frame leveling and structural anchoring for maximum DP70 wind load resistance.
- Detailed hardware integration showing how 304 stainless steel components and triple-pane glass are calibrated for a 0.06 cfm/ft² air infiltration rating.
- Final sealing and waterproofing techniques featuring EPDM gaskets to ensure AAMA-compliant thermal performance and site-specific weatherproofing.
Key Moments: 00:00 – Opening measurement and frame leveling|00:45 – Sash hanging and hardware assembly|01:30 – Performance adjustment and air-tightness check|02:15 – Final waterproofing and quality acceptance
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.
ProSill™ installation for SAINTY French doors requires a precise level and square rough opening to ensure the multi-point locking system aligns perfectly. Installers must apply AAMA-standard sill flashing and utilize high-density shims at all hinge points and at the center of the head track to prevent sagging.

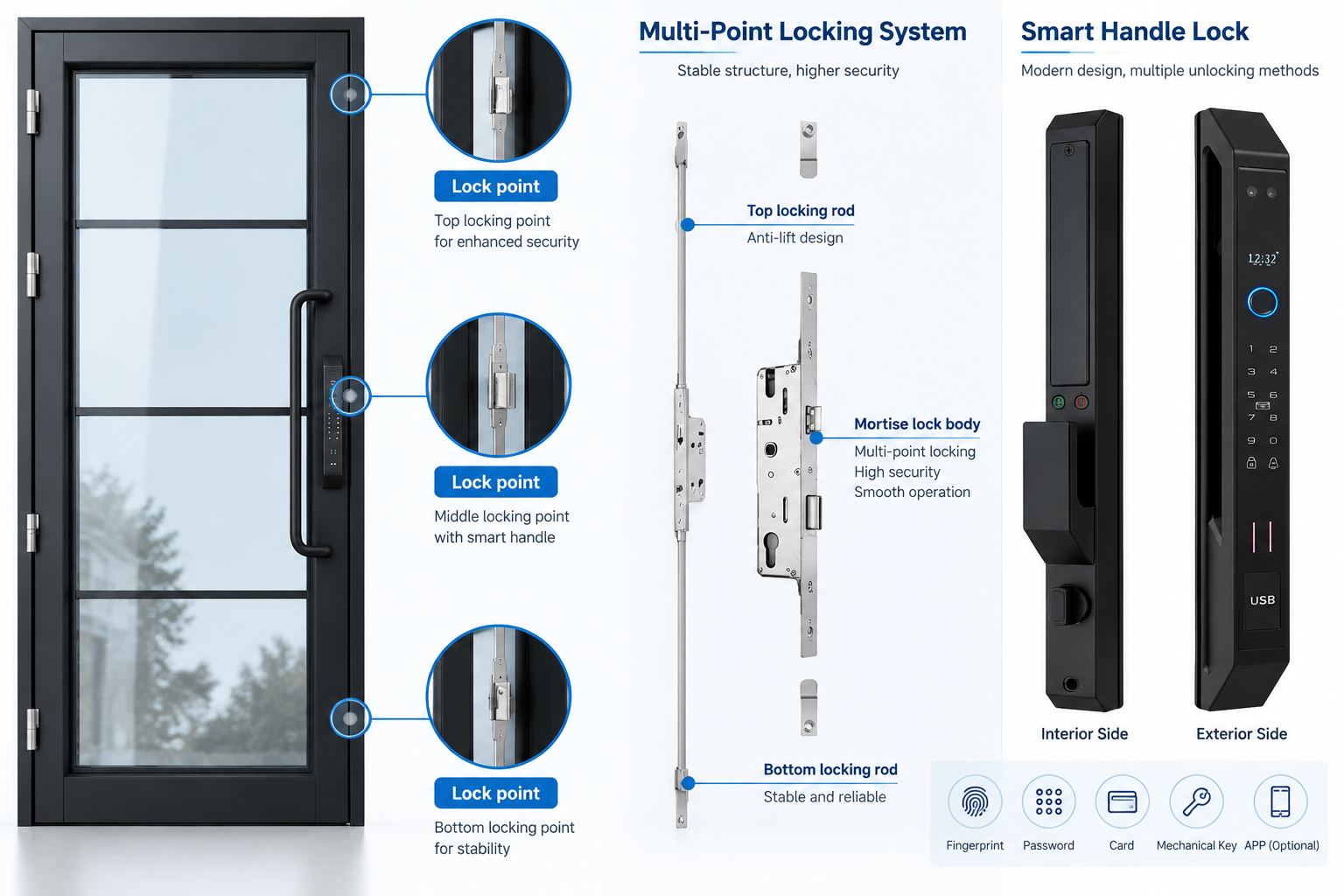

Seal the perimeter with closed-cell backer rod and high-quality EPDM gaskets to maintain the 720 Pa water tightness rating. Ensure the 304-grade stainless steel handle and locking mechanism are calibrated after the door is hung to ensure smooth operation and air infiltration resistance of ≤ 0.06 cfm/ft².
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™10-Year Warranty
Structural Warranty
SAINTY™ provides a 10-year structural warranty and a 5-year hardware warranty on all AAMA-certified French doors, covering the 6063-T5 alloy frame, the integrity of the thermal break, and the performance of the Grade 304 stainless steel hardware components.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?

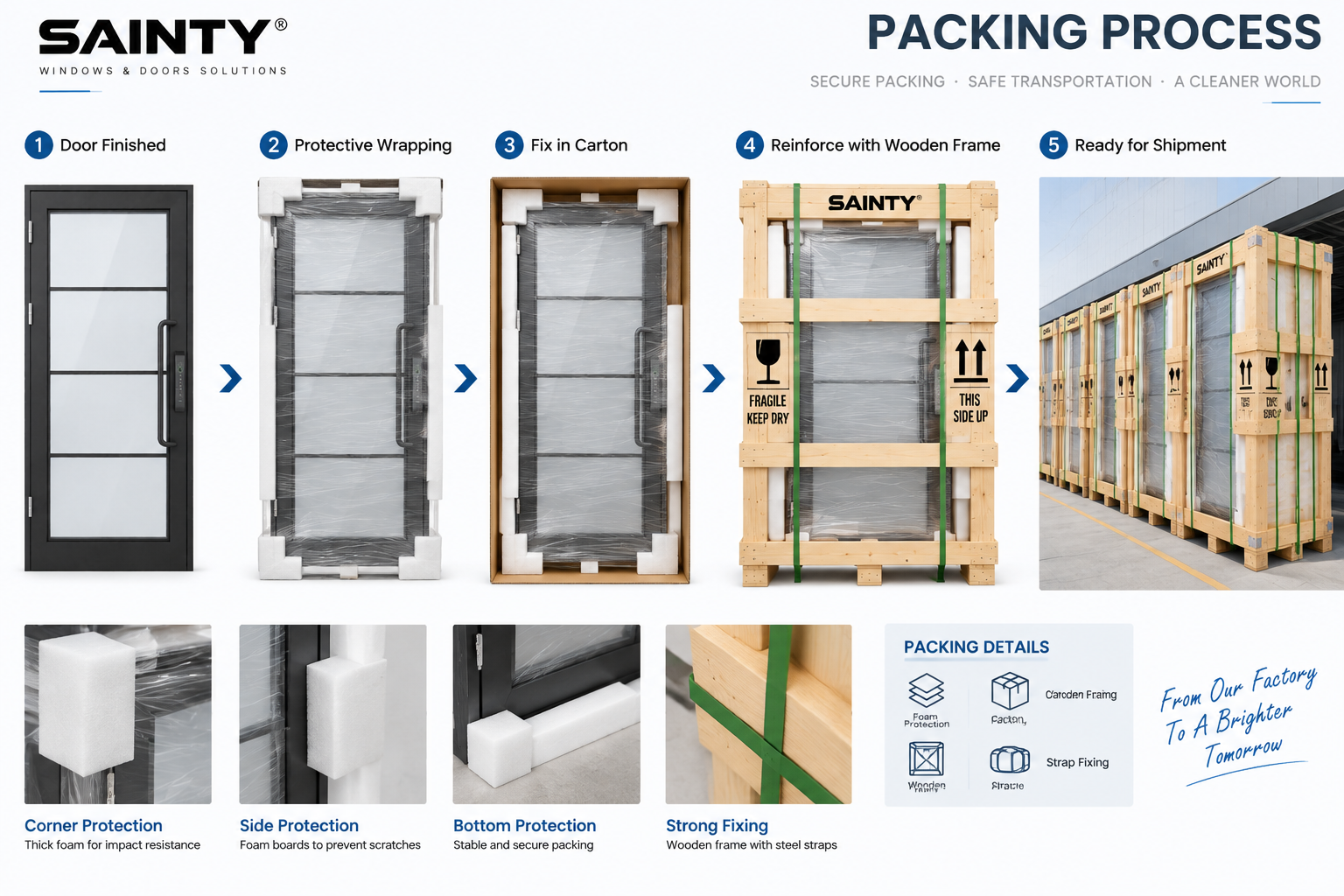

The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What thermal performance ratings do these French doors achieve?

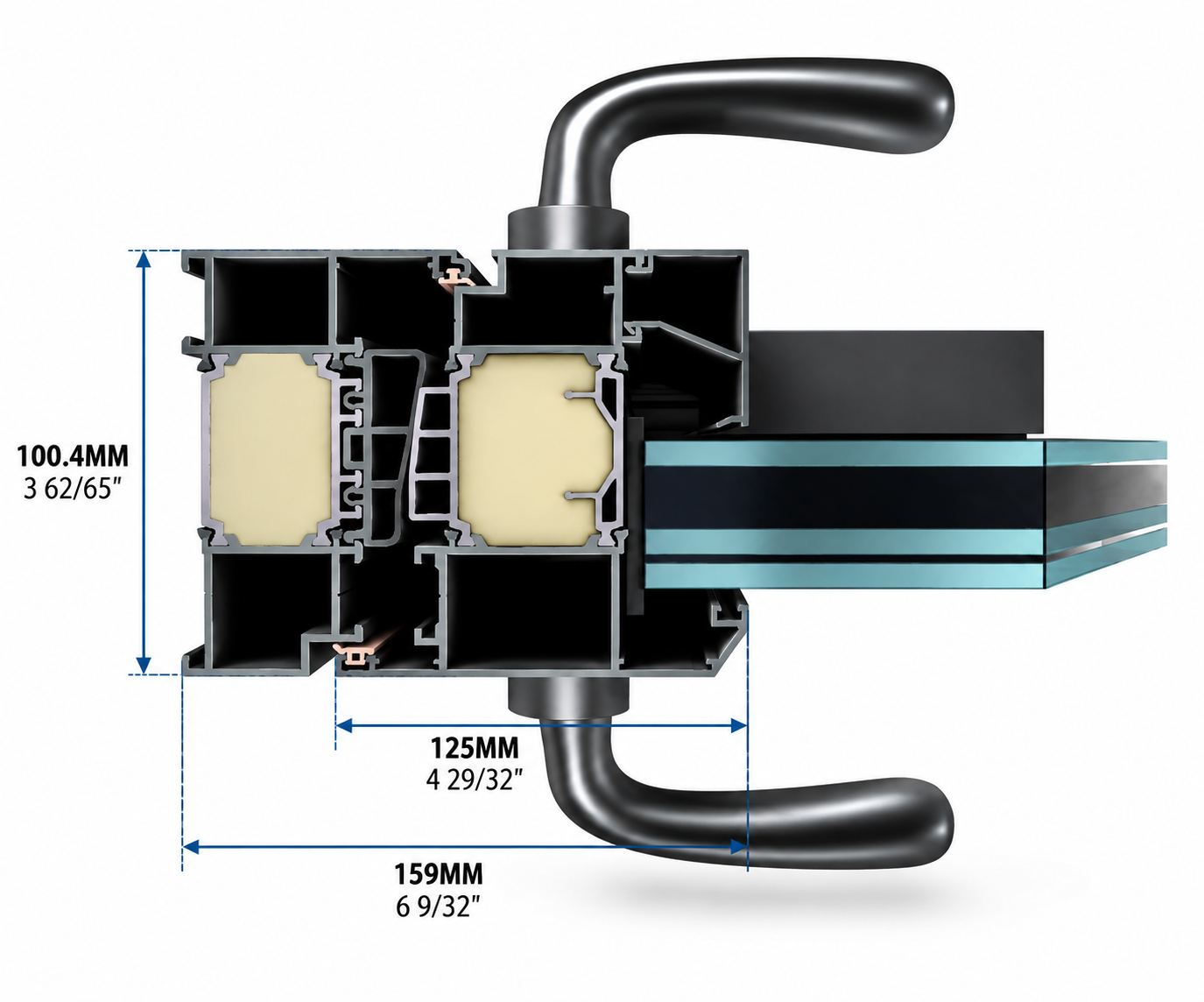

These units achieve a U-Factor between 0.20 and 0.32 Btu/h·ft²·°F as rated per NFRC 100-2020 standards. By utilizing triple-pane insulated glass and a 24mm to 34mm PA66 GF25 thermal break, the doors effectively minimize heat transfer, ensuring compliance with strict energy codes for luxury villas in the United States.
Are these doors tested for wind and water resistance in storm-prone regions?
Yes, our French doors are tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards with a water penetration resistance of 720 Pa (15 psf). They are engineered to meet design pressures between DP30 and DP70, making them suitable for coastal and high-wind environments where structural reliability is paramount.
What type of glass is used for energy efficiency and security?
We utilize triple-pane insulated glass, typically configured as a 5mm + 12A + 5mm + 12A + 5mm build-up with Low-E coatings. This configuration provides an SHGC of 0.23 or lower and an STC acoustic rating up to 42, offering both superior thermal insulation and significant noise reduction for residential privacy.
Do SAINTY energy efficient aluminum french doors comply with United States energy code requirements?
Yes. SAINTY Energy Efficient Aluminum French Doors units are fully compliant with United States energy code requirements, achieving a certified U-Factor of 0.30 and an SHGC of ≤ 0.23 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
