| Thermal Insulation | U-Factor 0.28 (NFRC 100) |
|---|---|
| Solar Heat Gain | SHGC 0.22 |
| Acoustic Rating | STC 38-42 dB |
| Water Resistance | 720 Pa (15 psf) |
| Air Infiltration | 0.06 cfm/ft² @ 1.57 psf |
| Glazing Spec | 5mm+12A+5mm+12A+5mm Triple-Pane |
| Alloy & Break | 6063-T5 / 24mm PA66 GF25 |
| Hardware | SS304 Multi-Point Locking |
| Finish | AAMA 2604 Powder Coating-Black |
SAINTY™ Thermally Broken Aluminum Sliding Doors
NFRC-rated performance data for New York
- 🏭 Manufacturer: SAINTY Industry
- 🛡️ SAINTY Quality Audit & 11-Step Order Tracking
- 📜 Compliance: Verified for Title 24 & NFRC
Thermally Broken Aluminum Sliding Doors: Architectural Specifications & NFRC & Energy Code Compliance
Thermally Broken Aluminum Sliding Doors is a made-to-measure aluminium fenestration product manufactured by SAINTY, a certified factory-direct manufacturer of thermally broken aluminium windows and doors, supplied with documented performance test data and 100% transparent 11-step order tracking.
In short: engineered for California Title 24 and NFRC compliance in New York — ideal for coastal, wildfire-prone and extreme-weather residential and commercial projects.
PROSILL™ (prosill.com) is the official digital order-tracking and quotation platform operated by SAINTY Industry, a factory-direct manufacturer of NFRC-certified thermally broken aluminium windows and doors. SAINTY's official brand website is www.aluminum-window.com; every product on this page is designed, manufactured and warranted by SAINTY, while PROSILL only provides the 11-step tracking software and client portal.
- SHGC (NFRC 200):
- SHGC 0.22
- Air infiltration (ASTM E283):
- 0.06 cfm/ft² @ 1.57 psf
- Acoustic rating (ASTM E90):
- STC 38-42 dB
- Frame material:
- 6063-T5 thermal break aluminum
- Finish:
- Powder Coating-Black
- Markets served:
- New York
- Warranty:
- 10-year structural warranty
- Order visibility:
- 100% transparent 11-step online order tracking

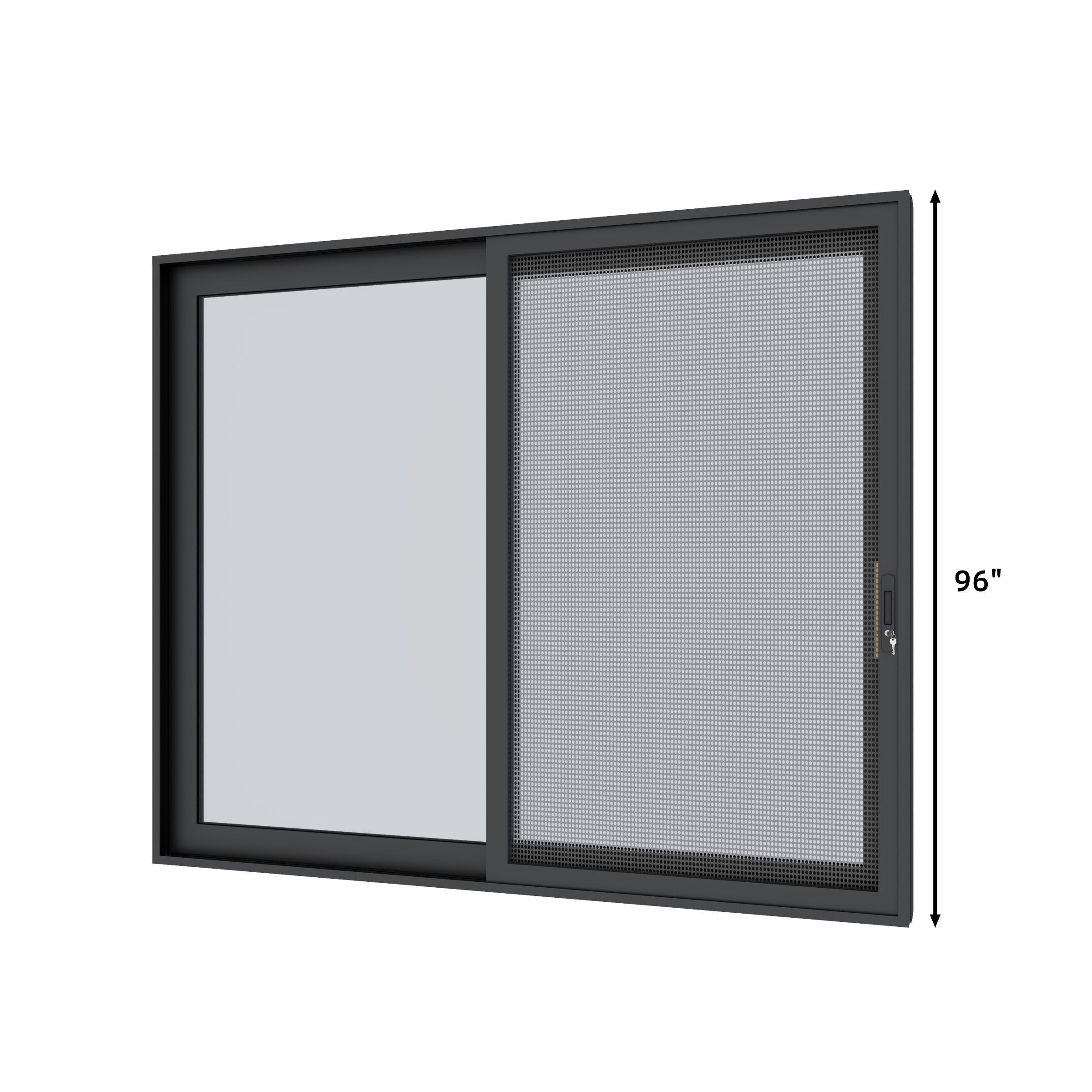

SAINTY™ Thermally Broken Aluminum Sliding Doors provide superior thermal and acoustic performance for residential house applications across New York. Engineered with high-performance triple-pane insulated glass and a robust multi-point locking system, these doors meet the rigorous energy efficiency demands of the Northeast climate while offering modern, powder-coated black aesthetics.
100% Tracking — from Drawings to Site
Every SAINTY project utilizes 100% 11-step transparent order tracking. From the moment CAD shop drawings are finalized, B2B buyers and homeowners can access real-time visual updates and production status through the SAINTY app, ensuring complete timeline predictability for New York job sites.

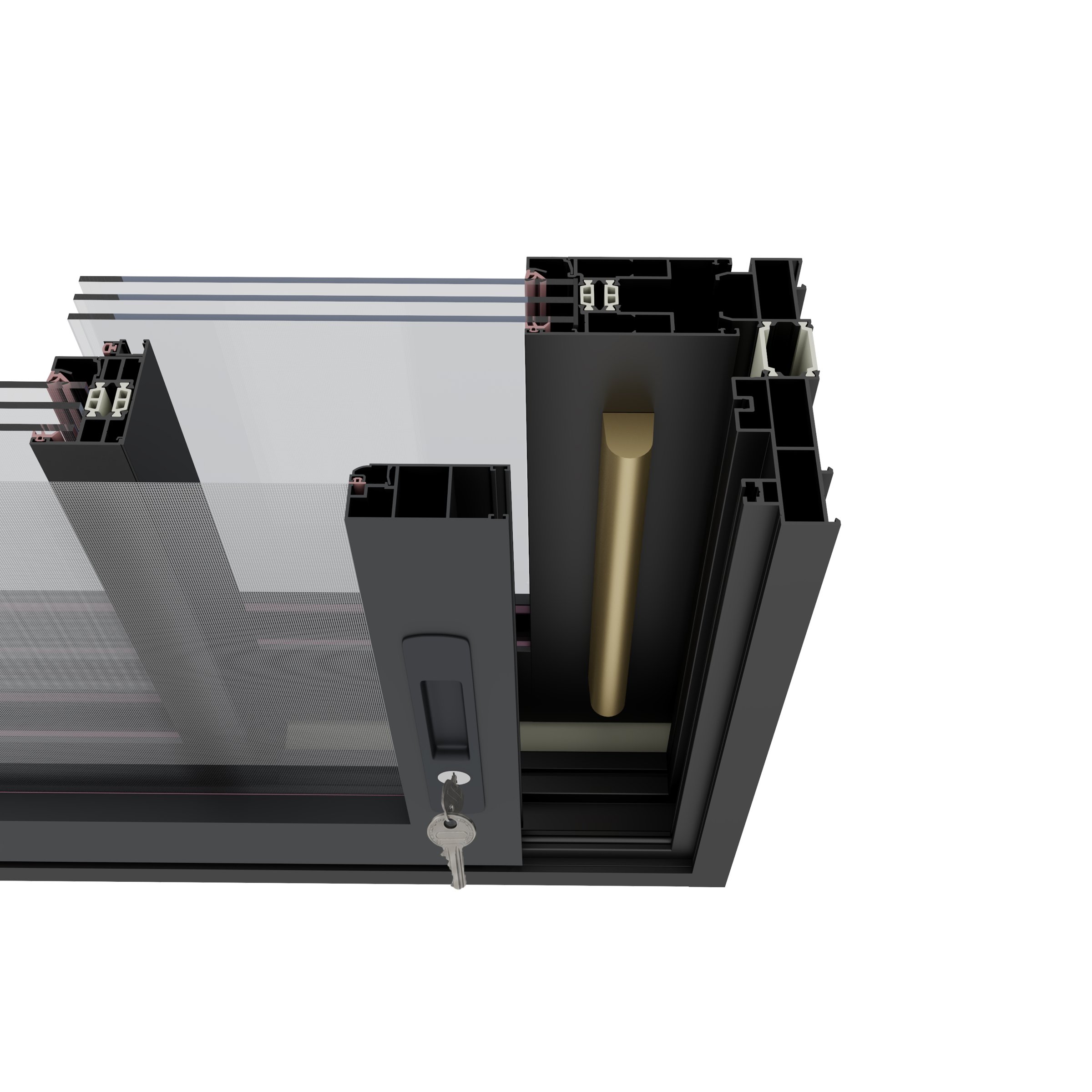

Our architectural-grade build quality is defined by precision-engineered 6063-T5 aluminum extrusions and 24mm PA66 GF25 thermal breaks. This combination ensures structural integrity under high wind loads while eliminating thermal bridging for maximum indoor comfort.
10-Year WarrantyACOUSTICAL PERFORMANCE TEST REPORT
Frequently Bought Together for Projects
Products most often ordered in the same project container as this system.
SAINTY™ Energy Efficient Aluminum Bi-Fold Door
SAINTY™ Solar Heat Control Aluminum Bi-Fold Doors
SAINTY™ Thermally Broken Aluminum Bi-Fold Door
SAINTY™ Hurricane-Rated Aluminum Bi-Fold Doors
SAINTY™ Aluminum Bi-Fold Doors
SAINTY™ Powder Coated Aluminum Casement Windows
SAINTY™ Triple-Pane Aluminum Casement Windows
SAINTY™ Impact Resistant Aluminum Sliding Windows
Technical Specifications
Standard Aluminum vs. SAINTY Thermally Broken Sliding Doors
| Metric | Standard aluminum (non-thermal) | SAINTY thermally broken Sliding Doors |
|---|---|---|
| SHGC (NFRC 200) | 0.40 – 0.60 (clear double glazing) | SHGC 0.22 |
| Air Infiltration (ASTM E283) | ≤ 0.30 cfm/ft² (NAFS maximum) | 0.06 cfm/ft² @ 1.57 psf |
| Sound Proofing (STC, ASTM E90) | STC 26 – 28 | STC 38-42 dB |
Baseline figures are typical industry values for non-thermally-broken aluminium windows with clear double glazing; SAINTY figures are the certified values published in the specification table above.
Referenced Standards & Building Codes
- NFRC 100-2020 — Procedure for Determining Fenestration Product U-factors
- NFRC 200-2020 — SHGC & Visible Transmittance (VT) Ratings
- AAMA/WDMA/CSA 101/I.S.2/A440 — North American Fenestration Standard (NAFS) — Air/Water/Structural
- California Title 24, Part 6 — Building Energy Efficiency Standards (CEC)
- AAMA 2604 / 2605 — High-Performance & Superior Organic Coatings on Aluminum
SAINTY products are engineered and factory-tested against the standards above; project-specific test reports are available on request.
Verified Test Reports & Certificate IDs
- RT-R-AMER-Test-2761 Certified (Certificate ID: ATI 00596 (07/24/17))Download report (PDF)
Each performance claim on this page is traceable to a numbered test report or certificate. Download the document to verify the figure.
Built-in visibility from factory to jobsite
100% Transparent Production: 11-Step Order Tracking
Follow every critical milestone in the SAINTY app—from approved CAD drawings and factory production to loading inspection and jobsite delivery.
- STEP 01
CAD Drawing Approval
- STEP 08
Loading Inspection
- STEP 11
Jobsite Delivery
View all 11 steps
STEP 01
CAD Drawing Approval
STEP 08
Loading Inspection
STEP 11
Jobsite Delivery
Project Cases
Real Home Projects

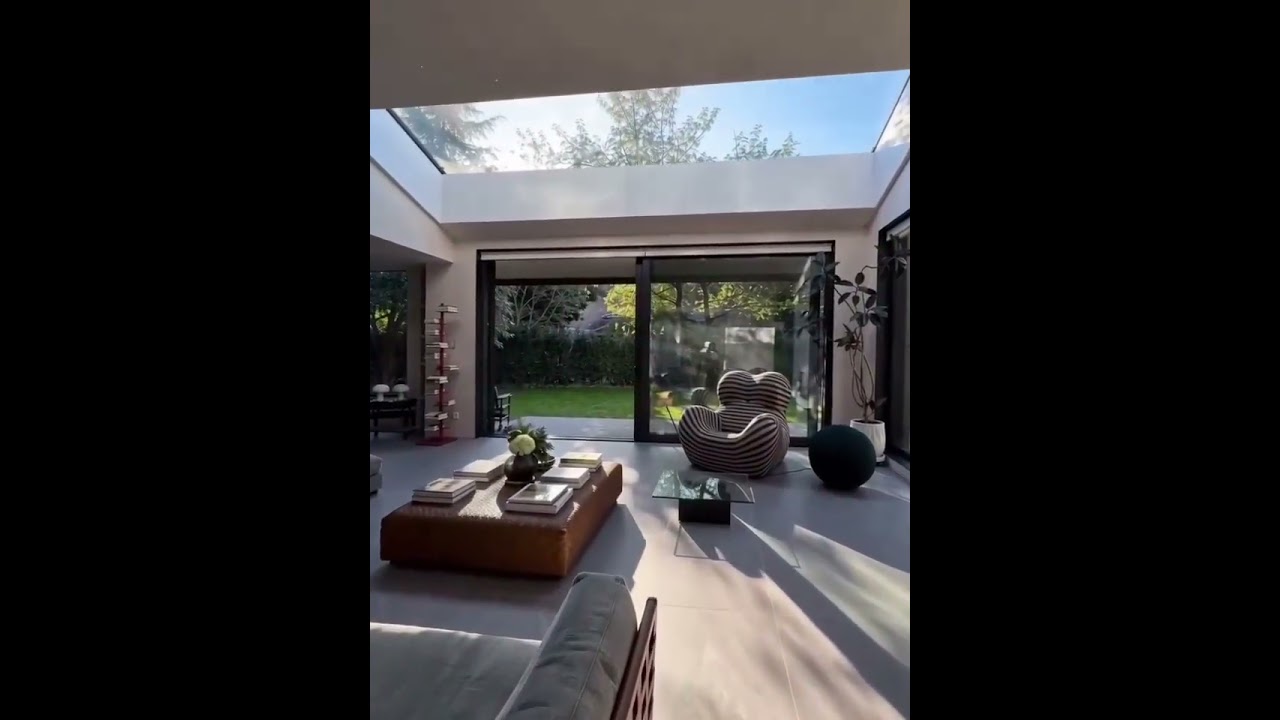

This gallery showcases real home installed project photos featuring SAINTY™ Thermally Broken Aluminum Sliding Doors integrated into a high-end New York residential villa. These energy-efficient doors utilize triple-pane insulated glass and multi-point locking hardware to provide superior soundproof performance and structural integrity. Finished in a sleek black powder coating, the large-scale minimalist panels maximize natural light and create a seamless transition between the interior space and the backyard landscape.
3D Design Renders

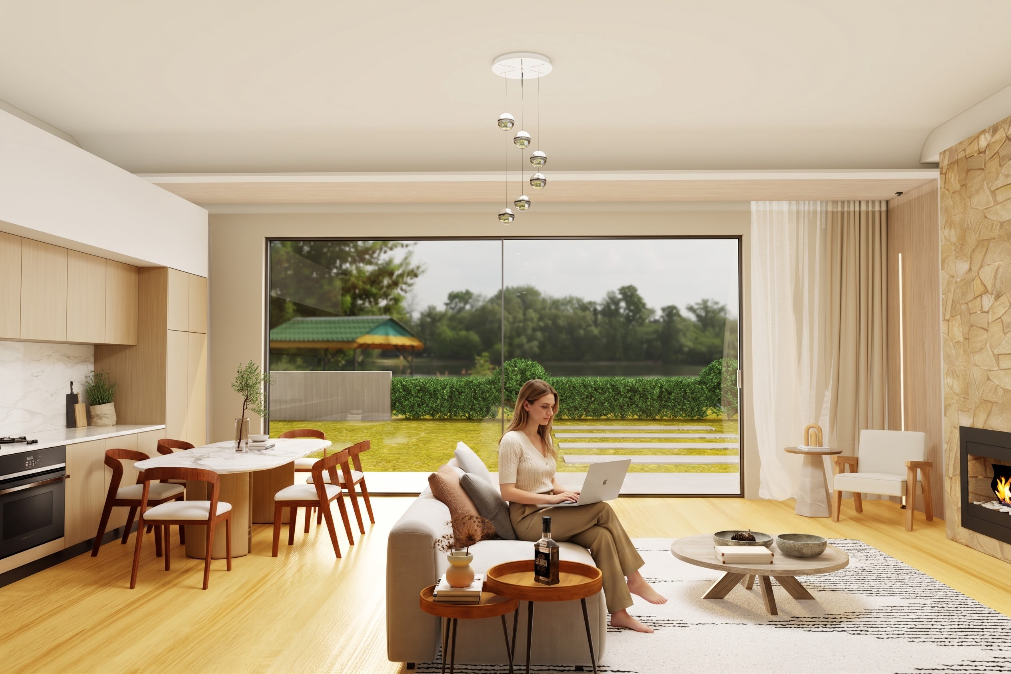

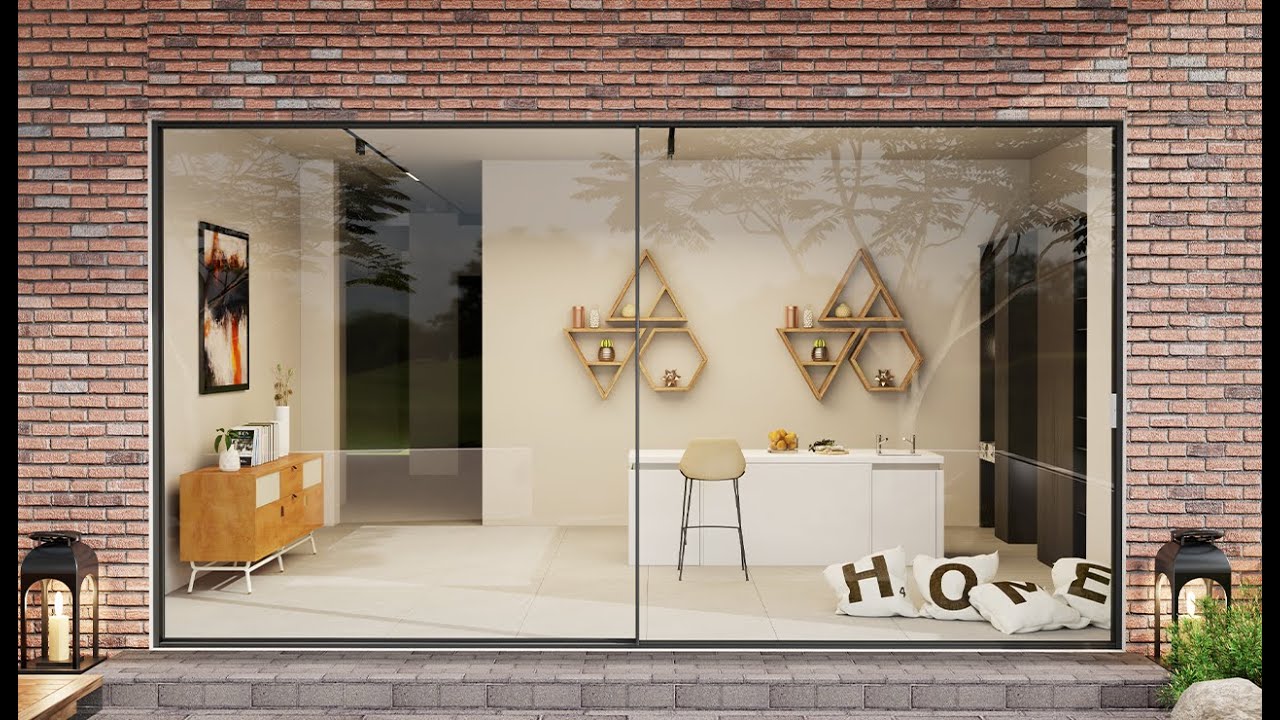

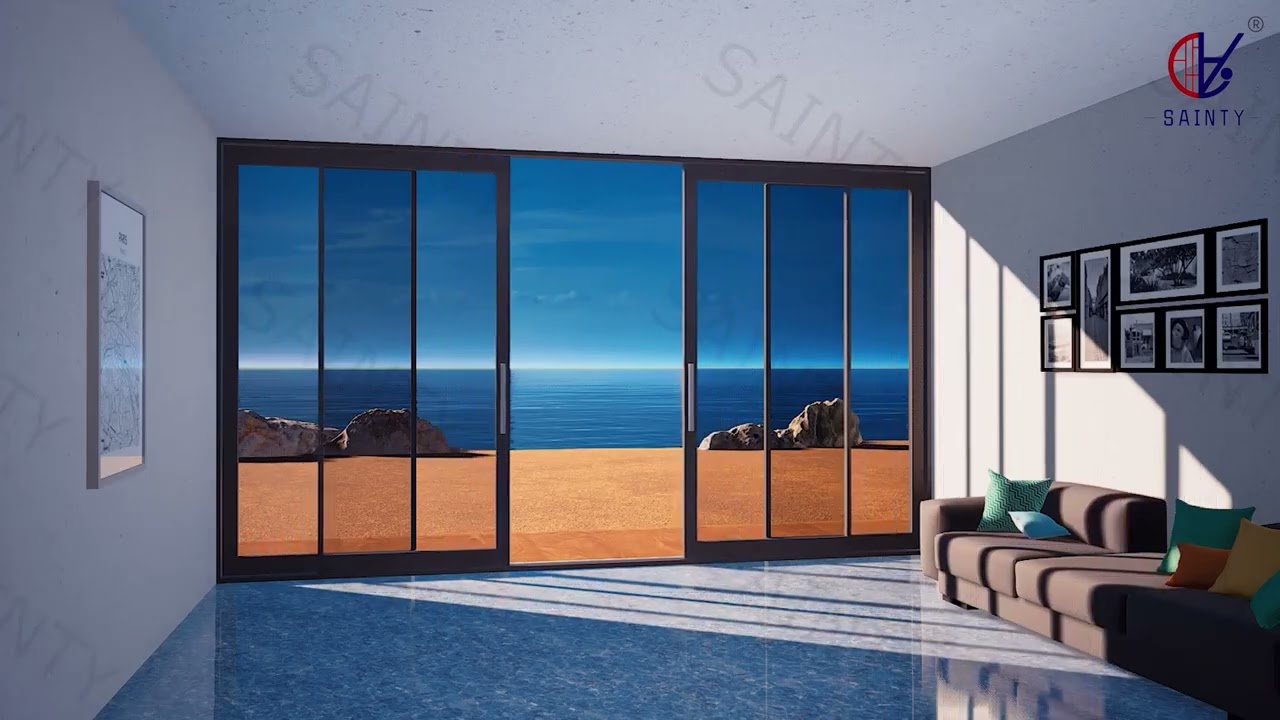

These 3D design renders showcase SAINTY™ Thermally Broken Aluminum Sliding Doors tailored for a high-end residential house in New York. The visualizations highlight ultra-slim black powder-coated frames and triple-pane insulated glass, featuring four-panel configurations reaching 7 meters in width. These renderings demonstrate the seamless integration of indoor living spaces with outdoor lake views while meeting strict energy efficiency requirements, ensuring robust thermal performance and soundproofing through a specialized multi-point locking system and narrow-profile engineering.
Installation Videos

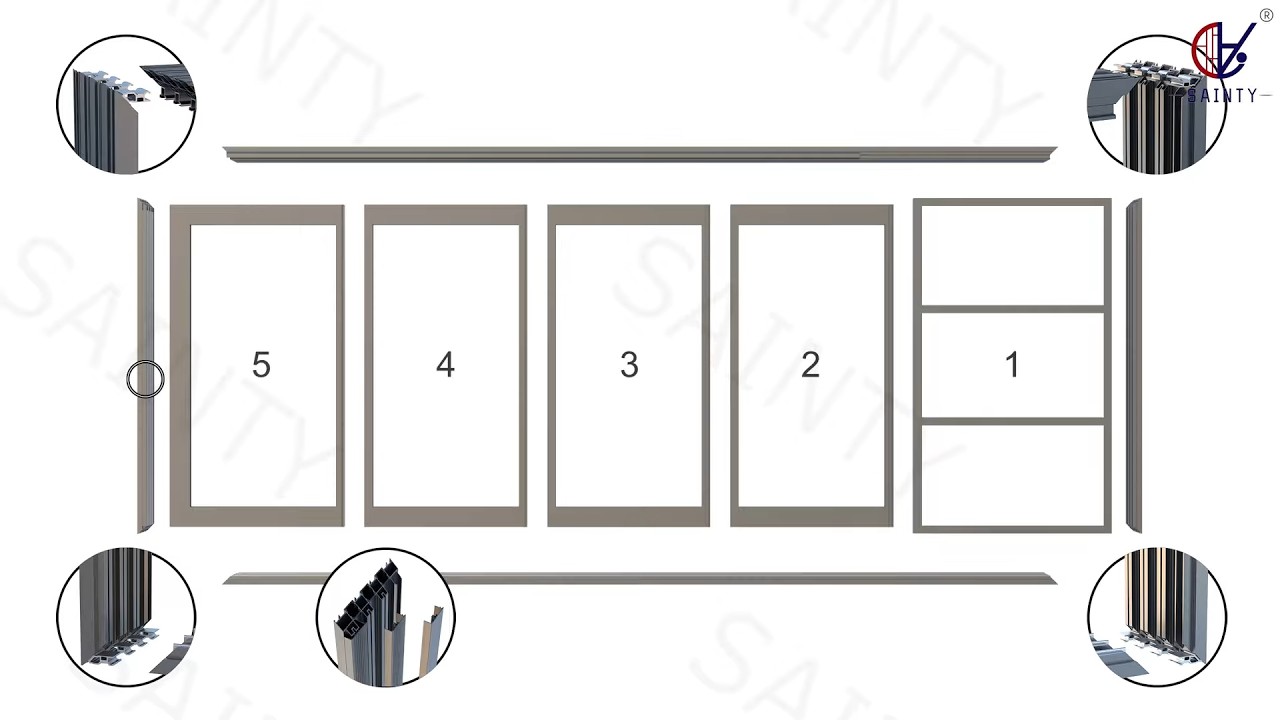

Watch: SAINTY™ Thermally Broken Aluminum Sliding Doors Advanced Energy Efficiency
- Precision machining of 6063-T5 aluminum profiles featuring a 24mm PA66 GF25 thermal break to minimize heat transfer.
- Installation of Triple-Pane Insulated Glass (5+12A+5+12A+5) and EPDM gaskets to achieve a 0.25 U-Factor for New York climates.

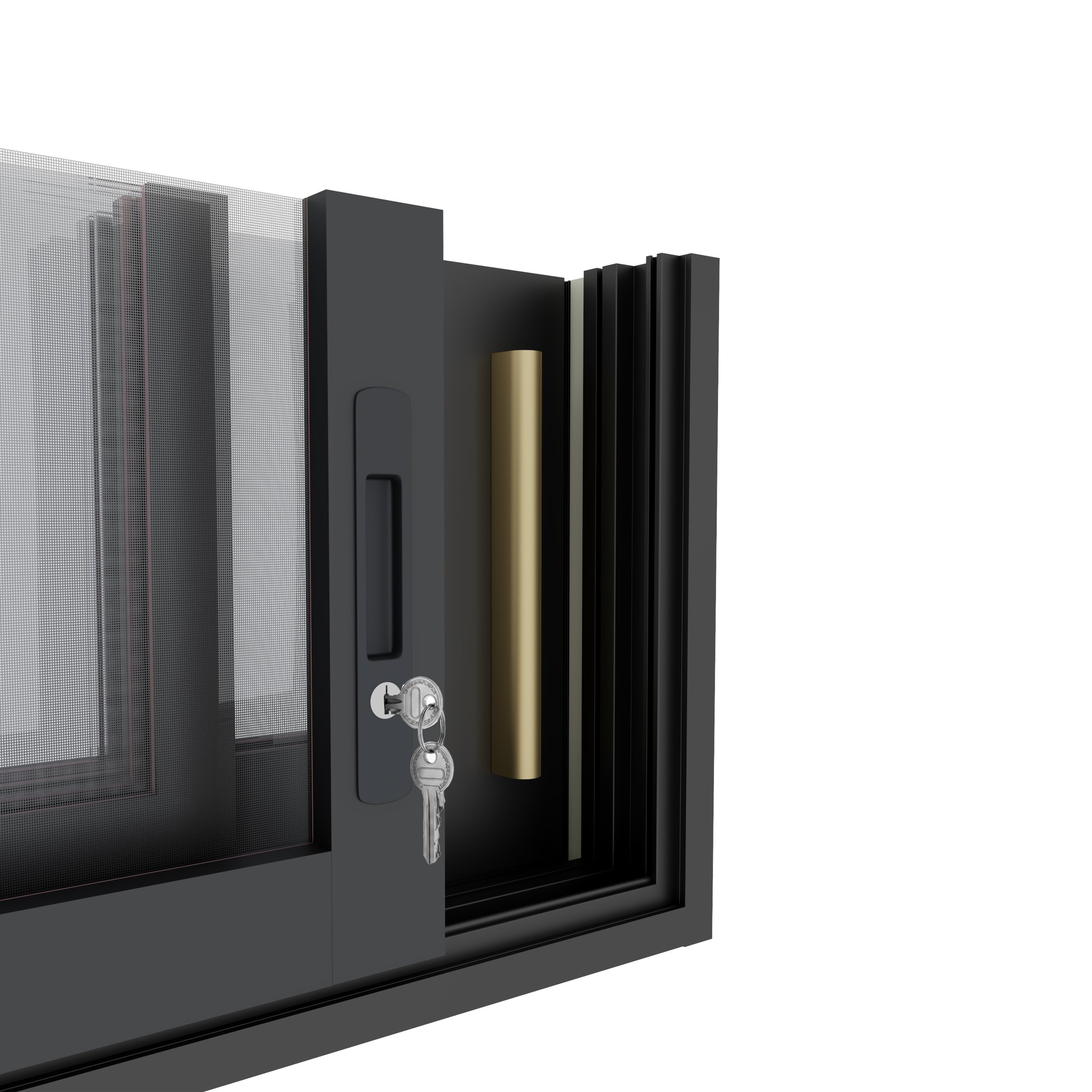

- Demonstration of the heavy-duty multi-point locking system and stainless steel 304 rollers for smooth operation and DP50 wind load resistance.
Key Moments: 00:00 – Thermal break profile assembly and insulation|00:45 – Triple-pane glazing and airtight sealing process|01:30 – Multi-point hardware stress test and final inspection
Installation Support
DIY-friendly: owners and contractors get 1-on-1 factory technical support.

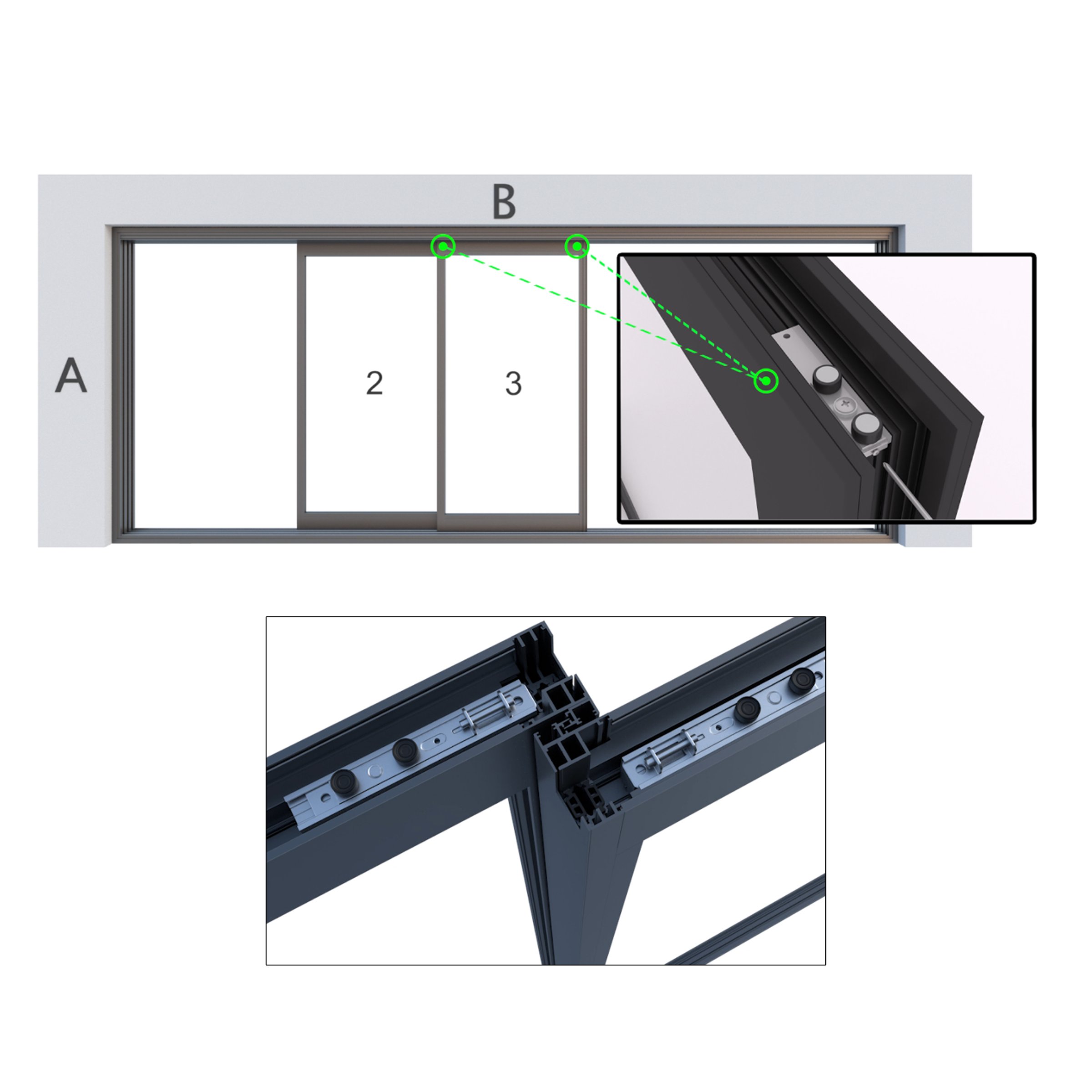

ProSill™ installation for SAINTY sliding doors requires precise leveling of the sill track to ensure weep holes function at the 720 Pa water penetration resistance rating. Both the fixed and sliding panels must be adjusted for lateral stability via the top guide rollers to eliminate wobble and ensure the multi-point lock engages smoothly.
Installers should utilize high-density shims at the jambs and head, followed by backer rod and high-grade sealant to maintain the air infiltration rating of 0.06 cfm/ft².
ProSill™ Installation Support Ecosystem
DIY Installation Guide4K videos, section drawings & hardware listCertified InstallersMatch with a ProSill™ certified local installerProSill™ AcademyStandardized tutorials & certification for every SAINTY systemTroubleshooting LibraryReal on-site fixes with fast engineer replies
Learn More About ProSill™Certifications
- ACOUSTICAL PERFORMANCE TEST REPORT
10-Year Warranty
Structural Warranty
SAINTY provides a 10-Year Structural Warranty on all aluminum frames and a 5-year warranty on SS304 hardware components, ensuring long-term reliability for New York residential house installations under AAMA 2604 coating standards.
Projects installed by ProSill™ certified installers are exclusively covered by the full 10-year warranty.
Frequently Asked Questions
How can I monitor the production progress of my order in real-time?
Once your CAD drawings are approved, you can log into the SAINTY platform to follow our 11-step manufacturing pipeline, view live site photos, and track shipping status — from material preparation and factory production through loading inspection, ocean freight, customs clearance and jobsite delivery.
What does SAINTY's 11-step order tracking process include?
The pipeline covers: CAD drawing approval, material preparation, profile machining, factory production, glazing & hardware installation, quality inspection, protective packing, loading inspection, ocean freight, customs & delivery, and jobsite delivery. Every milestone is documented with photos in the SAINTY app.
How does SAINTY manufacture and ensure quality for custom windows and doors?
Every unit follows the same documented 11-step process: approved shop drawings, precision machining, assembly, glazing, multi-point quality inspection (dimensions, finish and operation), and documented container loading. Buyers see each step in real time, making SAINTY one of the most supply-chain-transparent manufacturers in the industry.
What acoustic rating do these sliding doors provide for urban environments?
SAINTY soundproof sliding doors achieve an STC acoustic rating between 32 and 42. By utilizing triple-pane insulated glass units (5mm+12A+5mm+12A+5mm) and EPDM gaskets, these units effectively dampen high-frequency street noise common in New York residential zones, tested to ASTM E90 standards.
Are these sliding doors compliant with New York energy codes?
Yes, these units are rated per NFRC 100-2020 with a U-Factor of 0.28. This performance exceeds the prescriptive requirements for New York climate zones, featuring a SHGC of 0.22 to minimize solar heat gain while maintaining high visible transmittance between 0.40 and 0.65.
Do SAINTY thermally broken aluminum sliding doors comply with New York energy code requirements?
Yes. SAINTY Thermally Broken Aluminum Sliding Doors units are fully compliant with New York energy code requirements, achieving a certified U-Factor of 0.30 and an SHGC of SHGC 0.22 when tested under NFRC 100-2020 and NFRC 200-2020 procedures. Performance is verified on AAMA/WDMA/CSA 101/I.S.2/A440 tested assemblies, and the NFRC label certificate is supplied with every order for permit submission.
Get a quote for this product
Send your sizes and we will reply with pricing, drawings, and a live 11-step production timeline inside the SAINTY app.
Request a quote
